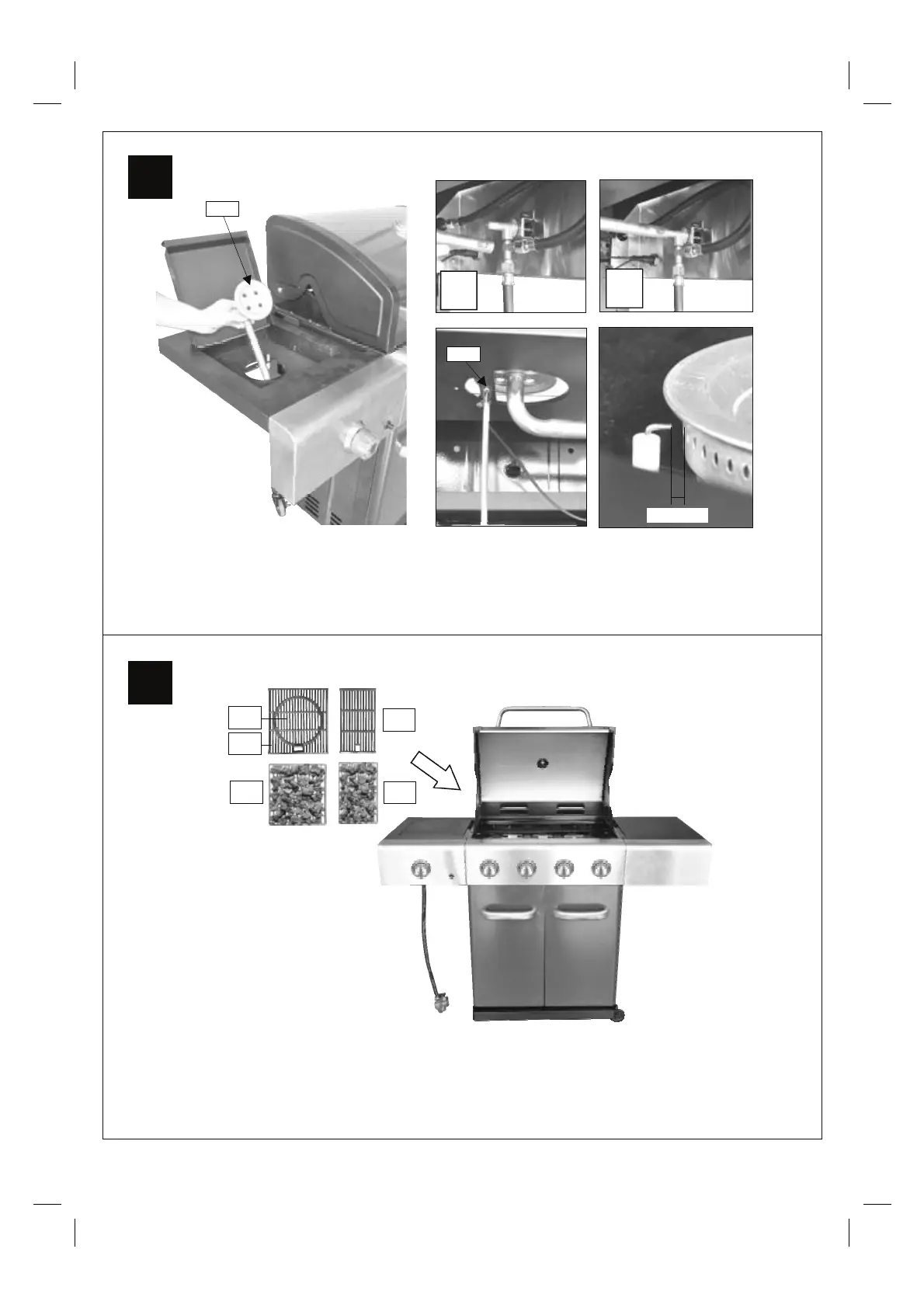

Feed the venturi tube of the Side Burner (C8) through the hole in bottom of the side burner
shelf, and fix it onto side burner shelf using a M4x10 Bolt (D5) as shown. Make sure that the
end of venturi tube is set over the gas outlet of side burner valve.
Remove the plastic wrap from the Large Lava Rock in Basket (B6) and Small Lava Rock in
Basket (B7), Lay the lava rock carefully into the body ensuring it lies level within the body.
Lay the Grill With Hole (B8) and Round Grill (B9), Cooking Grill (B10) into place.
C9
D5
B6
B10
B7
B9
B8
3-5mm
