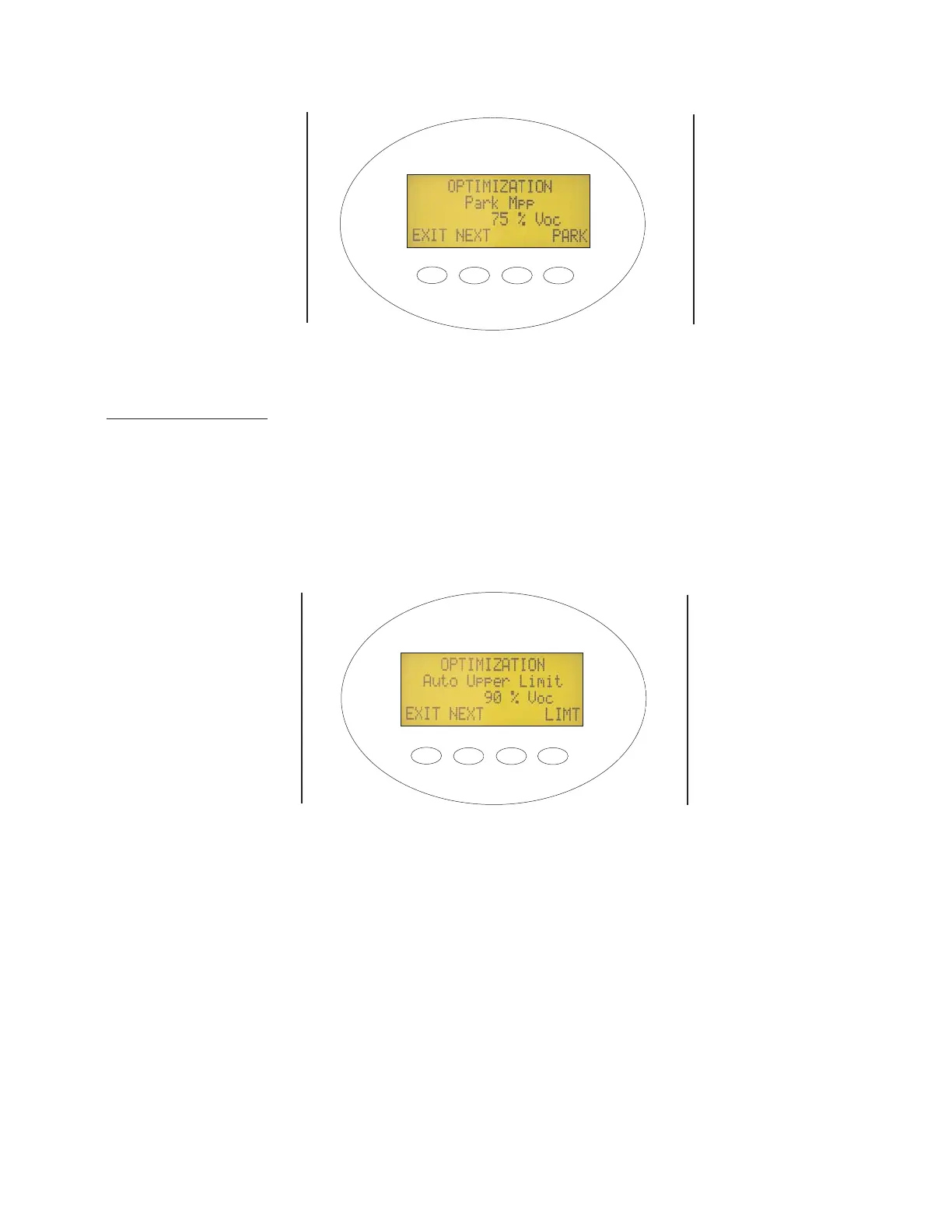

Figure 18 - Park Mpp
Figure 19 - Auto Upper Limit
Park Mpp (% Voc): Picks the PV panel operating point voltage for U_pick MPPT mode
and other conditions where the MX60 needs to run at a voltage that is a fixed percentage
of the last measured Open Circuit Voltage. This is not normally a critical exact value. An
MPP of 77 % of Voc is typically very close to the maximum power point of most panels.
Auto Upper Limit (Auto Sweep mode only): If an Autosweep finds a Maximum Power
Point voltage exceeding this voltage, the MX60 will revert to the Park Mpp instead. 90 %
Voc is the default upper limit value and should not normally need to be changed. If an
array has multiple power point "humps", then adjusting this setting may help keep the
power point within sane MPP panel voltage limits. Adjustable values are 90% 85 % and
80 % of Voc.
