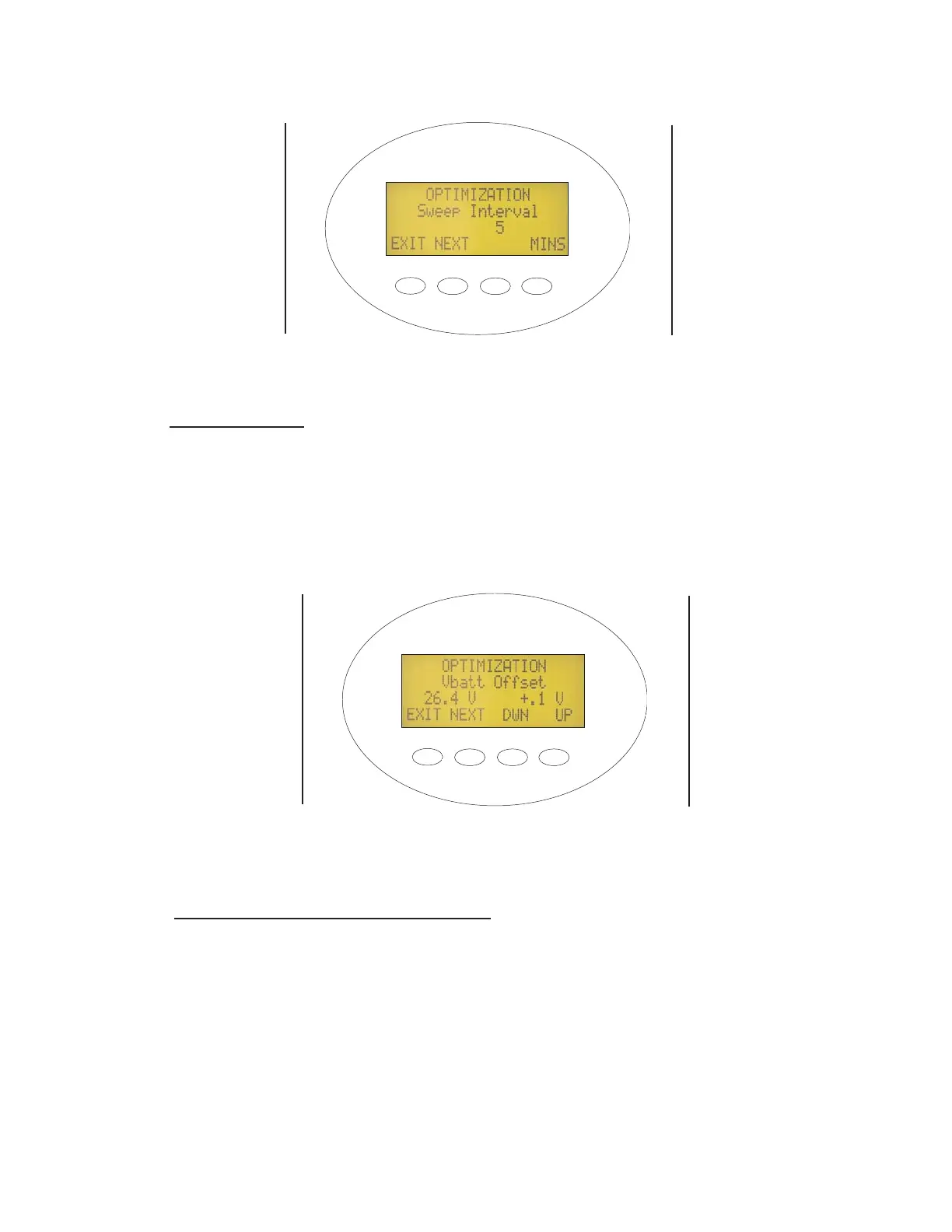

Figure 20 - Sweep Interval
Figure 21 - Vbatt Offset
Sweep Interval: Selects how often the MX60 does an MPP minisweep in
AutoSweep mode, or how often it acquires a new Voc in U_Pick %Voc mode.
Adjustable from 1 to 9 minutes.
Vbatt Offset (Battery Voltage offset): Adjusts the Battery Voltage reading
and battery voltage feedback of the MX60. Adjustable between plus .5 volts
and minus .5 volts, this setting is used to improve the accuracy of the MX60s
battery voltage readings. This value is initially set at the factory for best accura-
cy and is not changed when resetting the MX60 to another battery system volt-
age.
16
