2 Installation
2.1 FlashBack-3 Single
FlashBack-3C is compatible with Ovation’s I-Conex interconnection system. I-Conex includes
a selection of cable assemblies that interface to commonly used power, video and audio
connectors (see Figure 4), as well as flying leads for more complex installations. The
connections to the rear of FlashBack-3 are colour coded to indicate their function as shown
in Figure 2, below.
CAUTION► Only connect cables with the same colour code to each input. Figure 3 shows
a basic FlashBack-3C Single installation.
TIP► Any cable may be lengthened by the in-line extension cables provided.
On the FlashBack-3C Single, the brown / blue connector has a dual function of either
Ethernet or RS232 interface, which is auto-switched depending upon which cable type is
connected (feature enabled from FB3 serial number 3751 onwards).

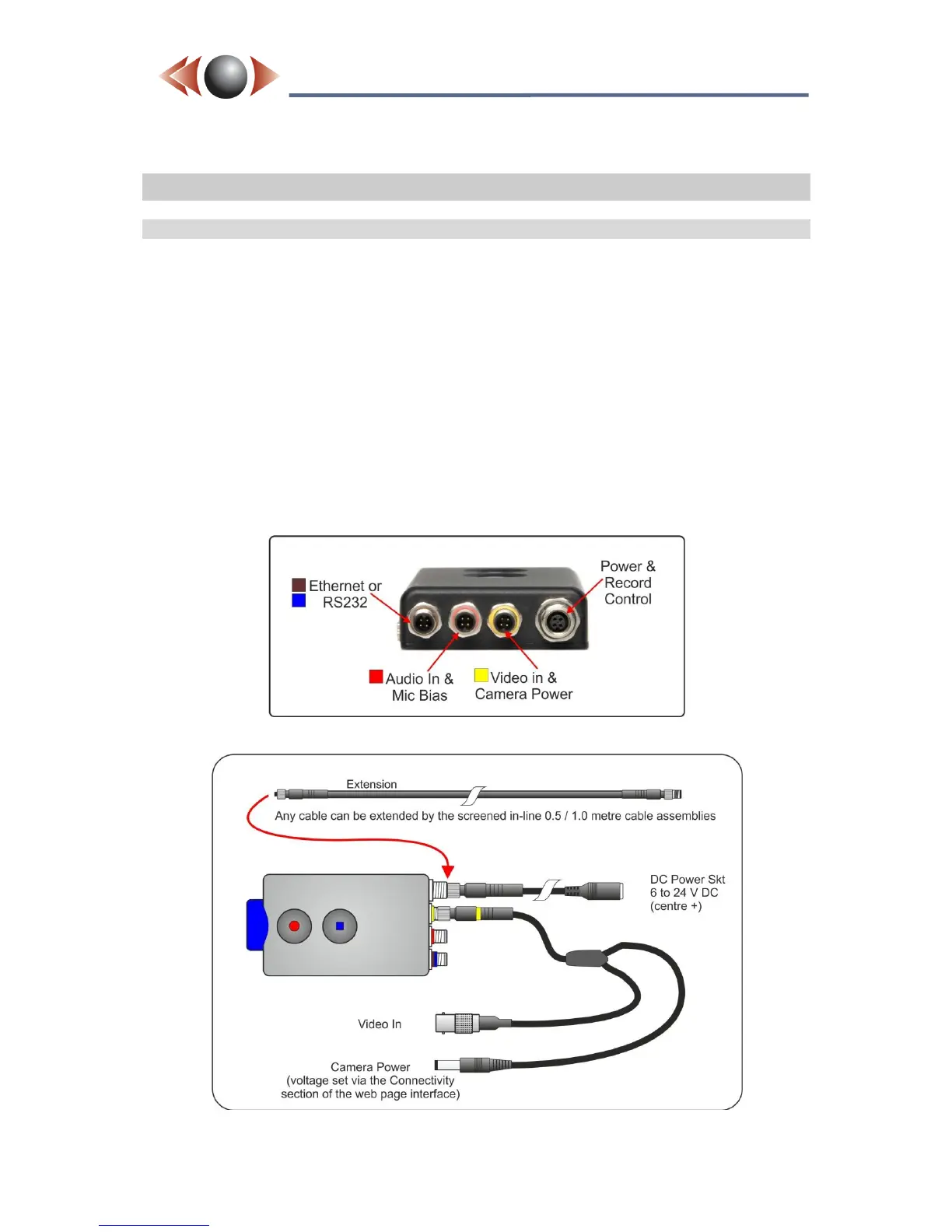

Figure 2: FlashBack-3C Single Rear Panel Connectors
Figure 3: Example Cable Installation
