Overhead door INFINITY 2000 - Wire Door Lock

11

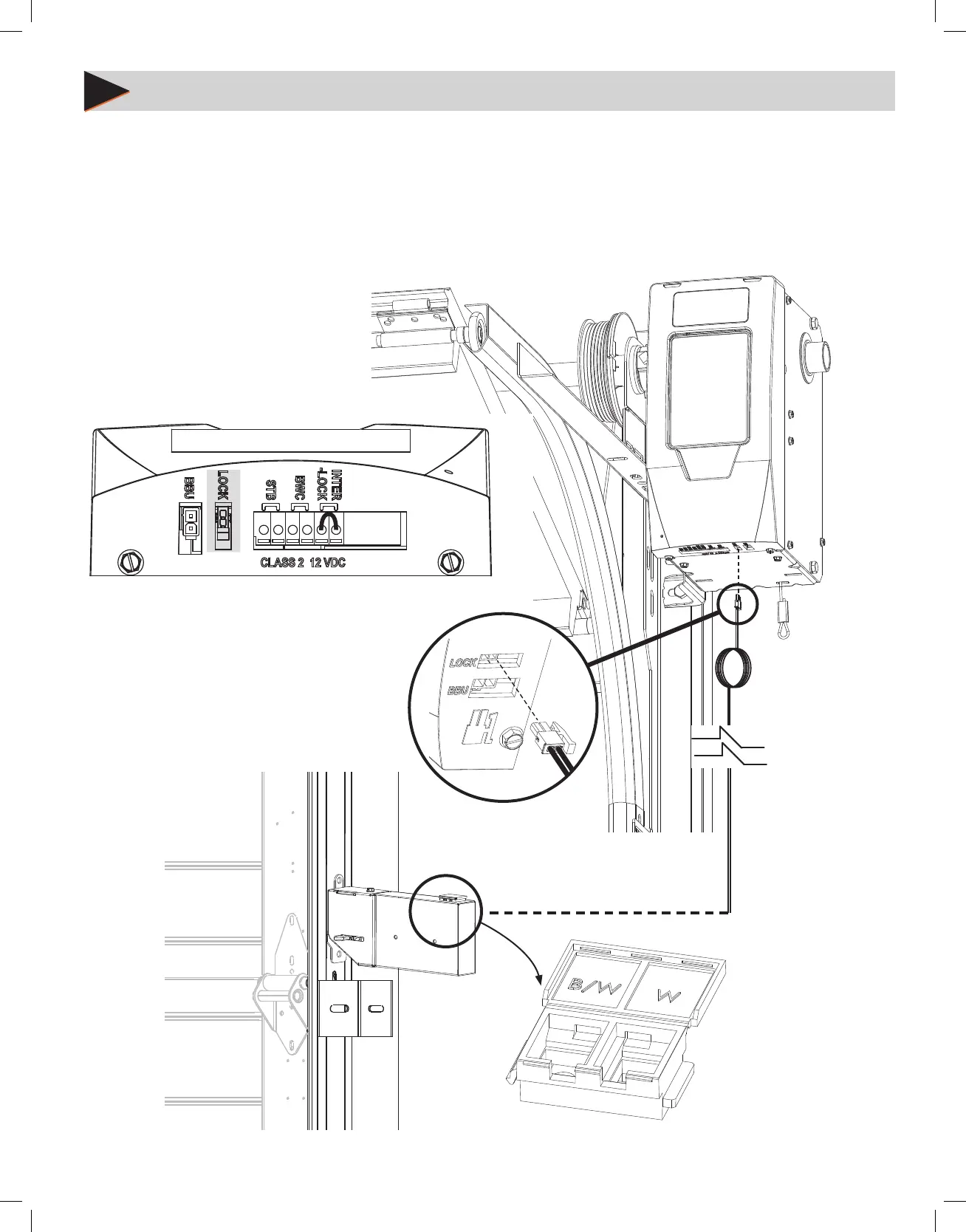

1. Plug door lock harness into the LOCK plug on bottom of opener. Insert plug in correct direction (SEE INSET)
2. Run wire down the wall to the DOOR LOCK and secure with supplied wire staples. NOTE that DOOR LOCK
wires are polarity sensitive.
3. Cut o excess wire, strip 1/4” of insulation and attach to bottom connectors on DOOR LOCK.
4. Install WHITE wire to W terminal and STRIPED wire to B/W terminal.
Wire Door Lock
WIRE THE OPENER
ALL WIRE CONNECTIONS LOCATED AT BOTTOM OF OPENER
4
Door Lock Plug
Door Lock Wire Connections
