Overhead door INFINITY 2000 - Programming the Down Limit; Down Limit Safety Warnings; Engaging Door for Limit Programming; Programming the Down Limit Steps

18
WARNING
!
• Make sure doorway is in full view and clear of obstacles and
people to avoid injury or property damage.
• DO NOT operate this unit from the wall control before LIMITS are
set. Severe damage to the opener could occur.
• DO NOT set limits with Battery Backup attached. AC power
MUST be connected to the opener while setting limits for proper
operation.
AVERTISSEMENT
!
• S’assurer que le passage de la porte est visible et dégagé, à savoir
sans obstacles ni personne an d’éviter toute blessure potentielle
ou dommage matériel.
• NE PAS utiliser cette unité avec la console murale avant d’avoir
réglé les LIMITES. L’ouvre-porte pourrait subir de sérieux
dommages.
• NE PAS xer de limites en mode batterie de secours.
L’alimentation CA DOIT être branchée sur l’ouvre-porte, pendant
le réglage des limites, pour assurer un bon fonctionnement.
NOTE: Door MUST be engaged to the
opener prior to programming. Door should rest
somewhere between full open and closed. DO
NOT START WITH DOOR FULLY OPEN OR CLOSED.
!
1. Press and hold the DOWN arrow button on the
opener for 2-5 seconds.
• The LONG LED will turn BLUE. Release button.
• The
LONG LED will then ash BLUE.
2. Press and hold the DOWN arrow button until door
is fully closed.
Use both UP and DOWN buttons to adjust close travel
as necessary.
Door should rest on the oor until the weather strip is
compressed enough to seal along the width of the door.
Damaged doors or uneven oors may not seal properly.
Repair these conditions to achieve a proper seal. DO NOT
compress seal so much that the door will bend or buckle.
3. Press and release the SET/PRGM button
Both LEDs will ash BLUE then go out.
The DOWN limit is now programmed.

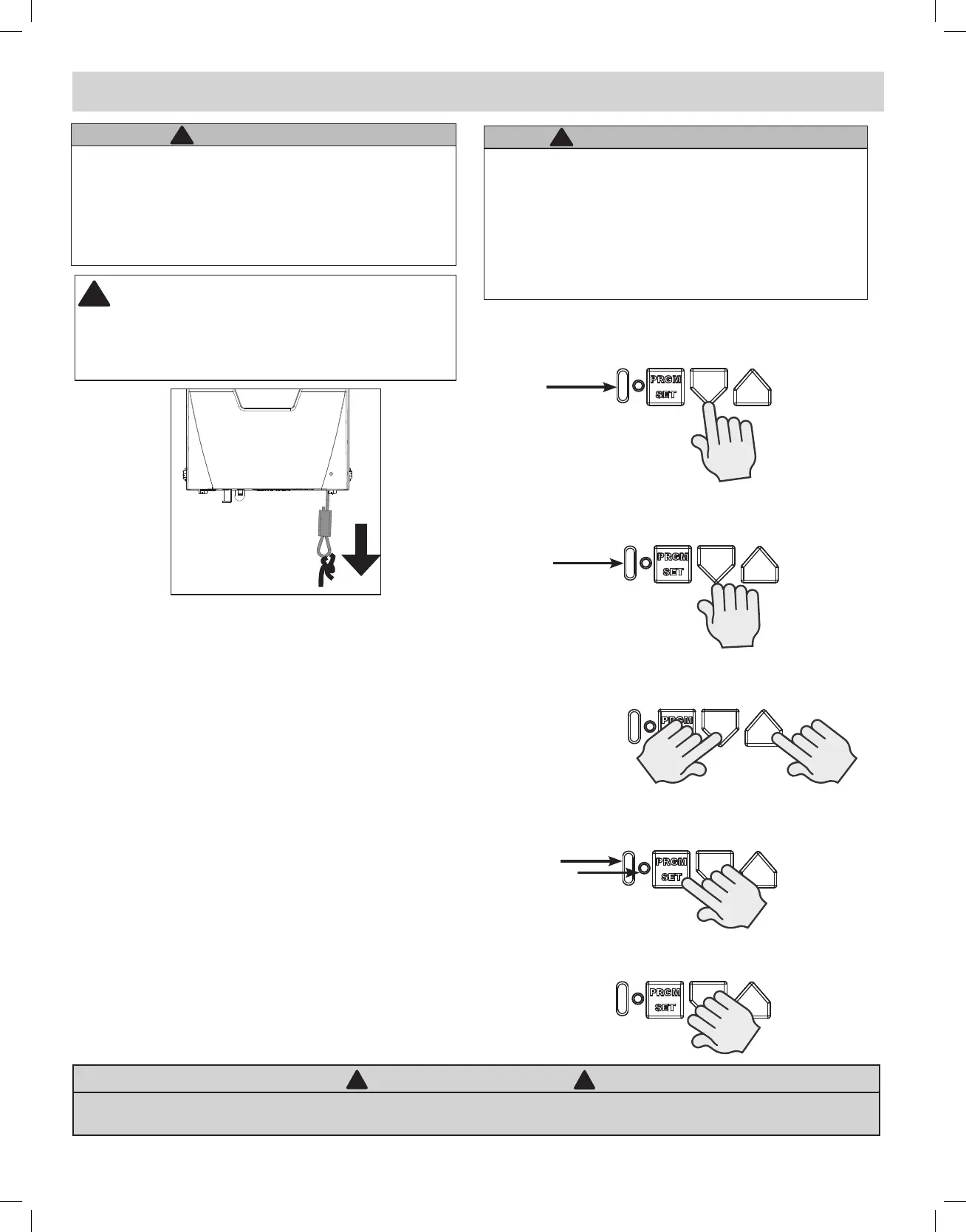

Programming DOWN Limit:
Flashing Blue
RELEASE
Steady Blue
HOLD
UNTIL
LED
Lights
1-2. Enter Programming Mode
3. Adjust Door Position
4. Lock Programming
Flashing Blue
PRESS
&
RELEASE
PROGRAMMING THE DOWN LIMIT
TO ENGAGE DOOR
TO OPENER:
Pull release cable and
release to retract cable
and engage opener.
IMPORTANT NOTICE
IF DOWN LIMIT SETTING IS ALTERED, ALL FOLLOWING STEPS ON PAGES 19 THROUGH 20 MUST BE
PERFORMED TO LOCK IN THE FORCE PROFILE FOR PROPER DOOR OPERATION.
!
!
