OWC Data Doubler Installation
9

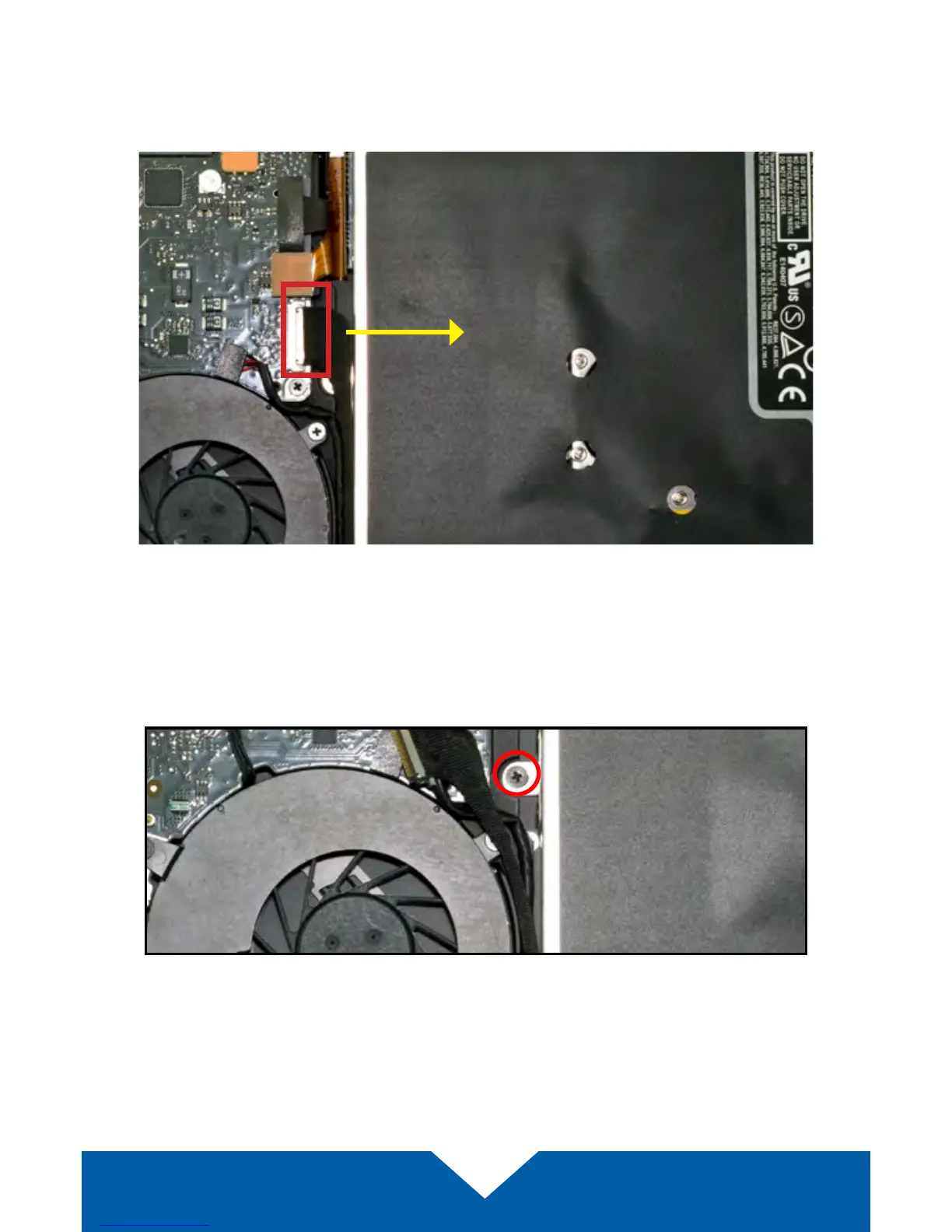

9. Along the left side of the optical drive, between the fan and the orange
ribbon cable there is a black cable attached to the logic board. Disconnect
the cable by sliding it in the direction shown; this will reveal a screw that was
hidden beneath the cable. Caution: this cable is easily damaged.
10. Next, remove the Phillips screw that was obscured by the ribbon cable and
set it aside; this screw is used during the reassembly process.
