OWC data doubler Installation Guide

OWC Data Doubler Installation
13
18. Carefully place the assembled Data Doubler and attached drive into the
optical bay, being careful not to damage any loose cables or connectors.

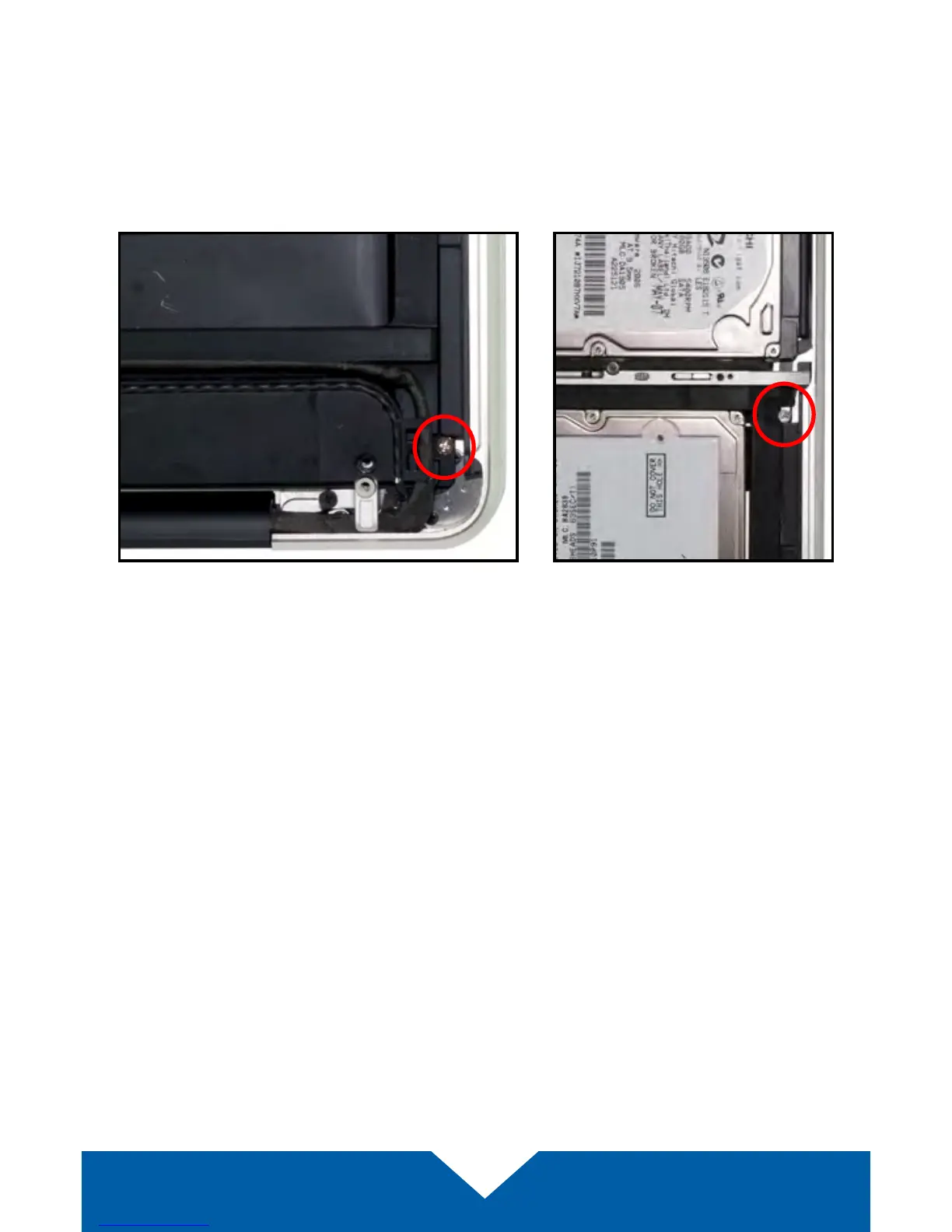

19. Take the two of the longer Phillips screws included in the Data Doubler
Kit and ax them in the same location (shown below in red) where you
removed the two shorter screws in Step 8.
20. Carefully reseat the speaker housing and cable from Step 12, then ax
the screws you removed that same step. Make sure each screw is axed
in its original location.
21. Ax the screw you removed in Step 10 that secures the optical drive
bracket to the laptop chassis.
22. Carefully reconnect the ribbon cable you disconnected in Step 11, then
reconnect the cable you disconnected in Step 9.
23. If you disconnected your battery in Step 1 or 5, reconnect it now.
