OWC Data Doubler Installation
14

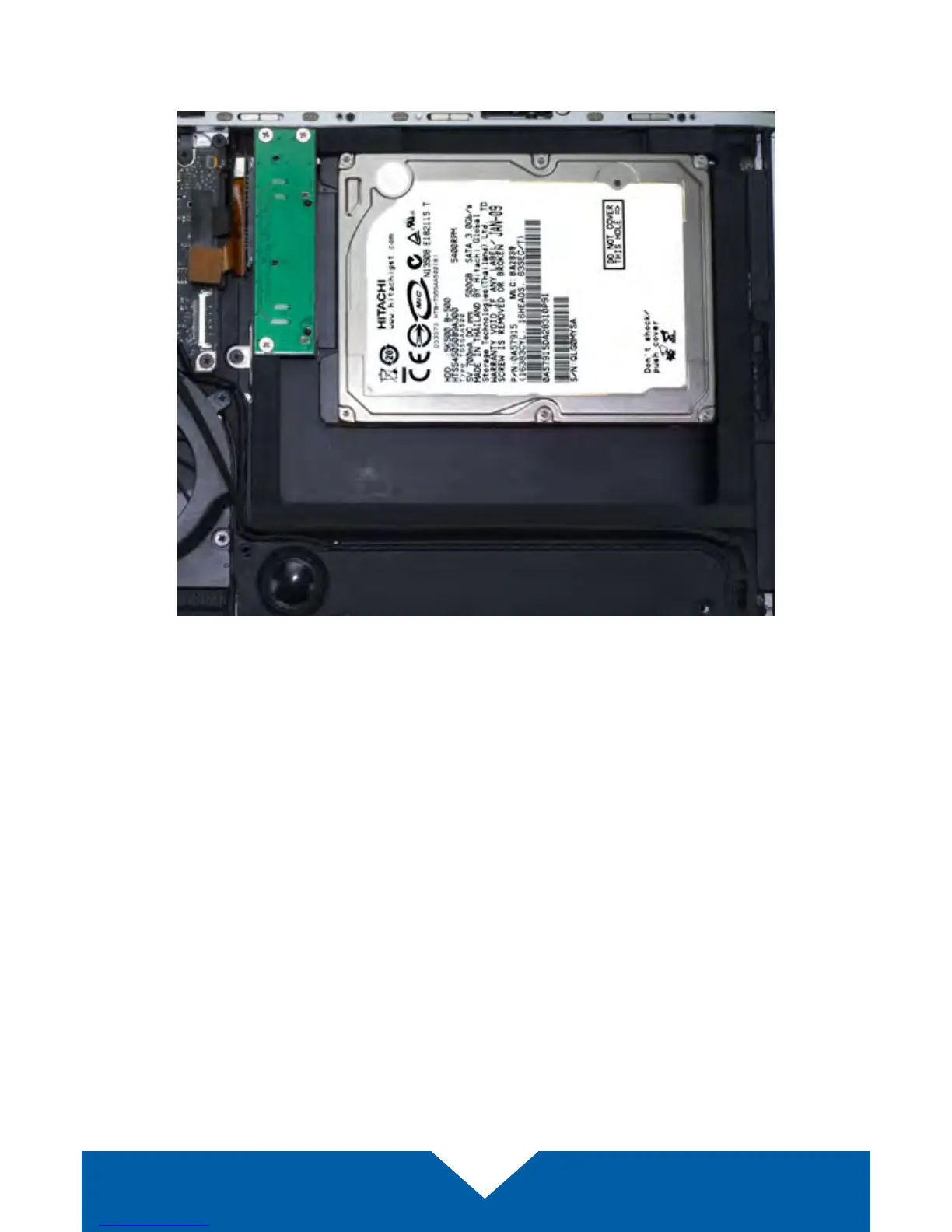

When you’re nished you should see a setup similar to the one below. Note:
this photo shows an earlier Data Doubler model with black aluminum.
24. Carefully replace the bottom cover, snapping it back into place. If your
laptop has a removable battery, ax the eight screws that you removed
from the cover in Step 2. If it does not have a removable battery, there will
be 10 screws to be axed (see Step 4). Regardless of battery type, make
sure the three long screws are placed in the same screw holes where they
were originally installed.
The installation process is complete. Proceed to Section 3.1 for additional
support information.
