OWC Data Doubler Installation
40
16. Carefully place the assembled Data Doubler and attached drive into the
optical bay, being careful not to damage any cables or connectors. Next,
take two longer Phillips screws from the Kit and ax them in the same
location where you removed two shorter screws in Steps 9 and 10.

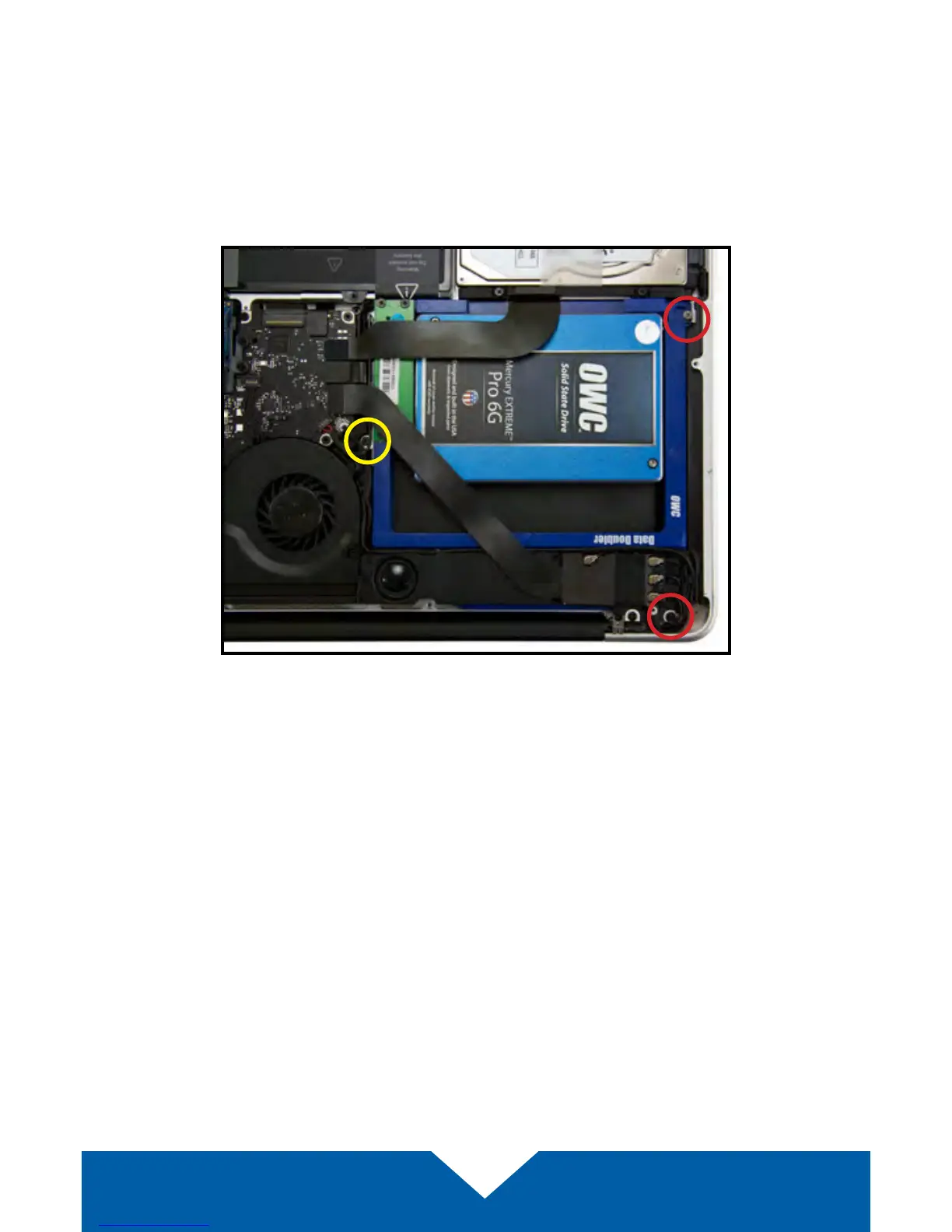

17. Next, ax the screws that you removed in Step 7 to the bracket you
attached to the Data Doubler in Step 14 (shown below in yellow).
18. Reseat the speaker housing and cable from Step 8 then ax the screws
you removed in that step. Note: the longer screw must go into the left-
most screw hole on the housing.
19. Carefully re-insert the cable connectors you disconnected in Step 6,
then reconnect the ribbon cables you disconnected in Step 5. If you
disconnected your battery in Step 3, reconnect it now.
20. Carefully reseat the bottom cover, snapping it back into place. Ax the
10 Phillips screws that were removed in Step 1; make sure the three long
screws are placed in their original locations.
The installation process is complete. Proceed to Section 3.1 for additional
support information.
