OWC Data Doubler Installation
43

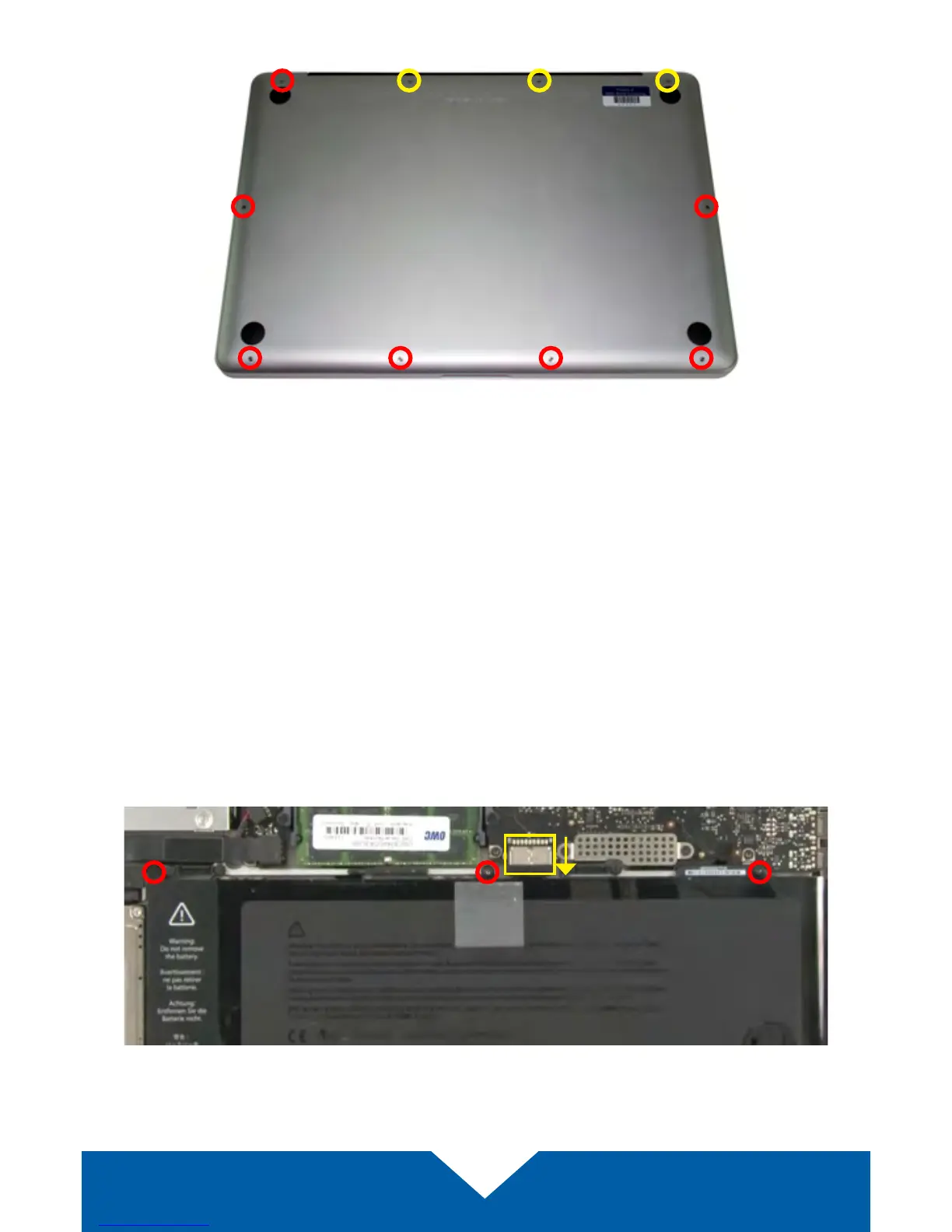

4. Remove the 10 Phillips screws that secure the bottom cover to the chassis.
Note: the three right-most screws along the top edge (shown in yellow) are
longer than the rest; install them in the same screw holes at the end of the
process. The rest can be used interchangeably in the remaining screw holes.
5. Once the screws are removed, place your îngers along the bottom cover
near the black vent, then lift the bottom cover. There are two snap clips
attached to the cover that will release when you do this. Set the cover aside.
Recommended: before moving to the next step, use a Torx T6 driver to
remove the three battery screws shown below in red, then pull the battery
tab so the battery stands up in the bay. Next use the nylon pry tool to gently
push the connector towards the battery bay and out of its slot.
