OWC Data Doubler Installation
42
2. Use the pull-tab on the battery to remove it from the laptop, then set it aside.

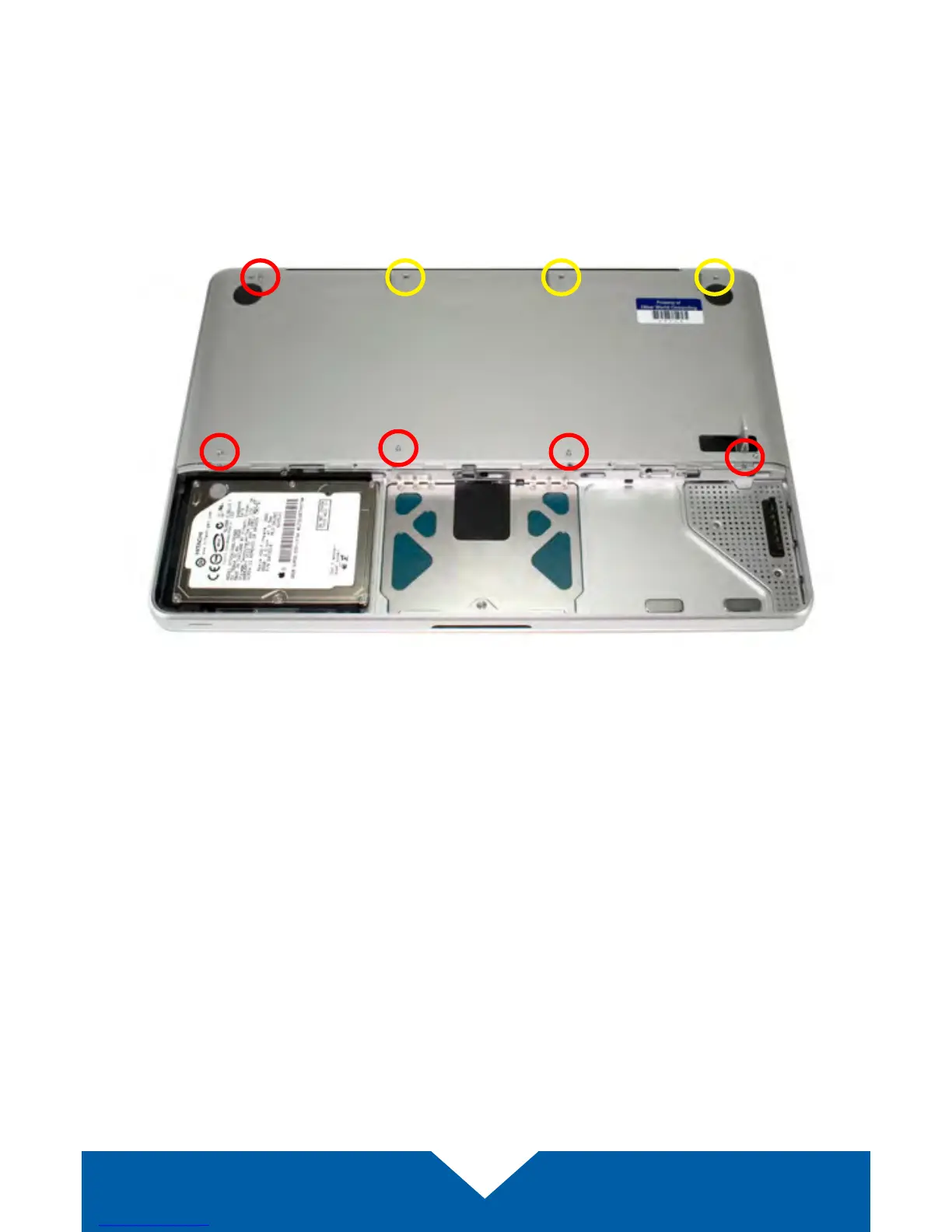

Next, remove the eight Phillips screws that secure the bottom cover to the
chassis (highlighted below).
Note: the three right-most screws along the top edge (shown in yellow)
are longer than the rest; install them in the same screw holes at the end of
the process. The rest can be used interchangeably in the remaining screw
holes.
3. Once the screws are removed, place your ngers on the bottom cover,
near the black vent opposite the battery compartment, then lift the bottom
cover. There are two snap clips holding the cover in place; they will release
when you lift the cover. Set the bottom cover aside. You do not need to
remove the SATA drive.
Proceed to Step 5.
