OWC Data Doubler Installation

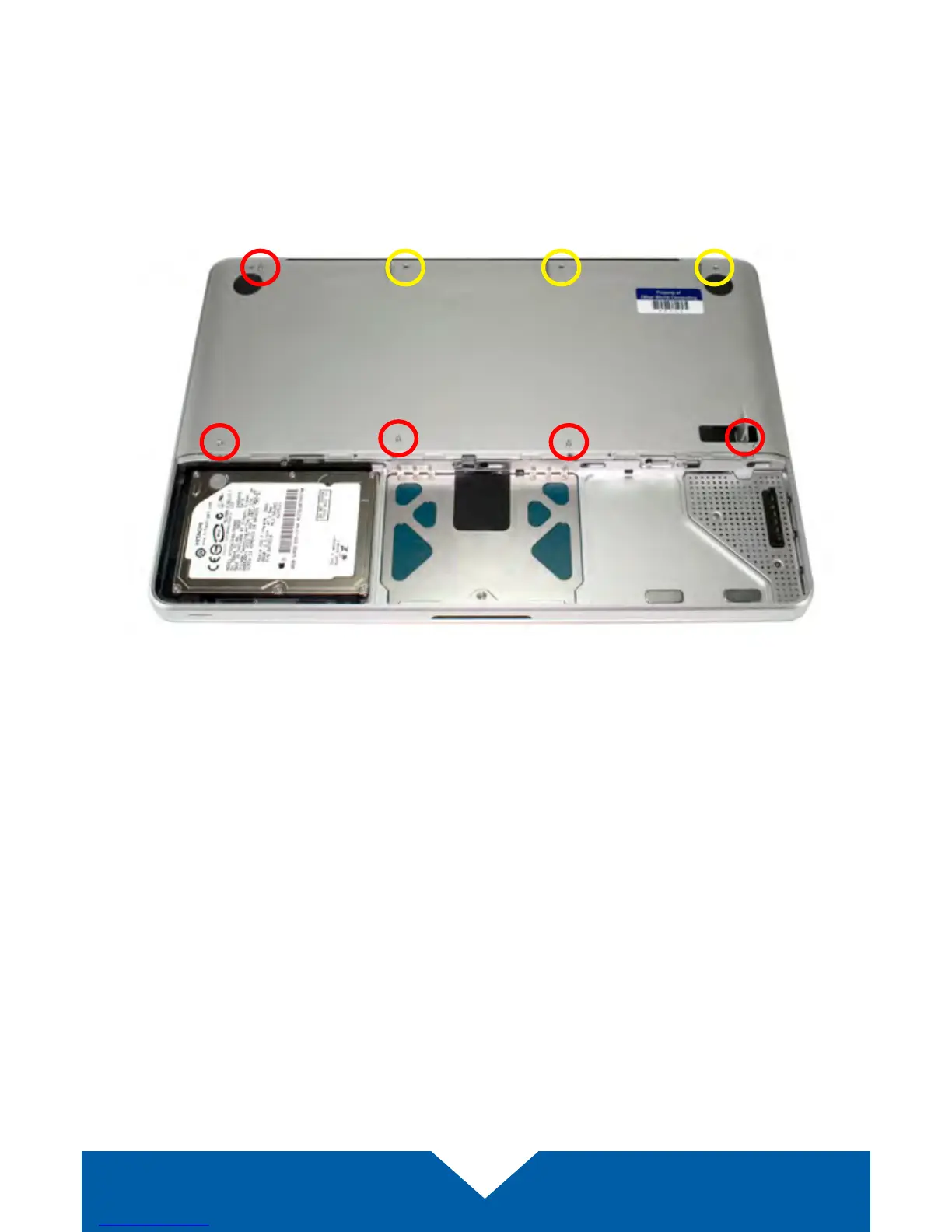

2. Next, remove the eight Phillips screws that secure the bottom cover to the

chassis (highlighted below).

Note: the three right-most screws along the top edge (shown in yellow)

are longer than the rest; install them in the same screw holes at the end of

the process. The rest can be used interchangeably in the remaining screw

holes.

3. Place your ngers on the bottom cover near the black vent opposite the

battery compartment, then lift the bottom cover. There are two snap clips

holding the cover in place; they will release when you lift the cover. Set the

bottom cover aside. You do not need to remove the SATA drive.

Proceed to Step 6.
