OWC Data Doubler Installation

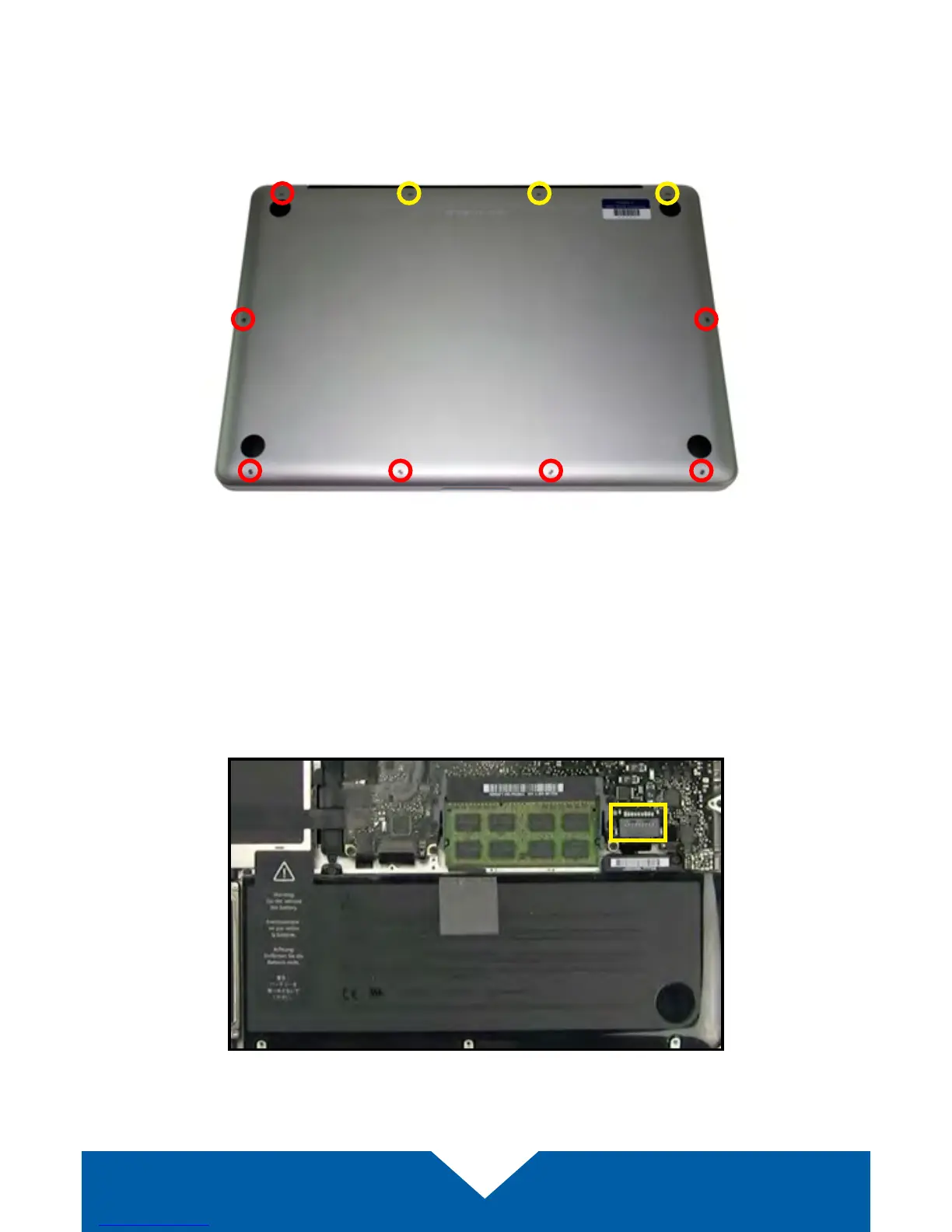

4. Remove the 10 Phillips screws from the bottom cover. Note: the three right-

most screws along the top edge (shown in yellow) are longer than the rest;

install them in the same screw holes at the end of the process. The rest can

be used interchangeably in the remaining screw holes.

5. Once the screws are removed, place your ngers along the bottom cover

near the black vent, then lift the bottom cover. There are two snap clips

attached to the cover that will release when you do this. Set the cover aside.

Recommended: before continuing, use the nylon pry tool to gently lift the

battery connector (highlighted in yellow) from the logic board.
