OWC Data Doubler Installation

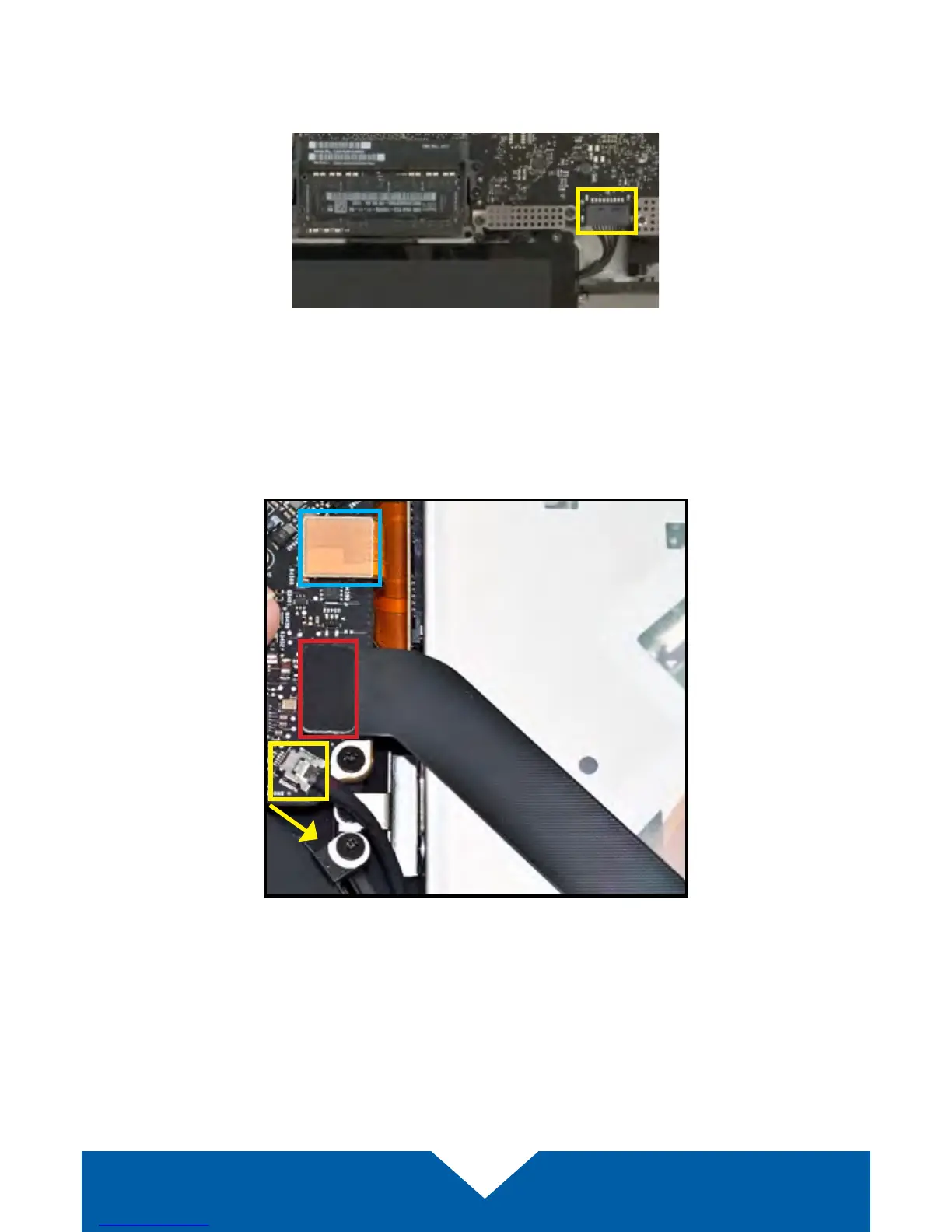

Note: If you are using a MacBook Pro 8,3 your battery connector will look like

the one highlighted below in yellow. Use the nylon pry tool to carefully lift the

connector o the logic board before proceeding.

3. Using the nylon pry tool, disconnect the cable with the silver connector

(shown in yellow) from the logic board by gently applying pressure in the

direction shown below. Note: this cable obscures a screw that will be

removed in an upcoming step. Caution: this cable is easily damaged.

4. Just above the silver connector that was disconnected in Step 3, there is a

black ribbon cable connector (shown above in red). Use the nylon pry tool

to disconnect it from the logic board by applying gentle upward pressure.

5. Use the nylon pry tool to gently lift the orange ribbon cable (highlighted in

blue) from the logic board. Caution: this cable is easily damaged.
