OWC Data Doubler Installation
73
6. Set aside the black cable that you
disconnected in Step 3. Note the metal
bracket that is attached to the optical
drive, helping to secure it in place.
Remove the black Phillips screw (shown
below in red) that holds this bracket in
place. This screw will be used during the
reassembly process.

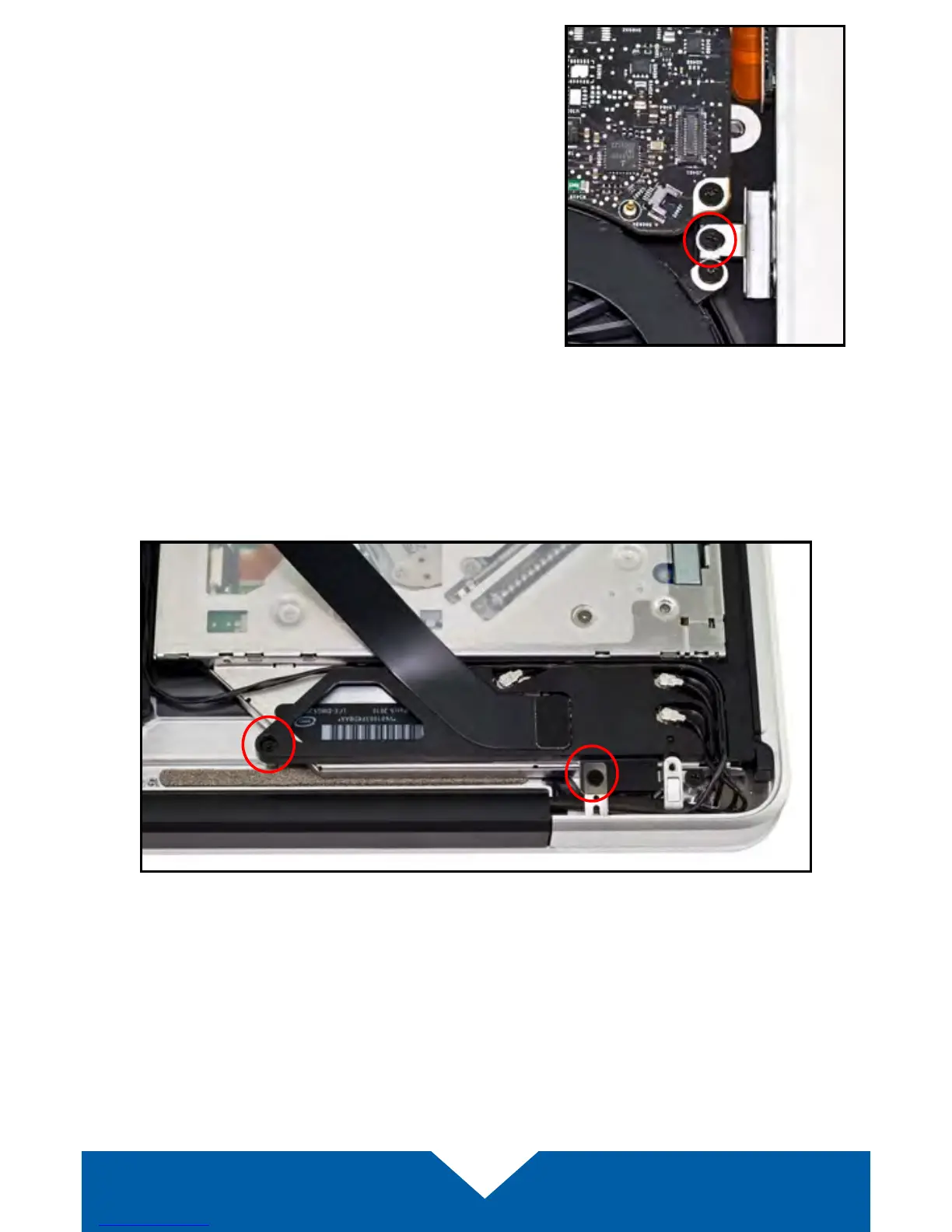

7. At the rear of the optical drive there is an Airport / Bluetooth bracket that
has a exible ribbon cable and three antenna connectors. Remove the two
Phillips screws that are circled in red below. Note: the screw closer to the
corner of the chassis is longer; it needs to be axed in the same location
during reassembly.
8. Gently lift the Airport / Bluetooth bracket up and away from the corner of
the chassis; this will expose a Phillips screw that secures the optical drive to
the chassis. You do not need to disconnect any of the cables. If one comes
loose carefully reattach it now or during reassembly.
