2.Quick Start
A Ampere Current
Ω
Ohm Resistance
Hz Hertz Frequency
% Percent, Duty cycle
F Farad Capacitance
Input terminals

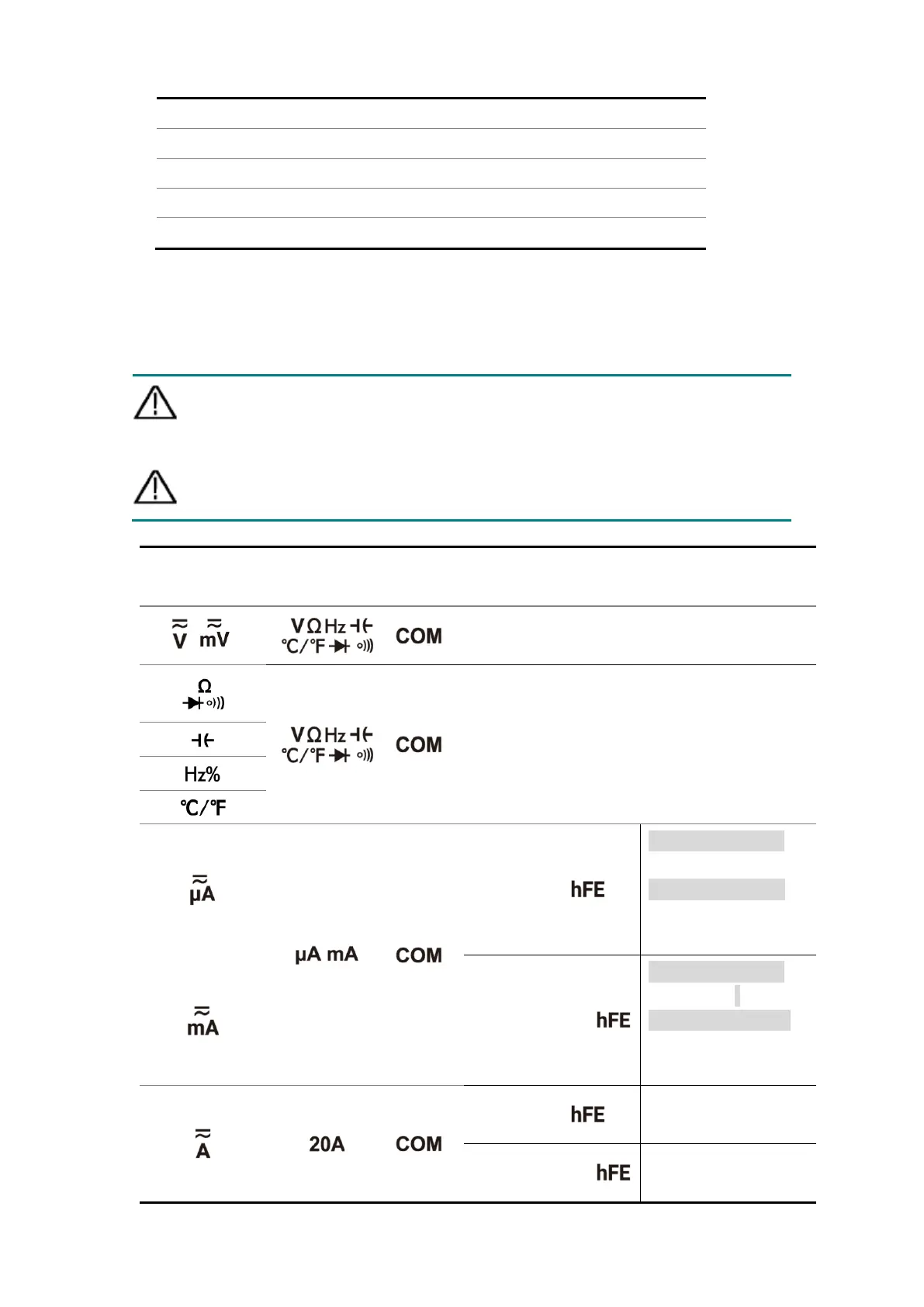

The terminal connections for the different measurement functions of the multimeter are
described in the table below.
Warning:
Before starting any measurement,
observe the rotary switch
position of the multimeter, and then
connect the test leads to the
correct terminals.
Caution
: To avoid damaging the multimeter, do not exceed the rated input limit.
Rotary switch
position
Input terminals Overload protection
( )
750 VAC/1000 VDC
250 VAC/300 VDC
Model with
OW18A/OW18B:
400mA/250V;
OW18D/OW18E:
200mA/250V.
resettable fuse
Model without
OW18A/OW18B:
1A/1000V;
OW18D/OW18E:
0.5A/1000V
fast-acting fuse
Model with
20A/250V,
fast-acting fuse
Model without
15A/1000V,
fast-acting fuse
