3. Quick Start
Introduction to the Structure of the Oscilloscope
This chapter makes a simple description of the operation and function of the front panel of
the oscilloscope, enabling you to be familiar with the use of the oscilloscope in the
shortest time.
Front Panel
The front panel has knobs and function buttons. The 5 buttons in the column on the right
side of the display screen are menu selection buttons, through which, you can set the
different options for the current menu. The other buttons are function buttons, through
which, you can enter different function menus or obtain a specific function application
directly.
7
3
5
4
6
1
2

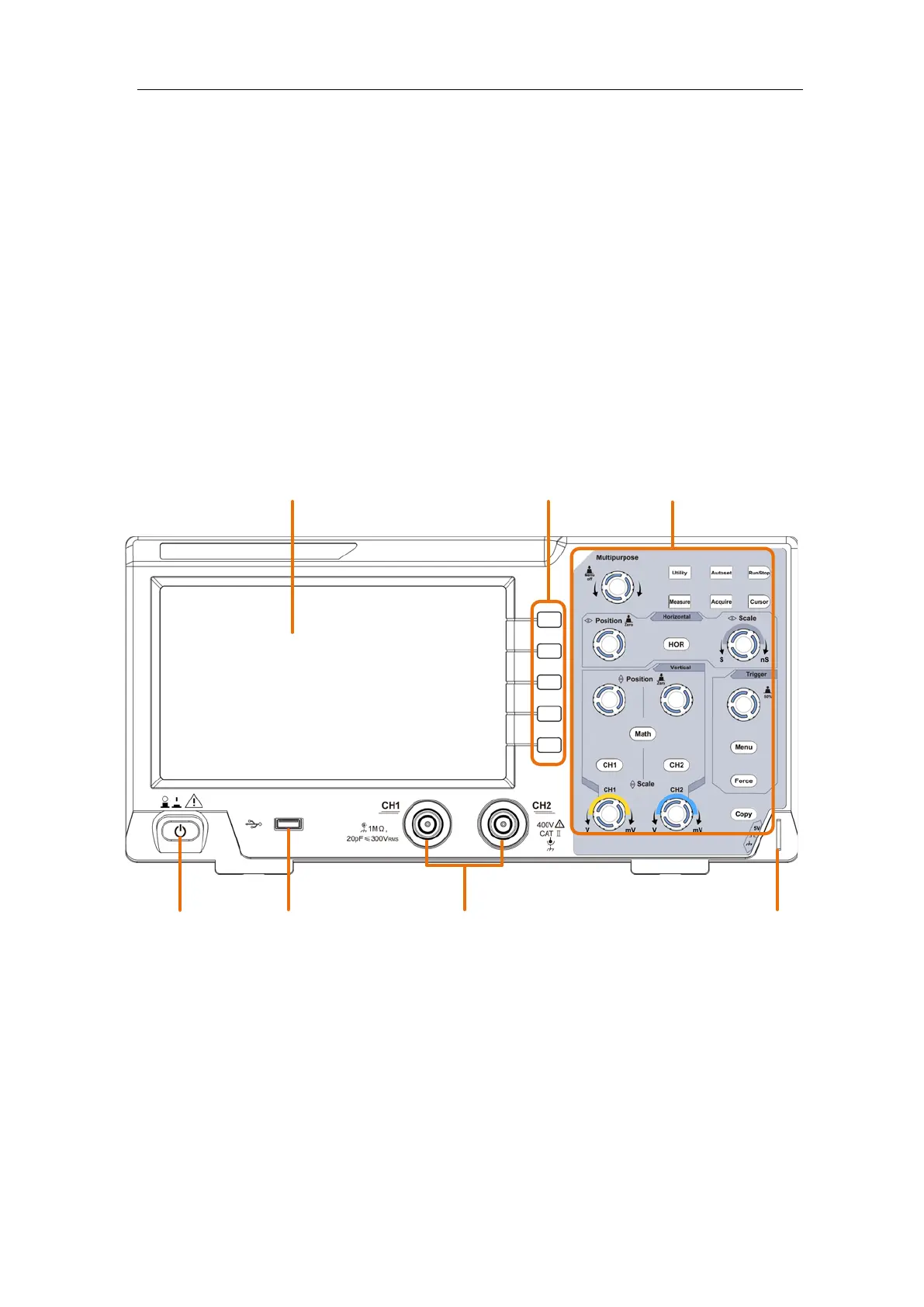

Figure 3-1 Front panel
1. Display area
2. Menu selection buttons: Select the right menu item.
3. Control (button and knob) area
4. Probe Compensation: Measurement signal (5V/1kHz) output.
5. Signal Input Channel
6. USB Host port: It is used to transfer data when external USB equipment connects to
the oscilloscope regarded as "host device". For example: Saving the waveform to USB
flash disk needs to use this port.
7. Power on/off

Owon SDS1102 Specifications

General

Bandwidth	100 MHz
Sample Rate	1 GS/s
Channels	2
Vertical Sensitivity	2 mV/div to 10 V/div
Connectivity	USB Host, USB Device
Trigger Types	Edge, Pulse, Video, Slope, Alternate
Math Functions	+, -, *, /, FFT
Power Supply	100-240VAC, 50/60Hz
Weight	2.5 kg
Display	7-inch TFT LCD
Vertical Resolution	8 bit
Interface	USB, LAN
Input Impedance	1 MΩ ±2%
