52
Oxford Technical Solutions

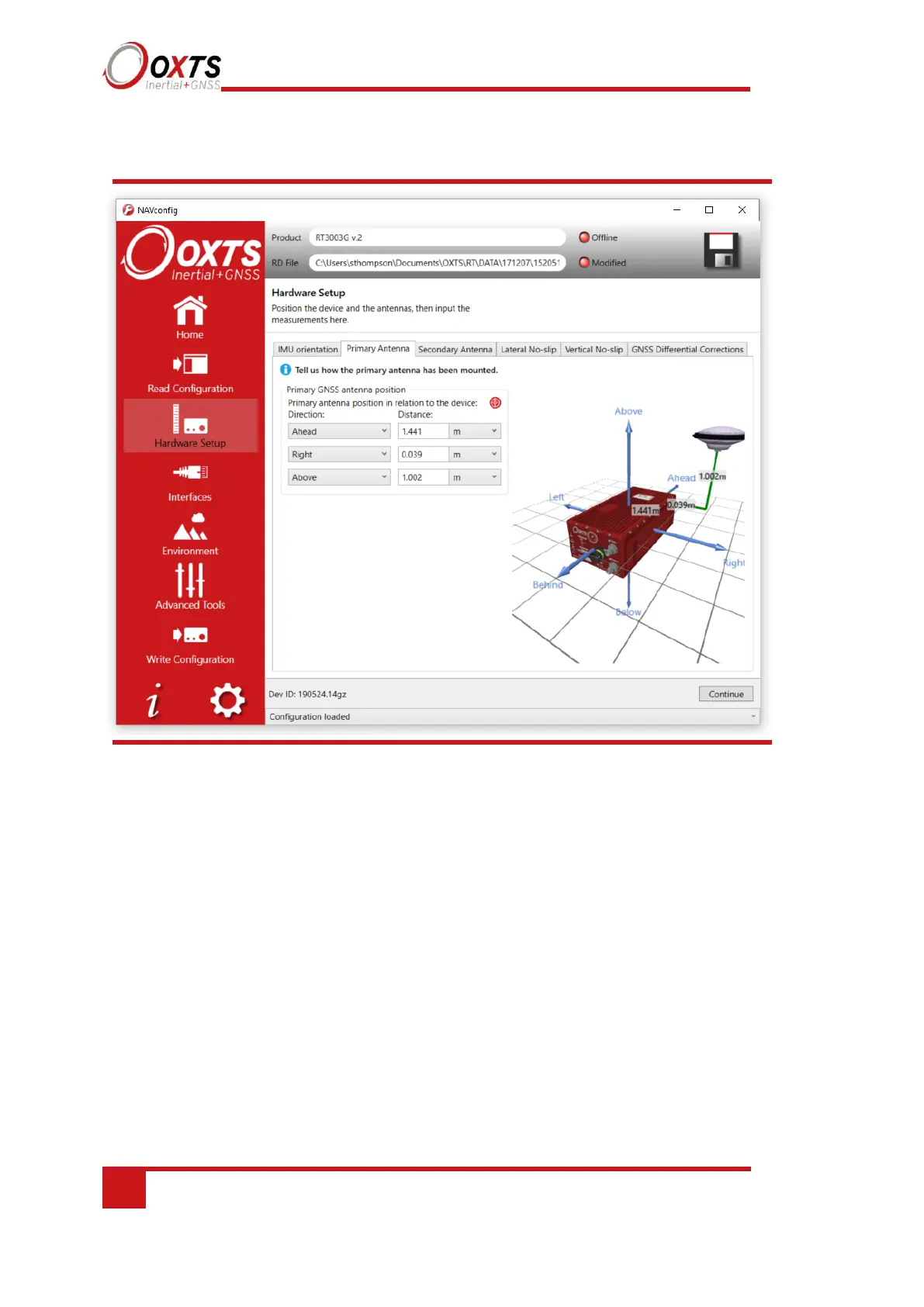

Figure 20. NAVconfig Primary
Antenna
tab
It
is
necessar
y
to
t
ell
the
RT
the
distance
between
its
measurement
ori
gin
(shown
in
Figure
4)
and
the
GNSS
antenna’s
measure
ment
point.
This
should
be
entered
in
the
vehicle’s
co
-ordinate frame.
The
RT
will try
to
improve the
position of
the
primary
GNSS
antenna
duri
ng
use.
To
use
the
values
the
RT
has
estimated
use
the
“
Improve
configuration
”
wizard
after
y
our
warm
-
up
on the Orientation utility page.
51
53
