Secondary Antenna tab
If your system has two antennas, click the ‘Secondary GNSS antenna’ checkbox on the
Secondary Antenna page (Figure 22) to allow the configuration to be entered. If it is not
enabled, the RT will ignore the secondary antenna and will not use it to compute a
heading solution.
Enter the antenna separation and select to position of the secondary antenna relative to
the primary antenna from the dropdown list. The illustrations will change according to
the settings you choose to help visualise the configuration of the antennas.

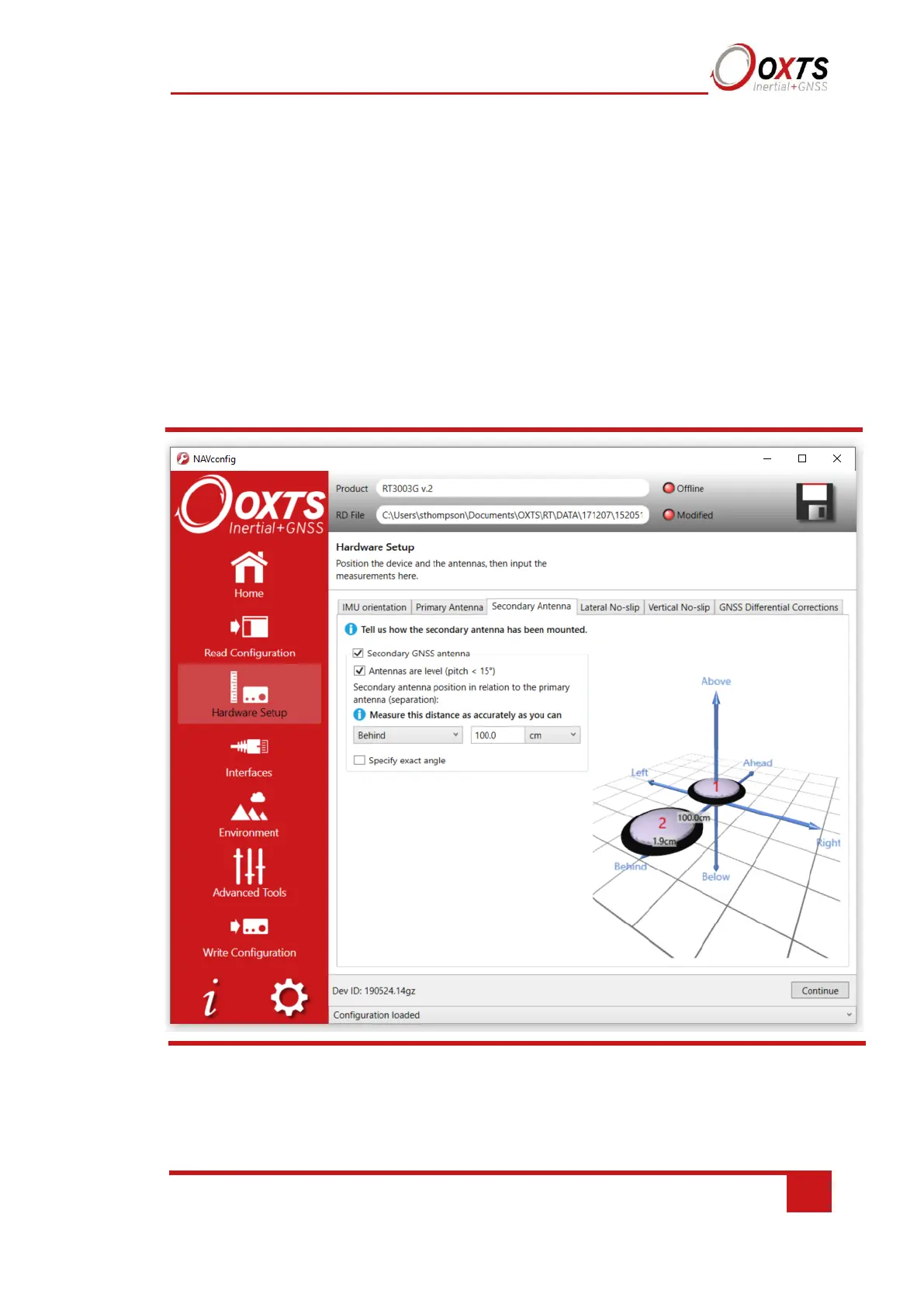

Figure 21. NAVconfig Secondary Antenna tab in the Hardware Setup section
