Oxford Technical Solutions

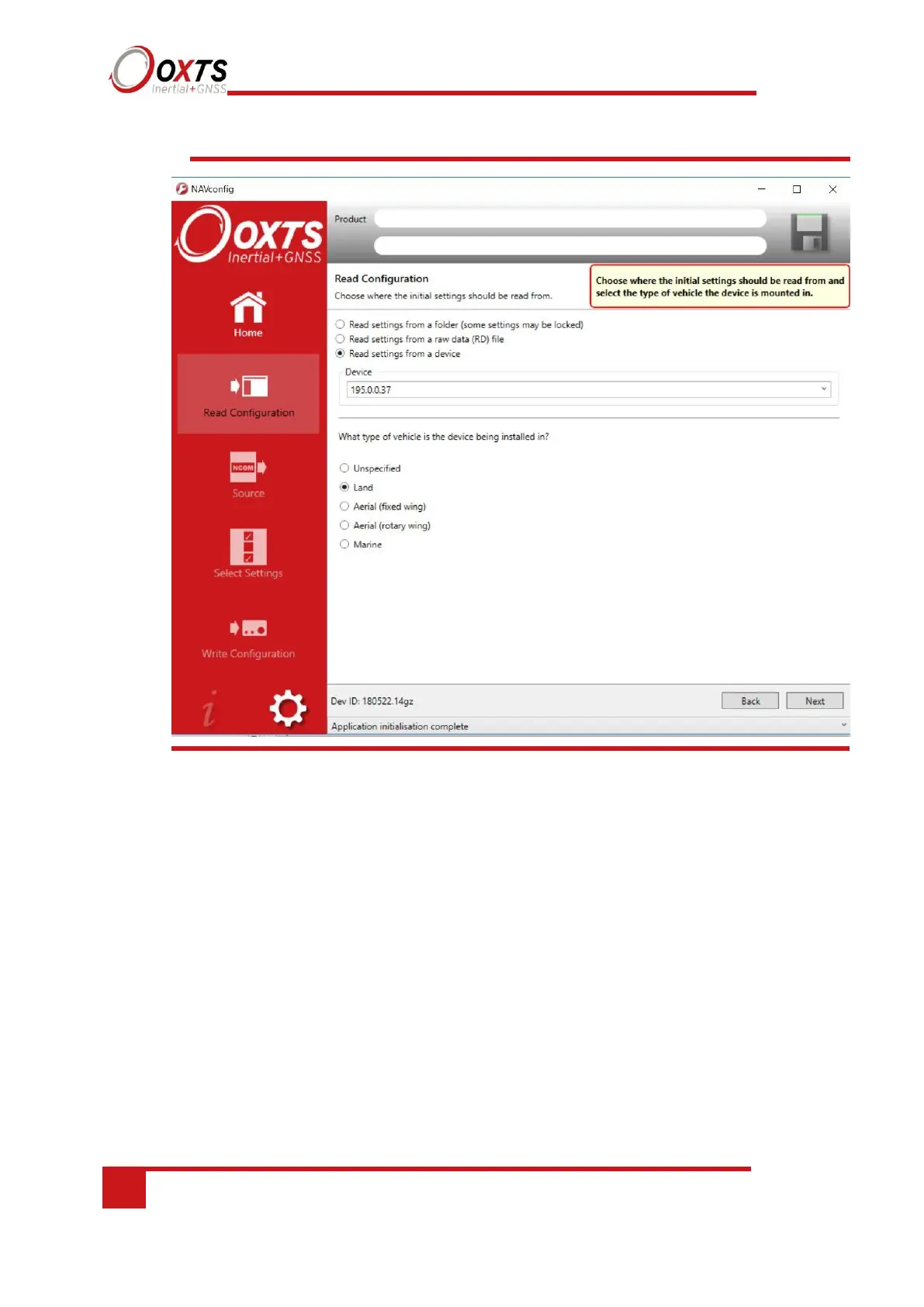

Figure 43. NAVconfig Read Configuration

Click ‘Next’ to continue.

Confirm whether the improved data should be read from: The Device, or a File. Click

‘Next’ to continue.
