ref 7.2
90°
3.5
Max 12mm
4 x M1.6x5 - Hex
Cap Screw
2 x OXY0525-
1.6X3.5X0.5 Washer
4 x M1.6x5 - Hex Cap Screw
Tail Push Rod Assembly
(Box 3/Bag 1)
Bottom Heli View
Arm position with
centered Rudder stick.
Nose Left
Nose Right
With Rudder Stick centered
and the Tail Servo Arm in the
center position, adjust the
Tail Push Rod length until the
Tail Bell Crank and Tail Case
Plate are parallel as shown.
The Oxy 2 Tail System has
approximately 3.5 of counter
torque with the Tail Bell Crank
set per instructions.
Top Heli View
OXY0552 - Leveler
(Box 2/Bag 4)

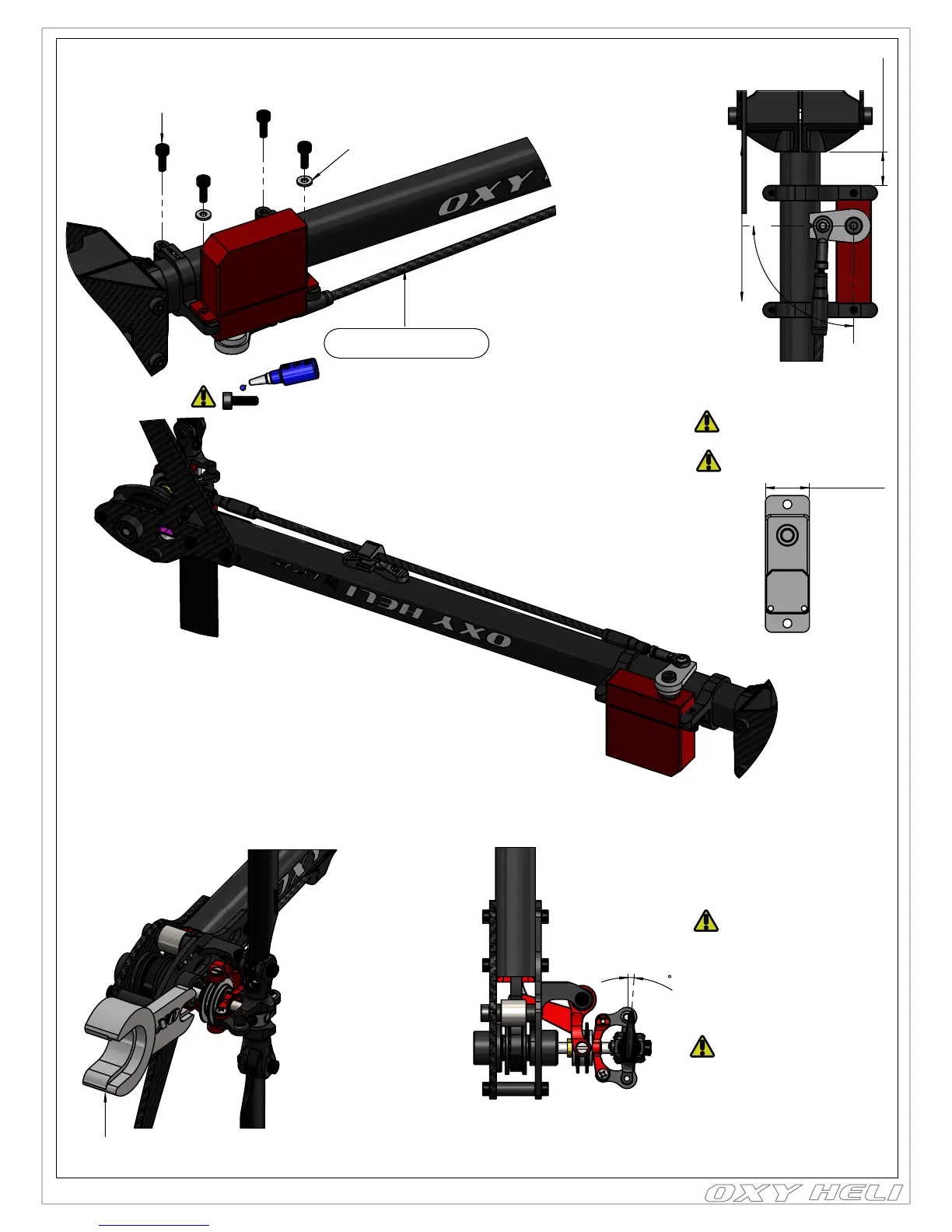

Chapter 16: Tail Servo Installation
page 30
