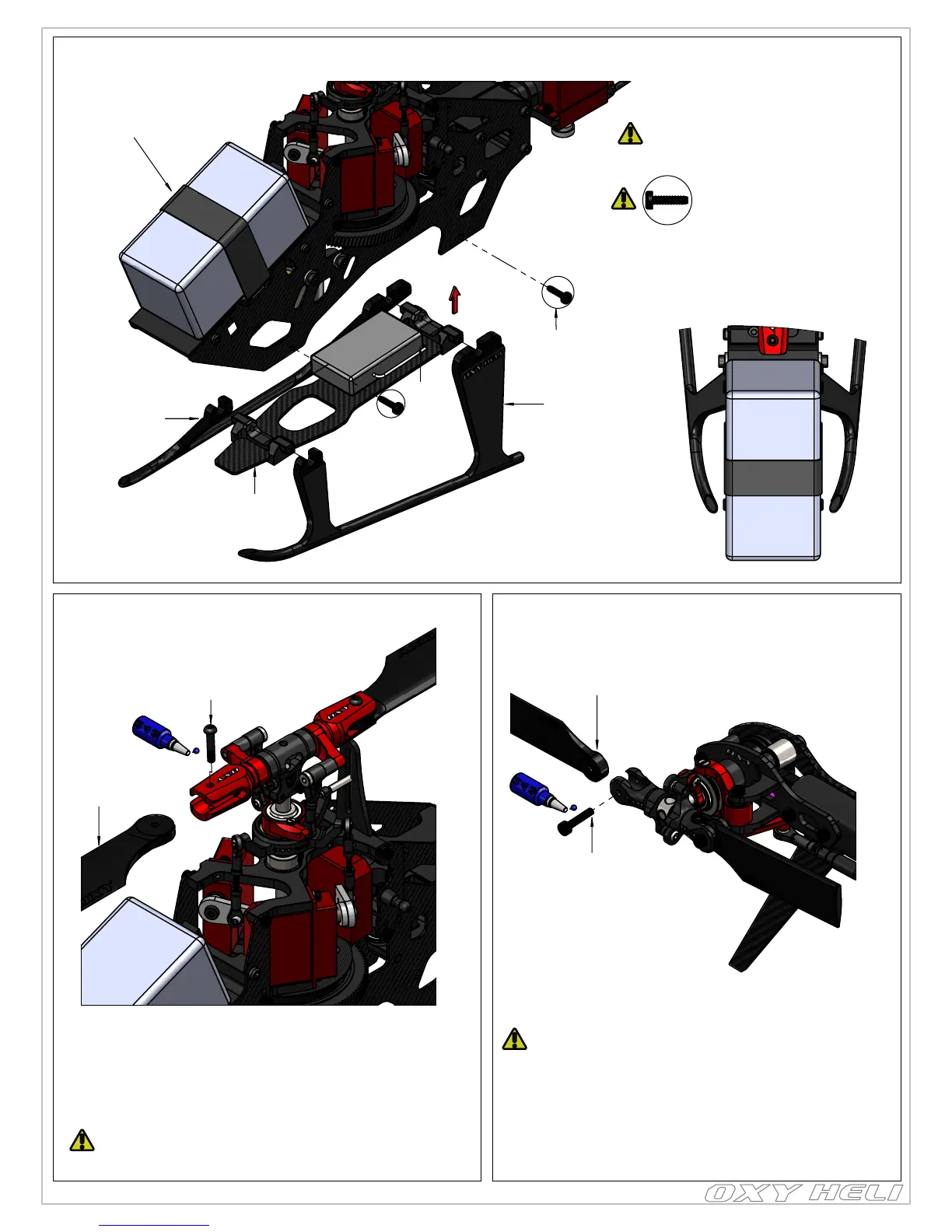

Landing Gear & Battery Installtion
4x M2x8 Self Tapping Screw
don't over tighten
4x M2x8
Self Tapping Screw
OXY0237-Bottom
Landing Gear
(Box 1/Bag 10)
Satellite
EX
Oxy tail blade dimension note: In order to assure
the best performance Oxy made a custom tail
blade with a 3mm root. If you use different tail
blades with a 2.5mm root you must use shims (not
included).
Information about 38 and 41mm tail blades: In the
kit we include two sets of tail blades - the 38mm are
designed for high head speed, the 41mm are designed
for low head speed. We recommends using 38mm
when head speed is higher than 4000rpm.
M2x10 Button
Head Screw
190 mm Carbon
Plastic Main Blade
(Box 3/Bag 2)
Plastic Tail Blade
38 or 41mm
(Box 1/Bag 7)
M1.6x8 Hex
Cup Screw
Note: The Oxy Main Grips have a 3.2mm root cavity
in order to work with any standard 190 / 210 main
blade root.
page 31
OXY0242-Right
Landing Gear
(Box 1/Bag 10)
Electronic Hook & Loop
(Box 2/Bag 4)
Important Note: Use both double sided Hook
and Loop Velcro and the included battery
straps to fully secure the battery pack.
Main Blades Installation
Tail Blades Installation
Chapter 17: Landing Gear & Battery Installtion
OXY0241-Left
Landing Gear
(Box 1/Bag 10)
