R6000S Operation Manual: Rev. G
PAC L.P., All Rights Reserved, 2015 Page 29 of 92
Detector Section Cabinet: Height – 6.8 in (17.272 cm)
Width – 19 in (48.26 cm); Depth – 19 in (41.275 cm)
Weight:
Furnace Section Cabinet: 40 lbs (18.143 Kg)
Detector Section Cabinet: 25 lbs (11.34 Kg)
Utilities: Carrier gas (Ar or N2) regulated to 35 psig (10-25 cc/min); Combustion gas (O2) regulated to
35 psig (350 cc/min); Instrument Air – Clean, dry, particle free for purge (80-100 psig)
Area Classifications: Non Hazardous
1.4 Component Description
Components used in the analyzers are described in the following sections.
1.4.1 Controls and Indicators
The following controls and indicators are included in the R6000S Analyzer. Also, the furnace module is
shown.
1.4.1.1 Detector Module

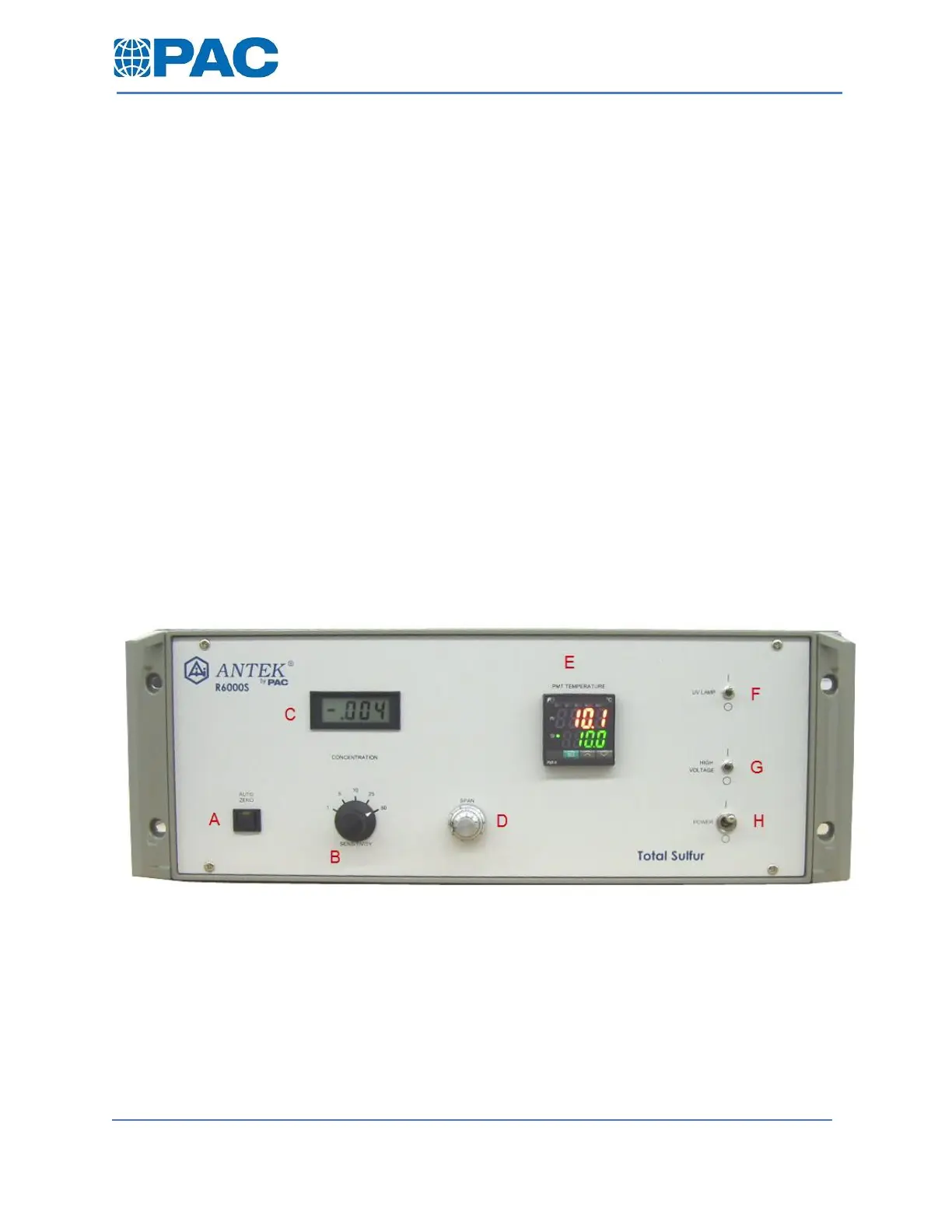

Detector Front View
A. Auto Zero Button
When pressed, the auto zero button forces the detector’s voltage output(s) to zero volts and/or 4 PAC
R6000S. Zeroing Light (located on auto zero button): Lights up when the instrument is forcing its outputs
to zero. Remains lit unit zero is reached.
