GENERAL INFORMATION
MICROCHINE
9. MICROCHINE POWER RECEPTACLE - Provides power, speed control, tip ground and finger
switch connection for the MicroChine handpiece.
10. VARIABLE SPEED CONTROL - Controls motor speed (2,500 - 10,000 RPMs) of MicroChine
handpiece.
11. PROBE BRAKE RECEPTACLE - Provides Probe Brake connection for the MicroChine Probe
Brake feature. See MicroChine portion of this manual for details.
12. STATUS LED - Illuminates Green to indicate MicroChine operation. Illuminates Amber if maximum
torque load is reached. Illuminates Red to indicate braking status when Probe Brake circuit is
activated.

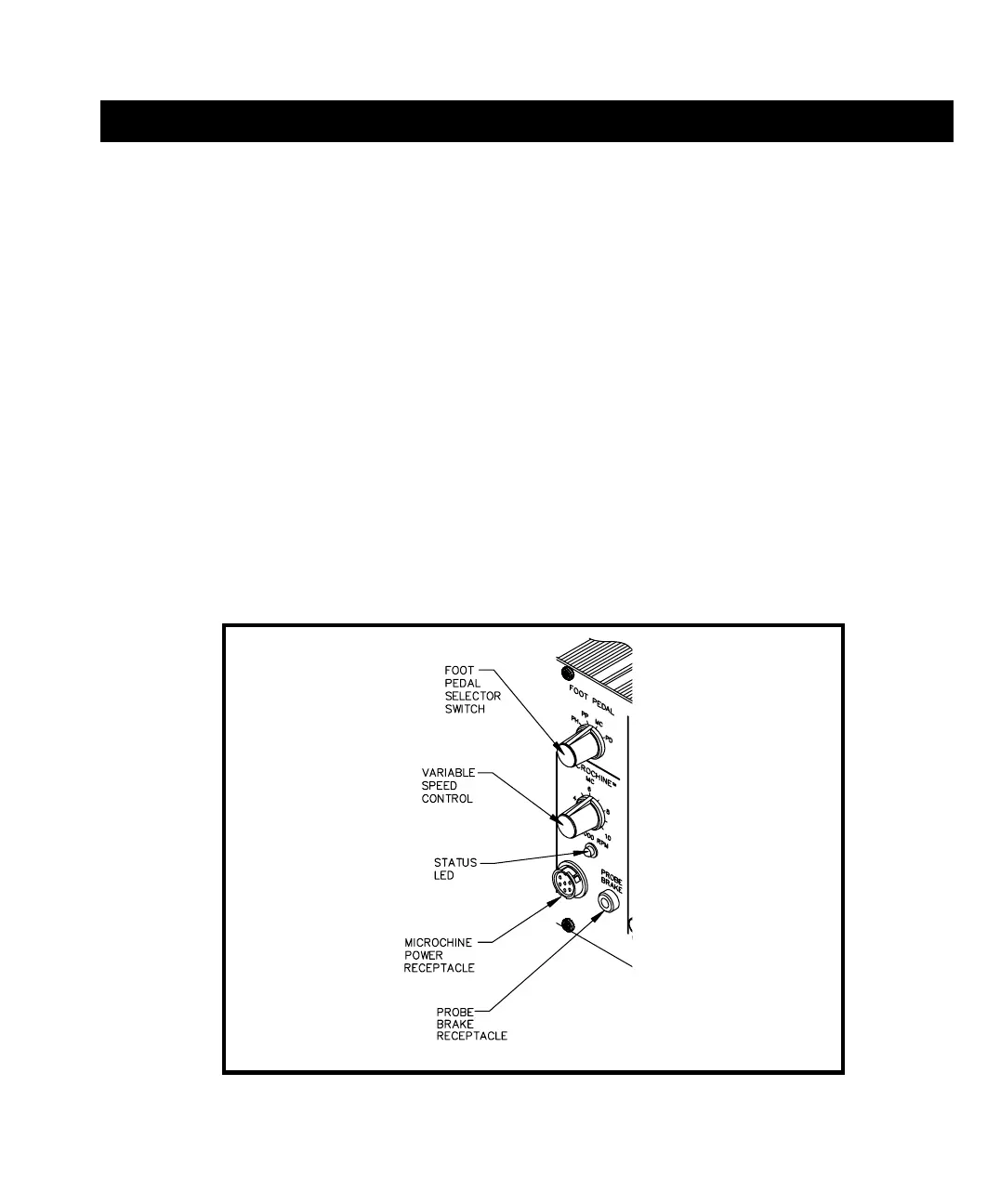

Figure 4. MicroChine Section
