GENERAL INFORMATION
PULSE PLATE
6. PULSE PLATE OUTPUTS - DC power connections for PACE SwaPlater plating system.
7. PULSE PLATE OUTPUT CONTROL - Controls DC power at PULSE PLATE Outputs.
8. PULSE PLATE LED - Illuminates Green to indicate when power is applied (upon foot pedal
actuation) at the PULSE PLATE Outputs. Illuminates Red if an overcurrent condition occurs during
plating.

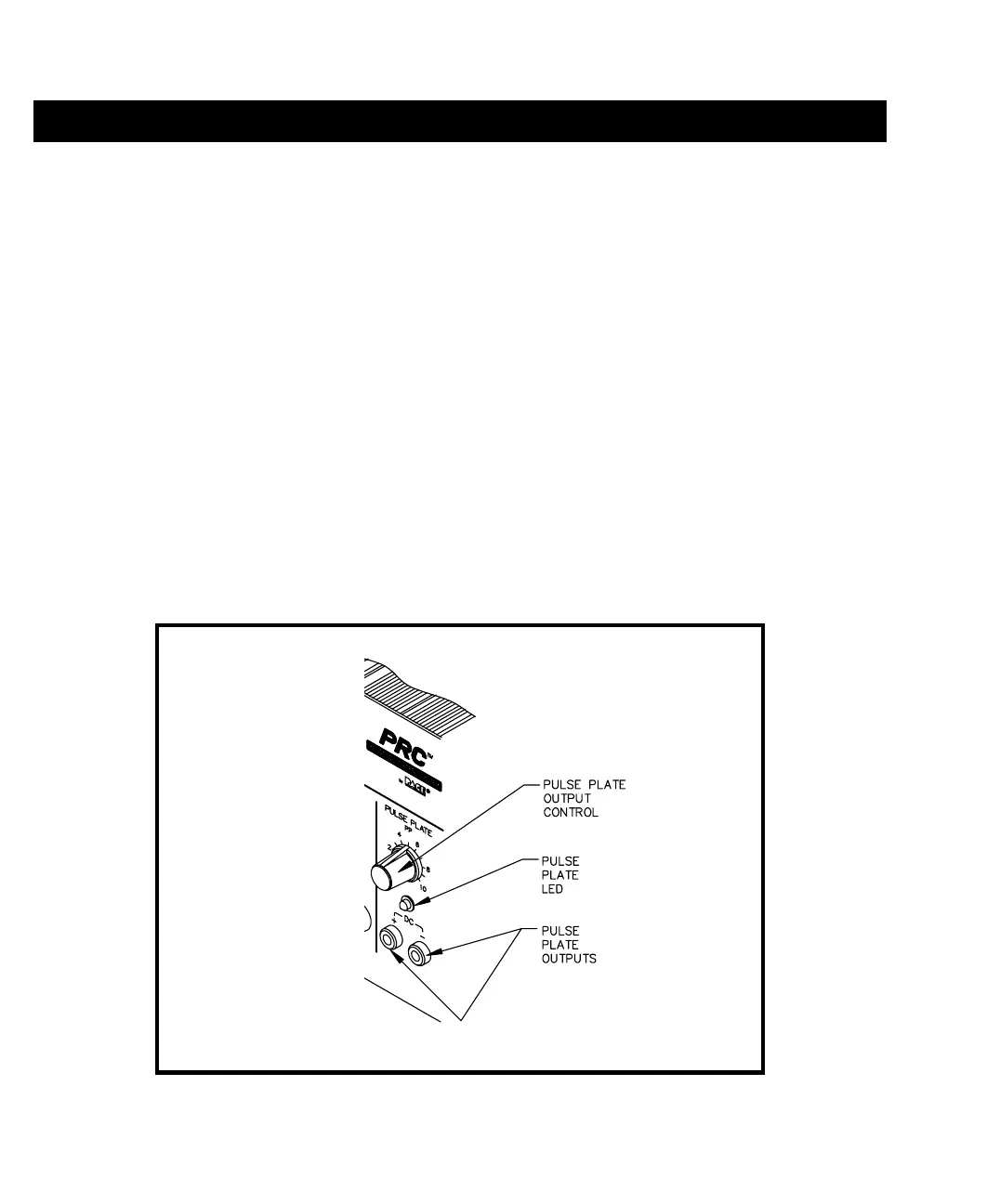

Figure 3. Pulse Plate Section
