REPAIR
DISASSEMBLY CONT'D
10. Remove the power source from the case by grasping 2 of the metal posts which connect the pc boards
to the power source chassis. Pull the power source forward and out of the case.
11. Set the case aside.
12. The unit can now be connected to the house AC supply to troubleshoot the system.

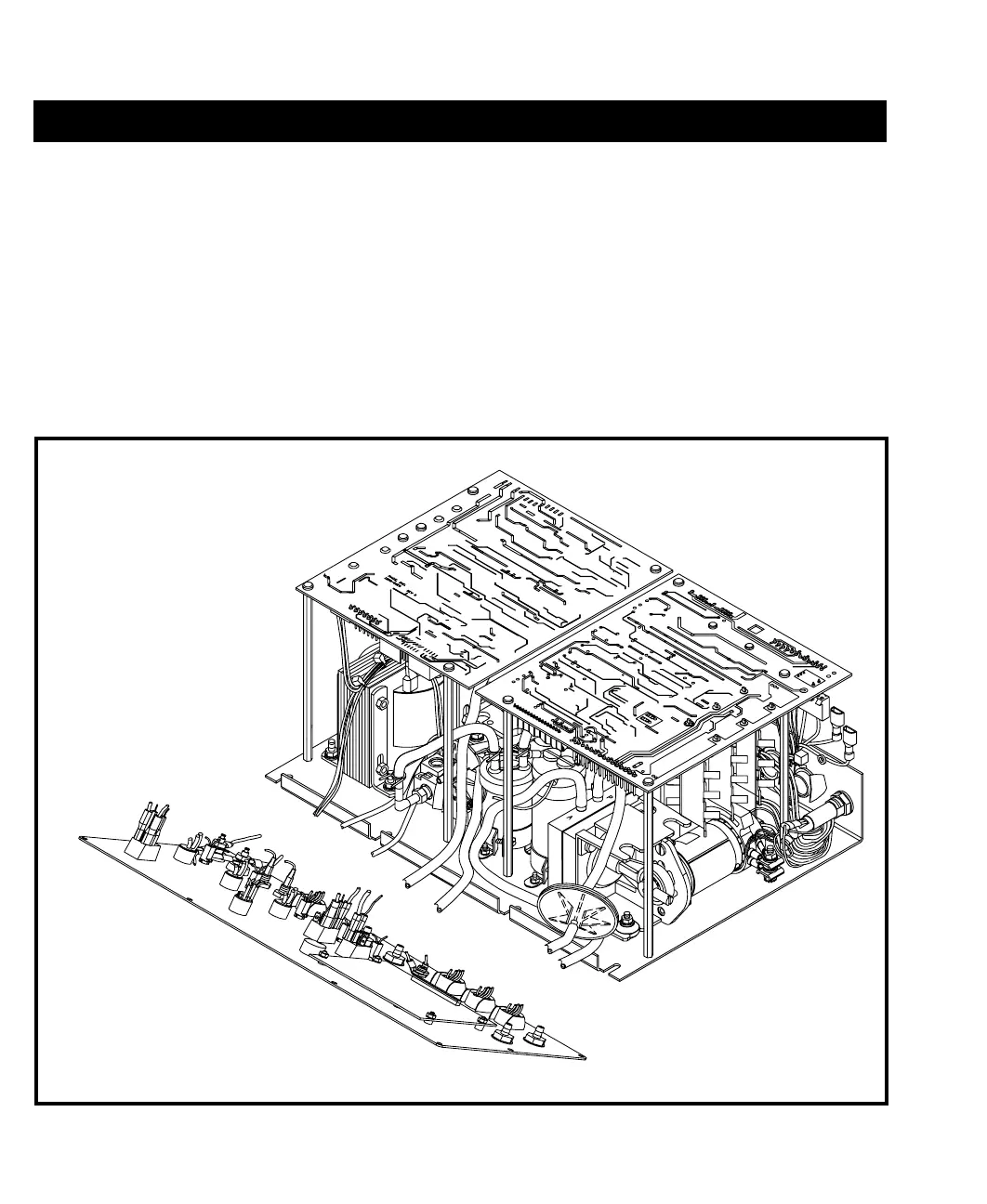

Figure 15. Removing Power Source From Case
