Zuma Assembly and Maintenance Guide
page 10
1 2 3 4 5 6

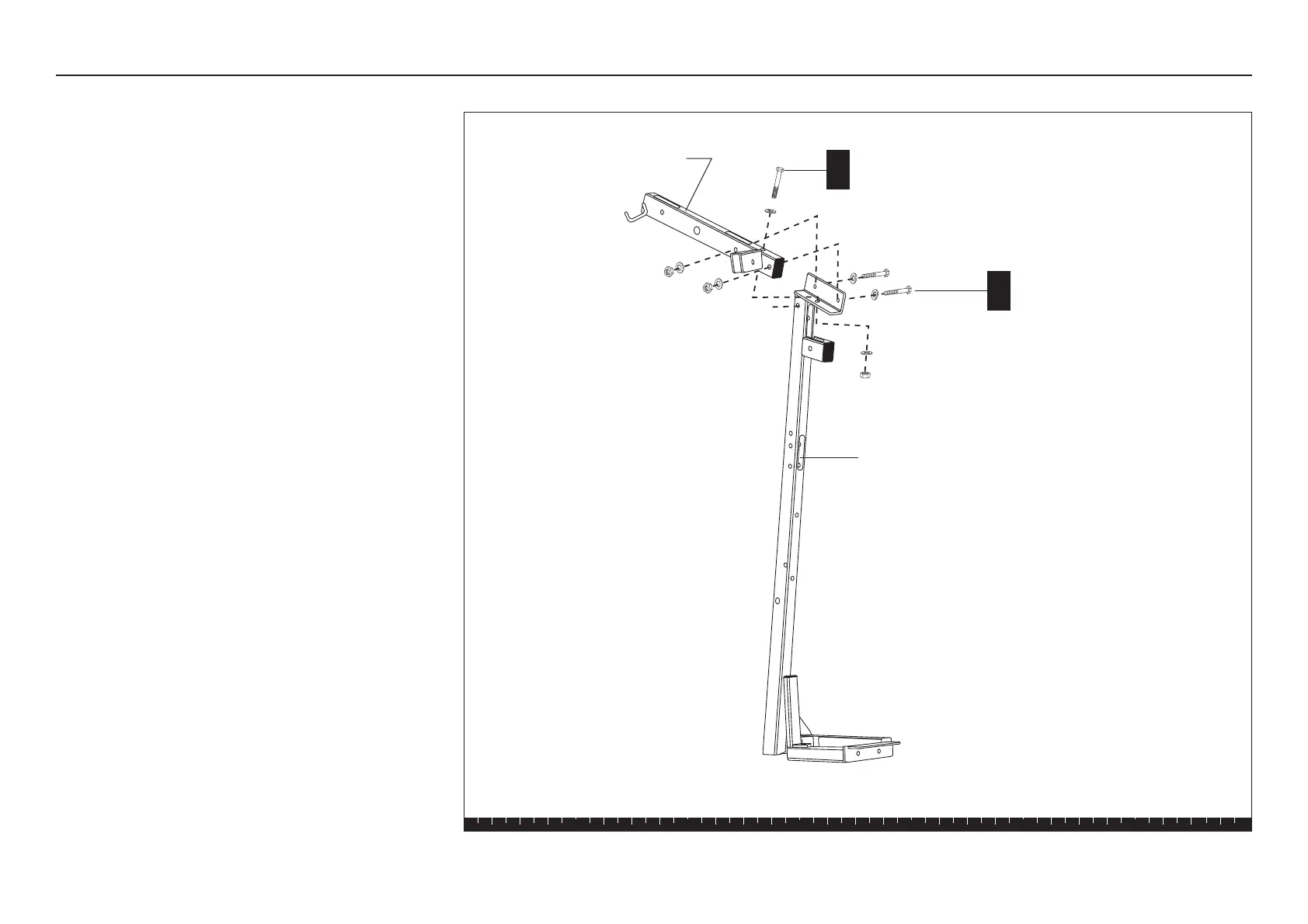

Step 2. Attach Top Beam
Top Beam
B
Main Upright
C
1 - 4" bolt
2 - washers
1 - locknut
2 - 3" bolts
4 - washers
2 - locknuts
2. Attach Top Beam
A. Place the Top Beam on the Main Upright. Ensure
the beam extends out as shown.
B. Attach the Top Beam to the Main Upright from the
side using
two 3-inch bolts
four washers
two locknuts
Finger tighten.
C. Attach the Top Beam to the Main Upright from the
top using
one 4-inch bolt
two washers
one locknut
Finger tighten.
D. Wrench tighten all bolts.
