Pacific Zuma - Install Seat and Rollers

Zuma Assembly and Maintenance Guide
page 24
1 2 3 4 5 6
Seat Pad
Mushroom Cap
Large Foam Rod
Roller Pad Rod
Roller Pad Rod Holder
Seat Stem
Leg Extension Arm
Seat Upright
Assembly
2 - 2¼" bolts
2 - washers
A

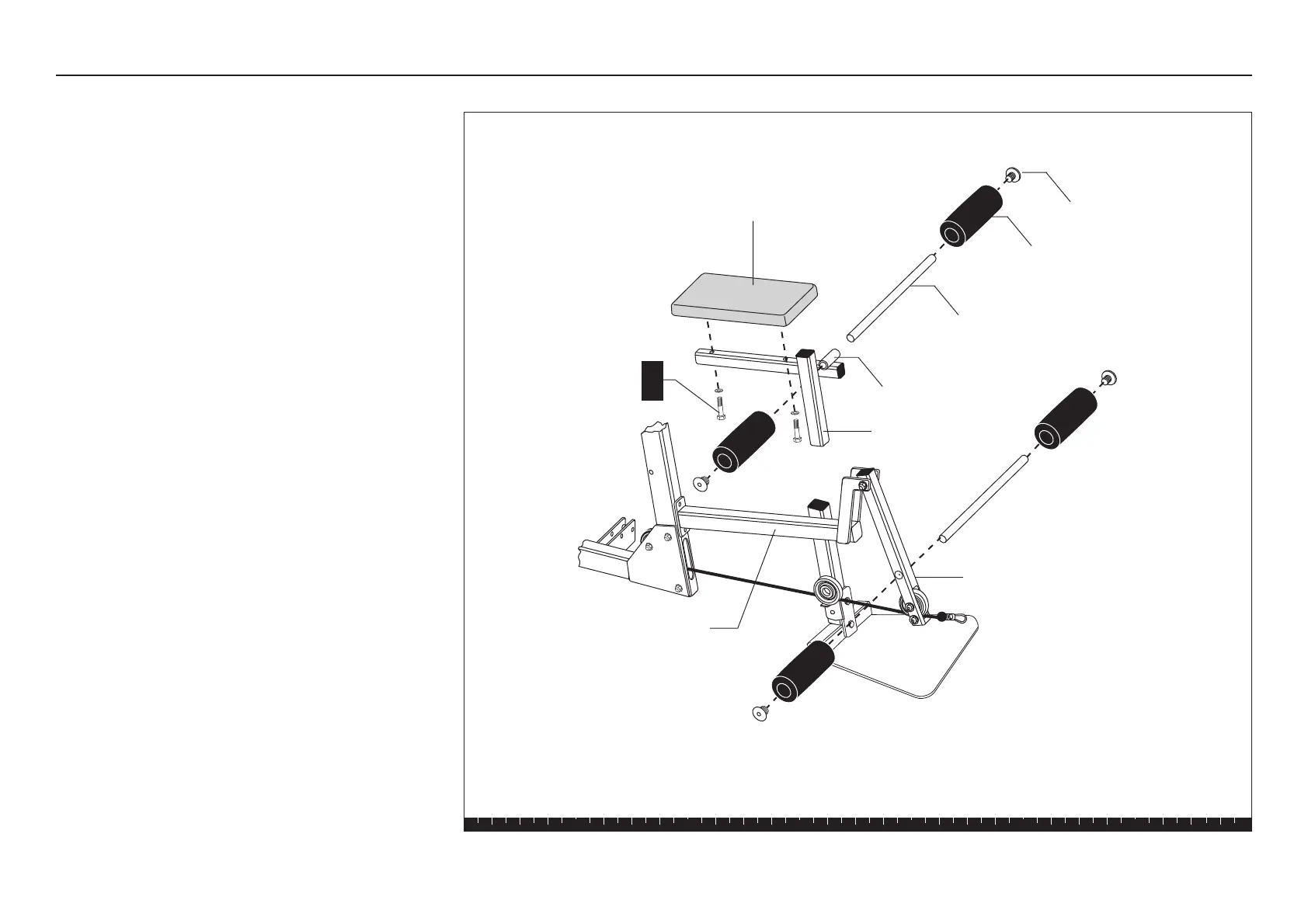

Step 12. Install Seat and Rollers
12. Install Seat and Rollers
A. Attach the Seat Pad to the Seat Stem using
two 2¼-inch bolts
two washers
Wrench tighten.
You can use either pad provided; they are the same
size. Also, you may want to make sure that the
seam on the pad faces toward the back, away from
the Roller Pad Rod Holder.
B. Insert the Seat Stem into the Seat Upright
Assembly. Pull out the seat adjustment pin to
insert the stem. Also, make sure that the Roller
Pad Rod Holder faces toward the front.
C. Slide a large Foam Roller completely on one end
of the Roller Pad Rod, then secure it in place by
pounding one mushroom cap in the end using the
rubber mallet.
D. Insert the Roller Pad Rod through the holder on the
Seat Stem.
E. Slide a large Foam Roller on the other end of the
Roller Pad Rod, then secure it in place by pounding
one mushroom cap in the end using the rubber
mallet.
F. Repeat for the Leg Extension Arm. Slide a large
Foam Roller completely on one end of a Roller
Pad Rod, then secure it in place by pounding one
mushroom cap in the end using the rubber mallet.
G. Insert the Roller Pad Rod through the hole in the
Leg Extension Arm (near the pulley).
H. Slide a large Foam Roller on the other end of the
Roller Pad Rod, and then secure it in place by
pounding one mushroom cap in the end using the
rubber mallet.
