Step 7. Attach Press Arm
Top Beam
Press Arm
1 - 7½" bolt
2 - ½" washers
1 - ½" locknut
A

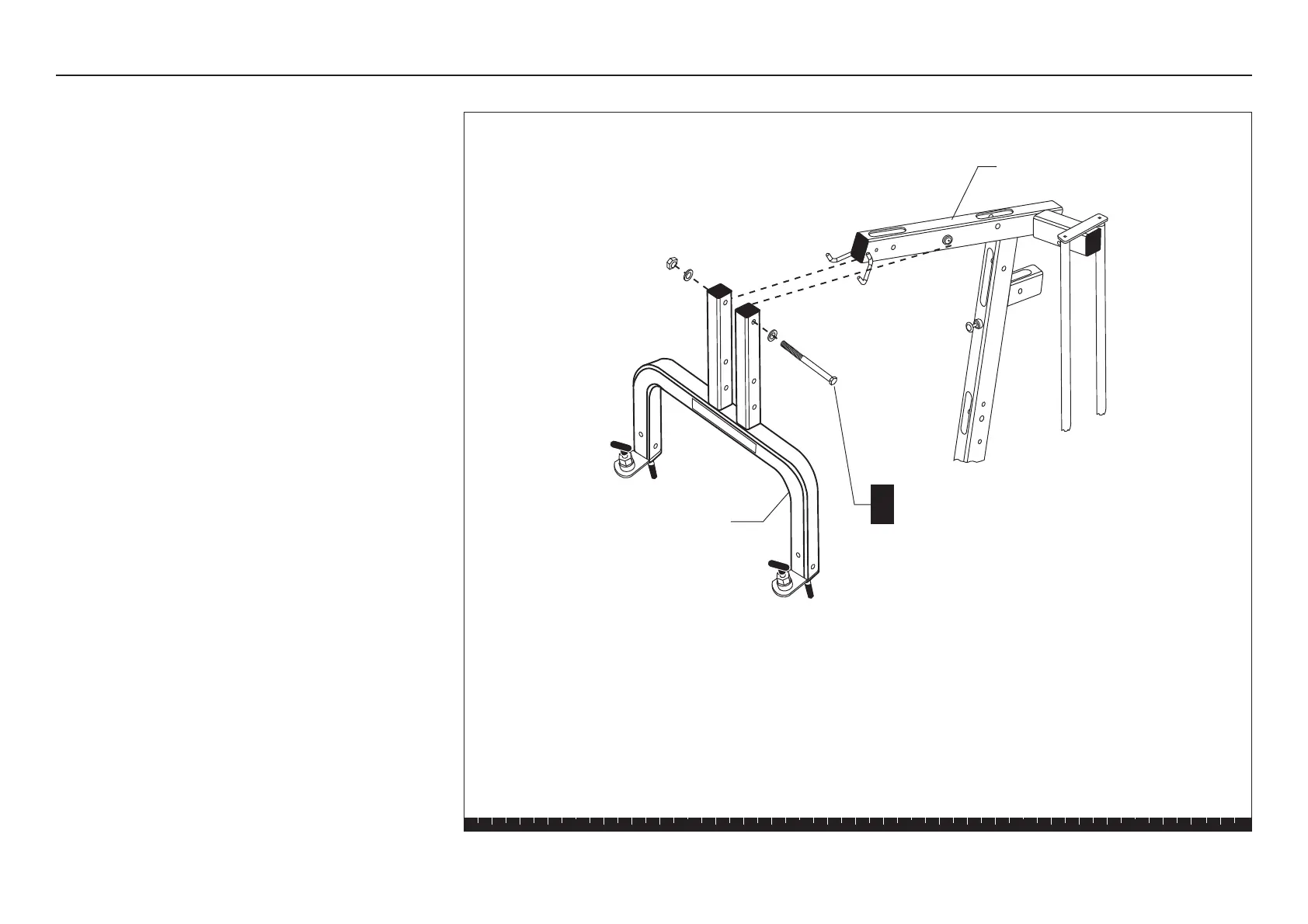

7. Attach Press Arm
A. Attach the Press Arm to the Top Beam, with the
label facing out, using
one 7½-inch bolt
two ½-inch washers
one ½-inch locknut
Wrench tighten enough to allow free rotation of the
Press Arm.
