Pacific Zuma - Attach Seat Upright Assembly

Zuma Assembly and Maintenance Guide
page 15
1 2 3 4 5 6

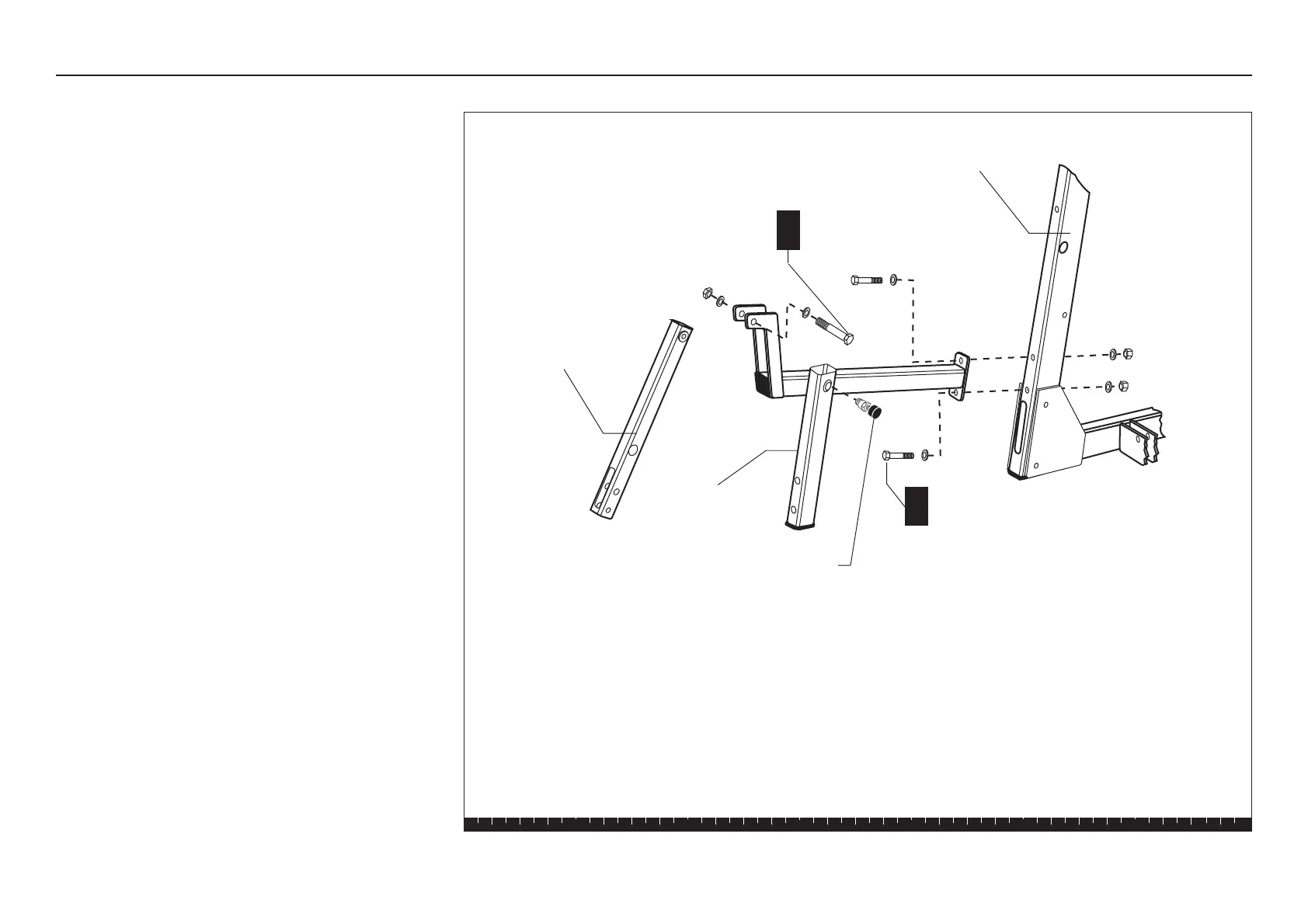

Step 6. Attach Seat Upright Assembly
Main Upright
2 - 4" bolts
4 - washers
2 - locknuts
A
Seat Upright
Assembly
1 - ½" by 3¼" bolt
2 - ½" washers
1 - ½" locknut
B
Leg Extension
Arm
Seat Adjustment Pin
6. Attach Seat Upright
Assembly
A. Attach the Seat Upright Assembly to the Main
Upright using
two 4-inch bolts
four washers
two locknuts
Wrench tighten.
B. Attach the Leg Extension Arm to the Seat Upright
Assembly using
one ½- by 3¼-inch bolt
two ½-inch washers
one ½-inch locknut
Finger tighten, and then wrench tighten the
bolt enough to allow free rotation of the Leg
Extension Arm.
C. Attach the seat adjustment pin to the Seat Upright
Assembly (it screws in). Finger tighten.
