Cable Adjustments
After the Zuma is completely assembled, you should
check the Cables for proper tension. These are some
signs that cable problems exist:
✔ The Top Cap Weight does not rest squarely on the
top weight of the weight stack.
✔ The Cable rubs the inside edges of the pulleys.
✔ Excess slack exists in the Cable.
CAUTION: Take the time to perform the Cable
adjustments outlined here. If the Cables do not have
the proper tension, you could void the Precor limited
warranty.
Main Cable Adjustment
You may need to adjust the Main Cable after installation
and periodically thereafter. The Cable tension should be
tight enough that the Press Arm rests lightly against the
Bumper Pad.

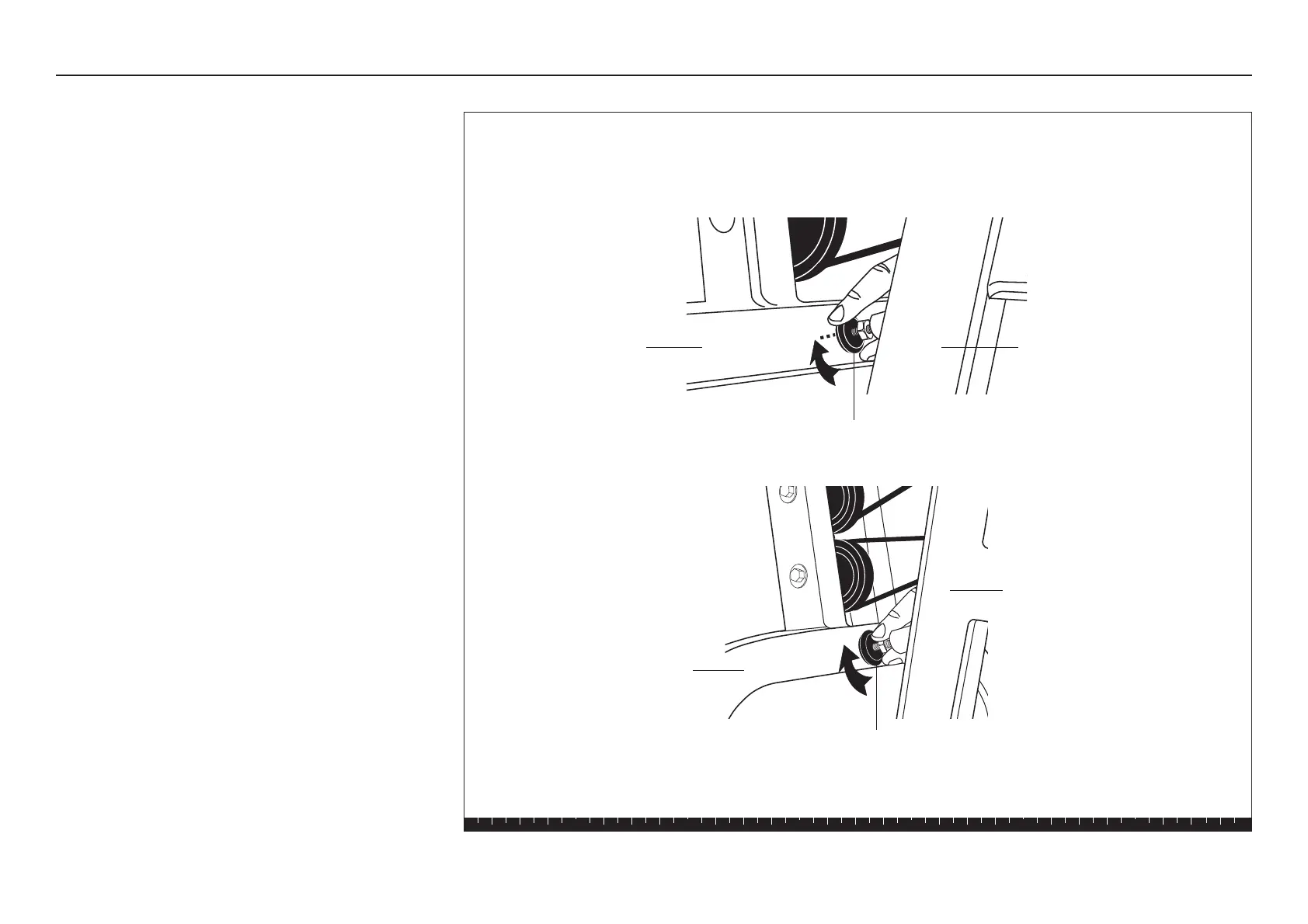

To adjust the tension of the Main Cable, unscrew or
screw in the Bumper Pad.
