Zuma Assembly and Maintenance Guide
page 13
1 2 3 4 5 6

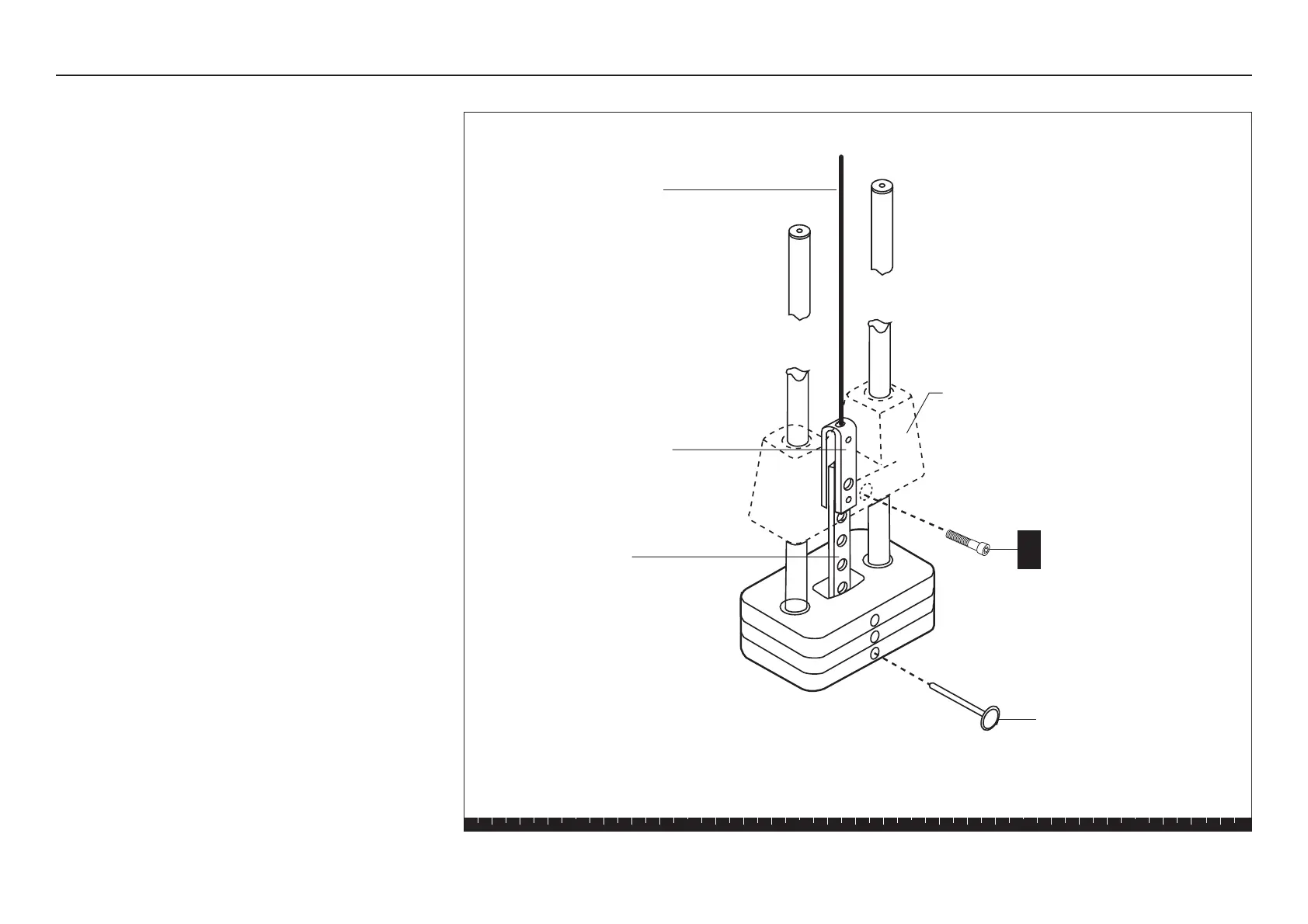

Step 5. Attach U End of Main Cable
Selector Stem
Weight Pin
1 - 1½" socket cap bolt
C
U Bracket of Main
Cable
Top Cap Weight
Main Cable
40509-102
5. Attach U End of Main Cable
A. Insert the Selector Stem into the weight stack with
the threaded hole at the top. Hold the Selector
Stem with several holes above the Top Cap Weight.
Insert the Weight Pin into the weight stack to
suspend the Selector Stem.
B. Place the U Bracket of Main Cable 40509-102 on
the top of the Selector Stem.
C. Align the holes in the top of the Selector Stem,
U Bracket, and Top Cap Weight. Attach using
one 1½-inch socket cap bolt
Wrench tighten.
D. Remove the Weight Pin and lower the Top
Cap Weight.
This completes box 1. You may move the box out of the
way. Leave the Main Cable loosely coiled on the floor;
you will complete feeding it through the machine later.
