Zuma Assembly and Maintenance Guide
page 12
1 2 3 4 5 6

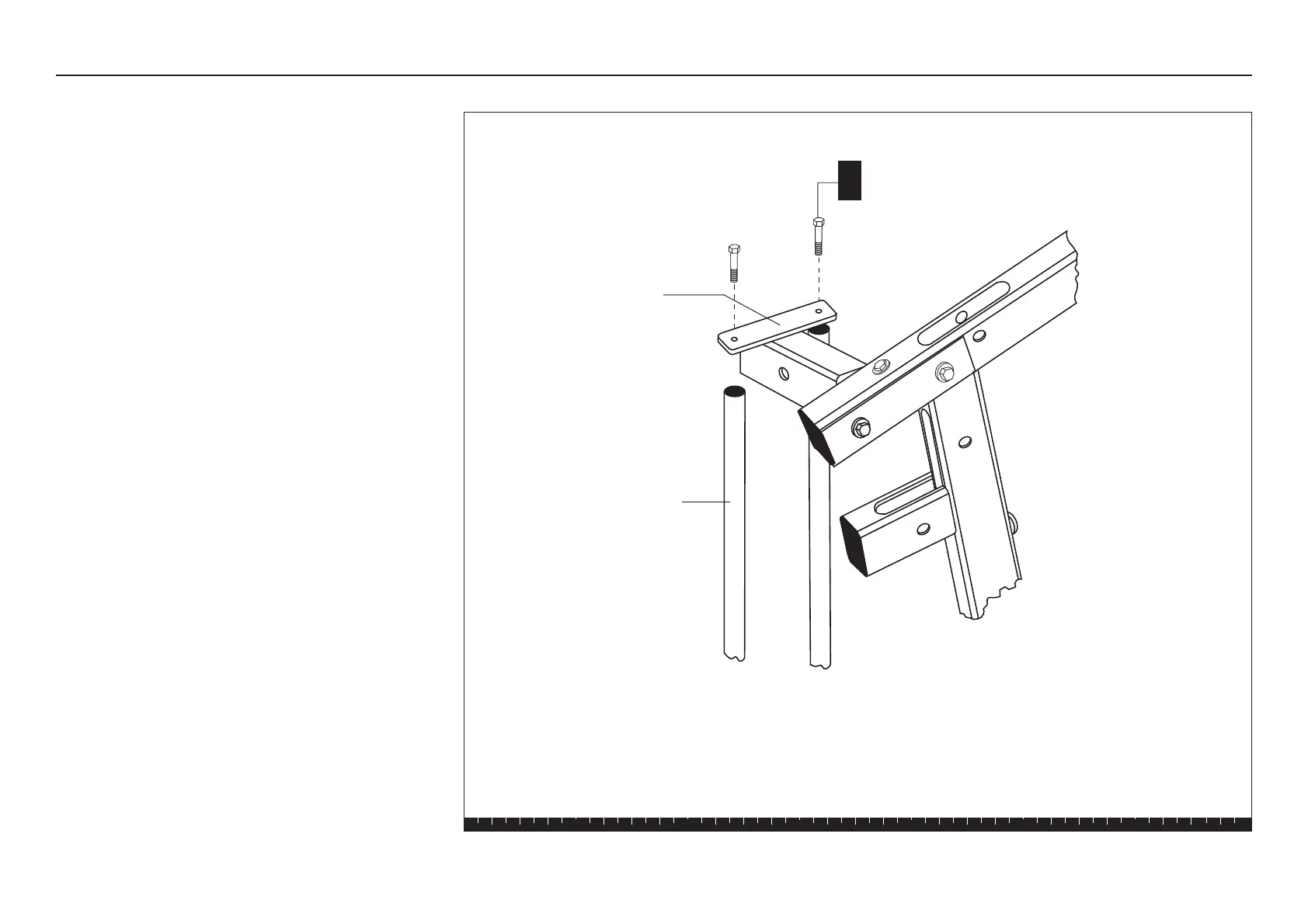

Step 4. Secure Guide Rods
2 - 1" bolts
Guide Rods (2)
B
Guide Rod
Bracket
4. Secure Guide Rods
A. Position the Guide Rods under the Guide Rod
Bracket.
B. Attach the Guide Rods to the bracket using
two 1-inch bolts
Insert the bolts through the bracket and into the top
of the Guide Rods as shown. Wrench tighten.
