Zuma Assembly and Maintenance Guide
page 23
1 2 3 4 5 6

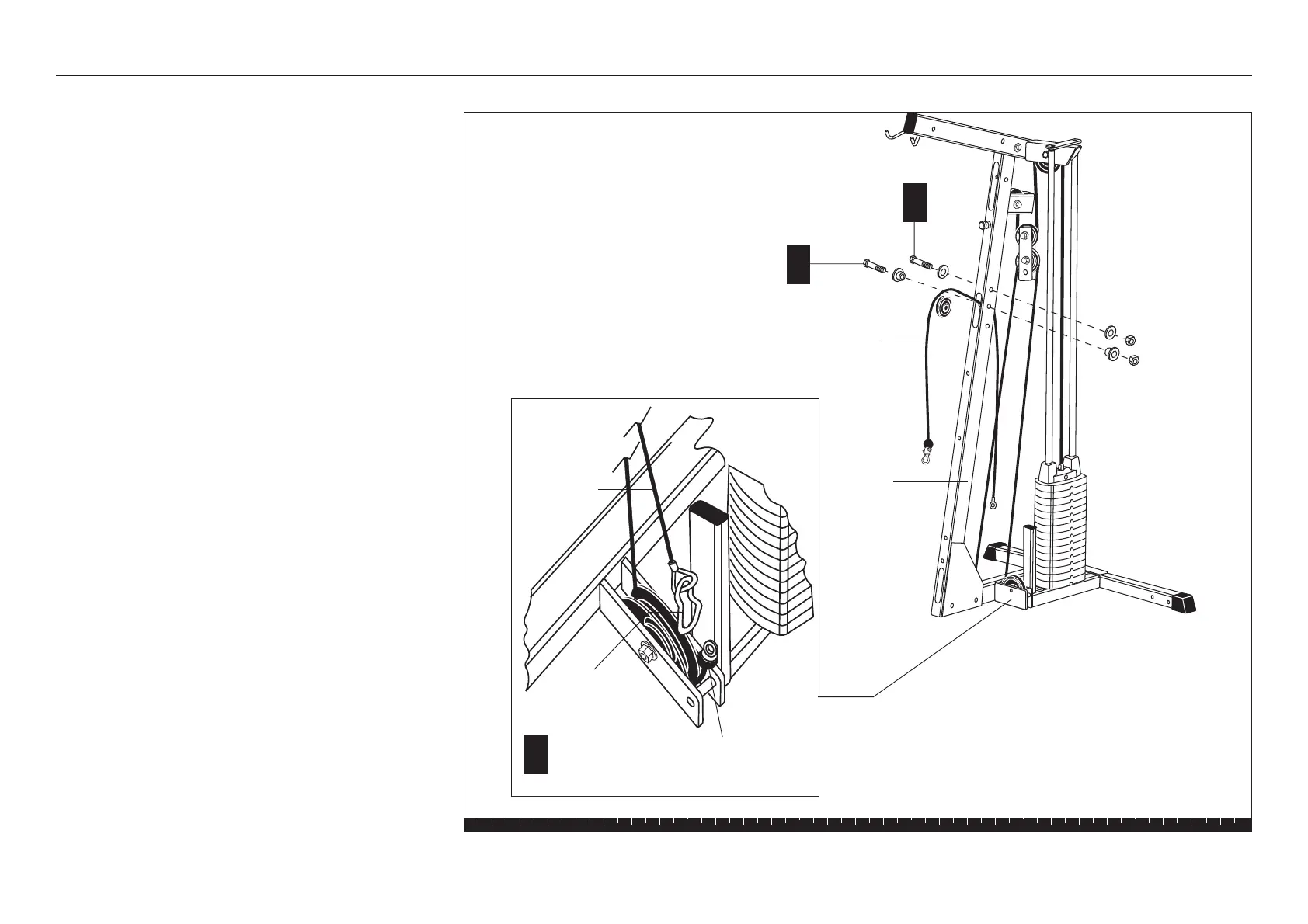

Step 11. Install Ab Cable
Ab Cable
42762-102
1 - 3½" pulley
1 - 2¾" bolt
2 - ½" step spacers
1 - locknut
B
1 - spring clip
D
1 - 2¾" bolt
2 - washers
1 - locknut
C
Main
Upright
Lower Cable
Ab Cable
Spring Clip
11. Install Ab Cable
A. Using the short Ab Cable 42762-102, feed the loop
end with the ball through the middle window in the
Main Upright, feeding it from the back to the front.
B. Place one 3½-inch pulley in the window of the Main
Upright under the Cable, then attach the pulley
using
one 2¾-inch bolt
two ½-inch step spacers
one locknut
Make sure the Ab Cable goes over the pulley.
Wrench tighten.
C. Insert a bolt over the pulley in the Main Upright to
create a cable retainer using
one 2¾-inch bolt
two washers
one locknut
Make sure that the Cable passes between the
pulley and the bolt. Wrench tighten.
D. Attach the Cable, using the end without a ball, to
the Lower Cable using one spring clip. Make sure
that the cables do not wrap around each other.
