Zuma Assembly and Maintenance Guide
page 25
1 2 3 4 5 6
Seat Pad
Mushroom Cap
Large Foam Roller
Roller Pad Rod
2 - 3¾" bolts
2 - washers
L

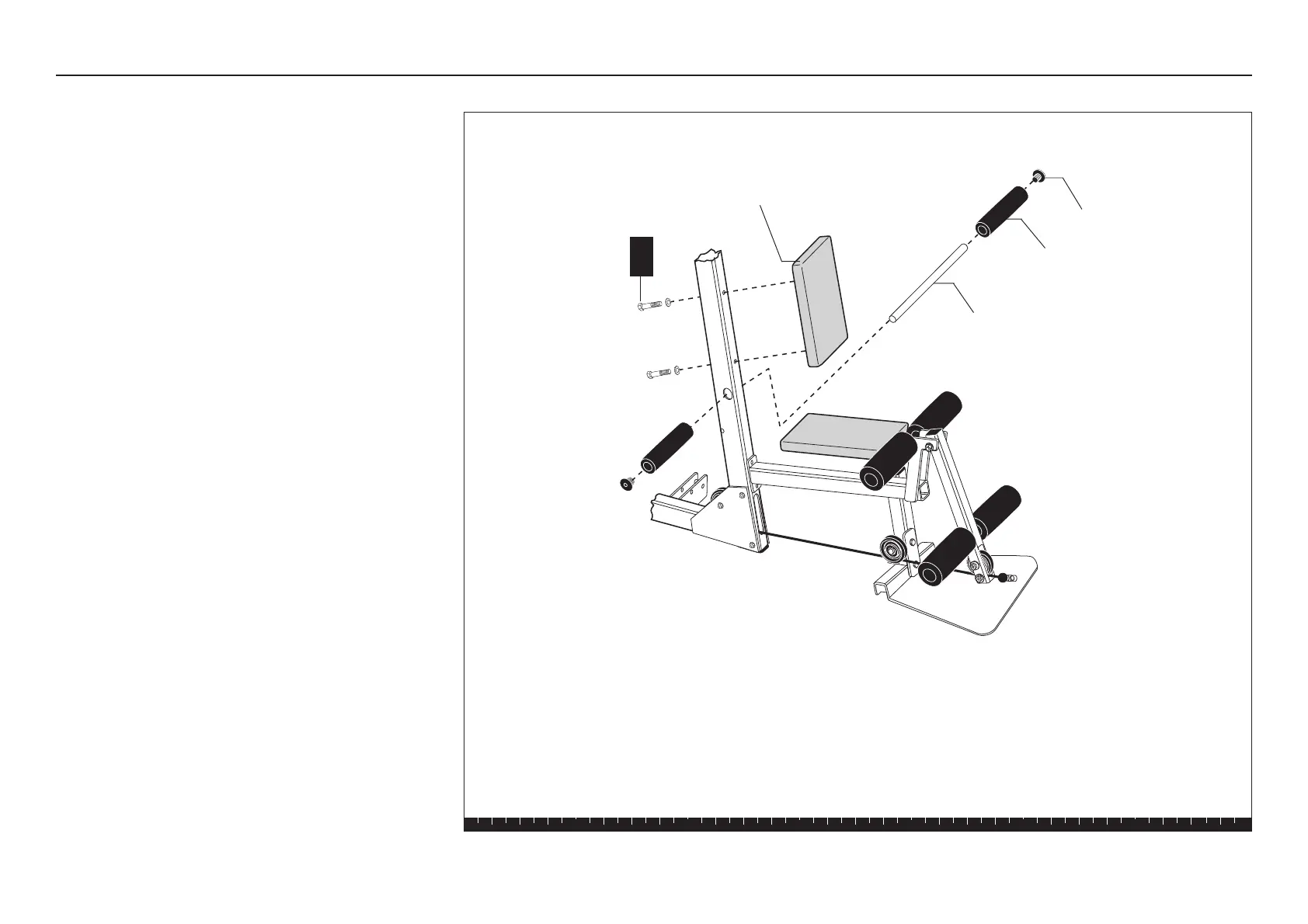

Step 12. Install Seat and Rollers, Continued
I. Again, repeat for the Main Upright. Slide a small
Foam Roller completely on one end of a Roller Pad
Rod, then secure it in place by pounding one
mushroom cap in the end using the rubber mallet.
J. Insert the Roller Pad Rod through the hole in the
Main Upright above the previously installed Seat
Pad.
K. Slide a small Foam Roller on the other end of the
Roller Pad Rod, then secure it in place by pounding
one mushroom cap in the end using the rubber
mallet.
L. Attach the other Seat Pad to the Main Upright using
two 3¾-inch bolts
two washers
Wrench tighten. You may want to make sure that
the seam on the pad faces down.
