PackLab MODULE 40 - TECHNICAL SPECIFICATIONS

Section 5
LABELING UNIT
- 4 -
English
F412050100.fmIDM
version
:
Module 40/60/90/120
TECHNICAL SPECIFICATIONS
Rated surface speed ....................40/60/90/120 m/min
Idling noise .................................................. <75 dB(A)
Single-phase electric supply
See technical details on the small plate stuck onto the
machine body.

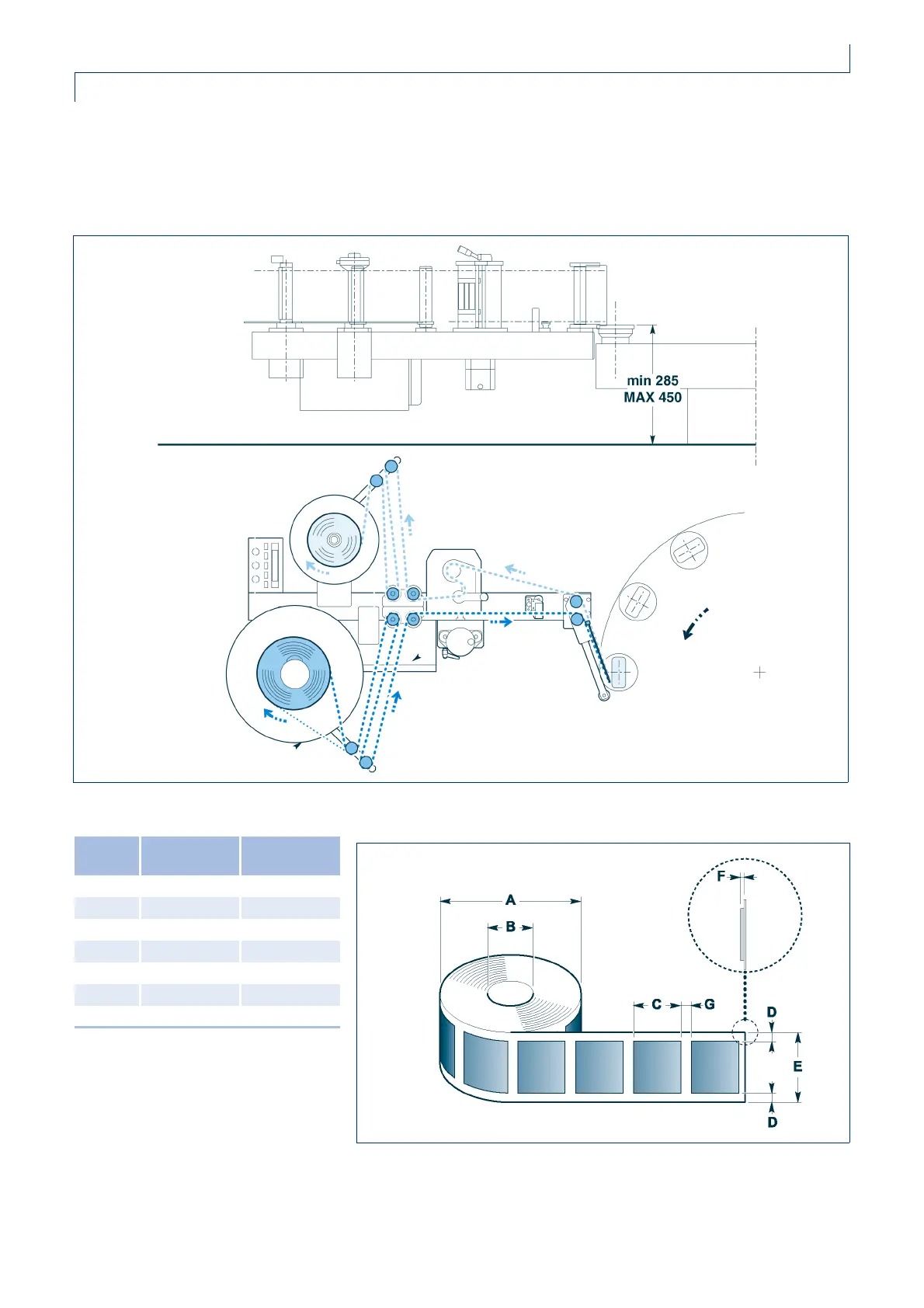

Example of configuration: Module 60 SX 150
Label speci fications
Recommended backing material
thicknesses:
Clear polyester: ......... 0.03 - 0.05 mm
Silicone paper: .......... 0.05 - 0.06 mm
The tolerance on dimensions C and G
may influence positioning accuracy.
The narrower the tolerance on these dimensions, the
greater the precision of the label’s positioning on the
container.
Module
40
(mm)
60 - 90 - 120
(mm)
A Max 290-300 Max 395-400
B 45÷75 45÷75
C 15÷480 15÷480
D 2,5 2,5
E 150/200/300 150/200
F 0.08÷0.10 0.08÷0.10
G Min 3 Min 3
IDM-412006003.tif
IDM-41200200800.tif
