Section 5
LABELING UNIT
- 38 -
English
F412050100.fmIDM
version
Module 40/60/90/120

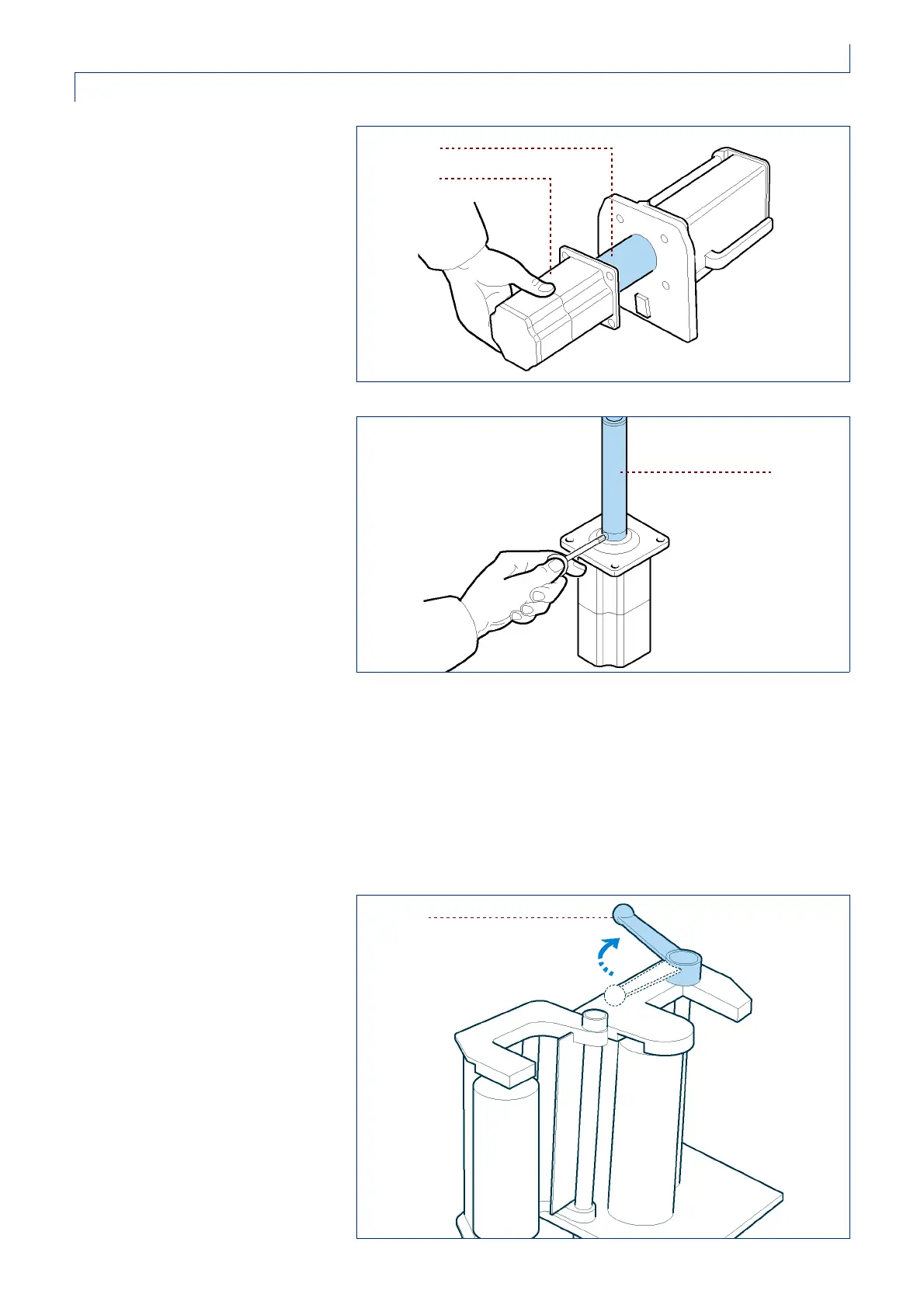

4 -Remove the motor from the
housing with the roller.
5 -Unscrew the fastening screw of the
roller and remove it.
6 -Replace the motor and repeat the
same operations the other way
round.
DRIVING ROLLERS - REPLACEMENT
Disconnect the motor cables and take the unit onto the
bench.
Powered roller
To disassemble and replace the powered roller, follow
the procedure described at paragraph
"Driving unit motor - Replacement".
Idle roller (counter-roller)
1 -Open the driving unit by releasing
the handle.
IDM-01_039_0.tif
roller
motor
IDM-01_040_0.tif
roller
IDM-41200600700.tif
handle
