PackLab MODULE 40 - DRIVING MOTOR BELT ADJUSTMENT

Section 5
LABELING UNIT
- 14 -
English
F412050100.fmIDM
version
:
Module 40/60/90/120
DRIVING MOTOR BELT ADJUSTMENT
In some versions (e.g. MODULE 120),
there is a belt and pulley drive between
the motor and the driving roller. Refer
to the “Assembly drawings” document
for further details.
To pull the belt taut, proceed as follows.

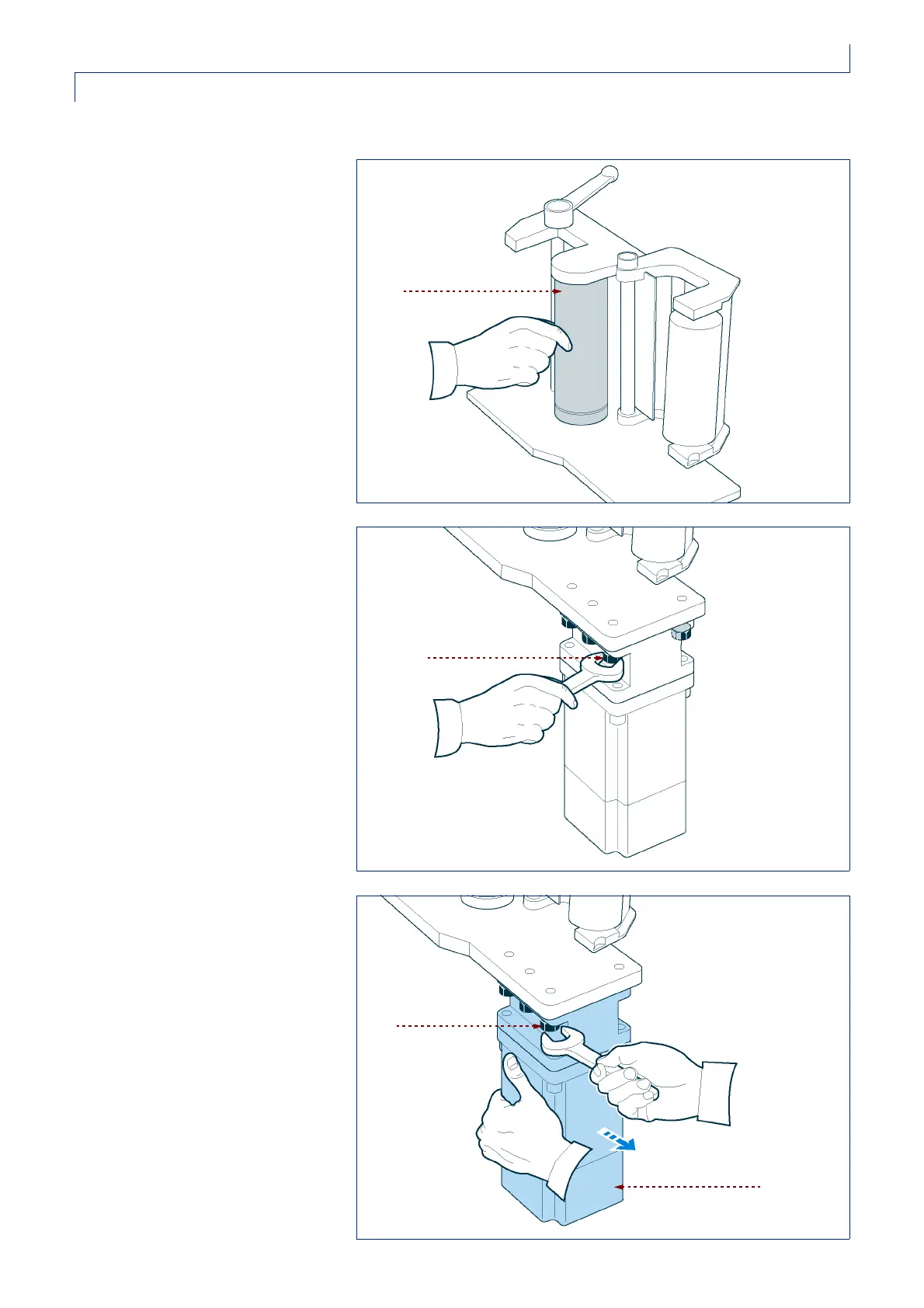

1 -Open the guard over the driving
unit and make sure there is no
slack on the roller. A flexible
displacement of approximately 0.5
mm is normal. If the roller moves
more, proceed with the steps listed
below.
2 -Loosen the driving motor coupling
cage bolts.
3 -Move the motor with one hand,
shifting it outwards without exerting
an excessive force, then tighten the
bolts.
An automatic sprung tensioning
system ensures the right tension on the
drive belt. Refer to the “Assembly
drawings” document.
IDM-41200601100.tif
roller
IDM-41200601200.tif
screw
IDM-41200601300.tif
motor
screw
