PackLab MODULE 40 - UNWINDING UNIT BRAKE BELT - REPLACEMENT

Section 5
LABELING UNIT
- 36 -
English
F412050100.fmIDM
version
:
Module 40/60/90/120

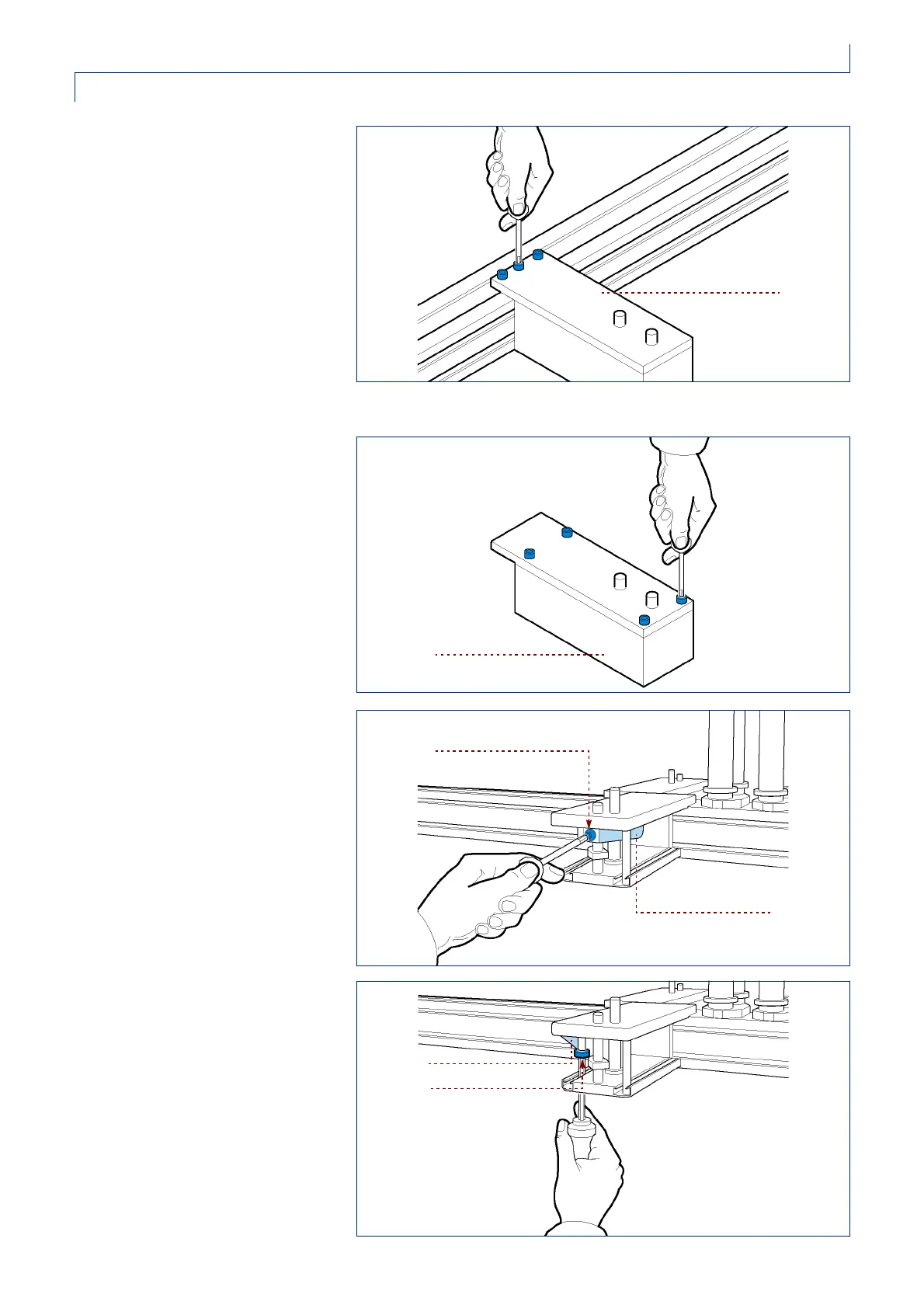

3 -Unscrew the fastening screws of
the winding/unwinding unit.
4 -Take the unit on the bench.
UNWINDING UNIT BRAKE BELT - REPLACEMENT
1 -Disassemble the unwinding unit by
taking it onto the bench.
2 -Unscrew the fastening screws of
the guard and disassemble it.
3 -Unscrew the fastening screw of the
belt and unwind it from the wheel.
4-Unscrew the screw located under
the other end of the belt and take it
out until you can remove the belt.
5 -Fit a new belt and repeat
assembling operations the other
way round.
IDM-01_028_0.tif
winding/unwinding unit
IDM-01_029_0.tif
guard
IDM-01_030_0.tif
screw
belt
IDM-01_031_0.tif
belt
screw
