Section 5
LABELING UNIT
- 37 -
English
F412050100.fmIDM
version
Module 40/60/90/120

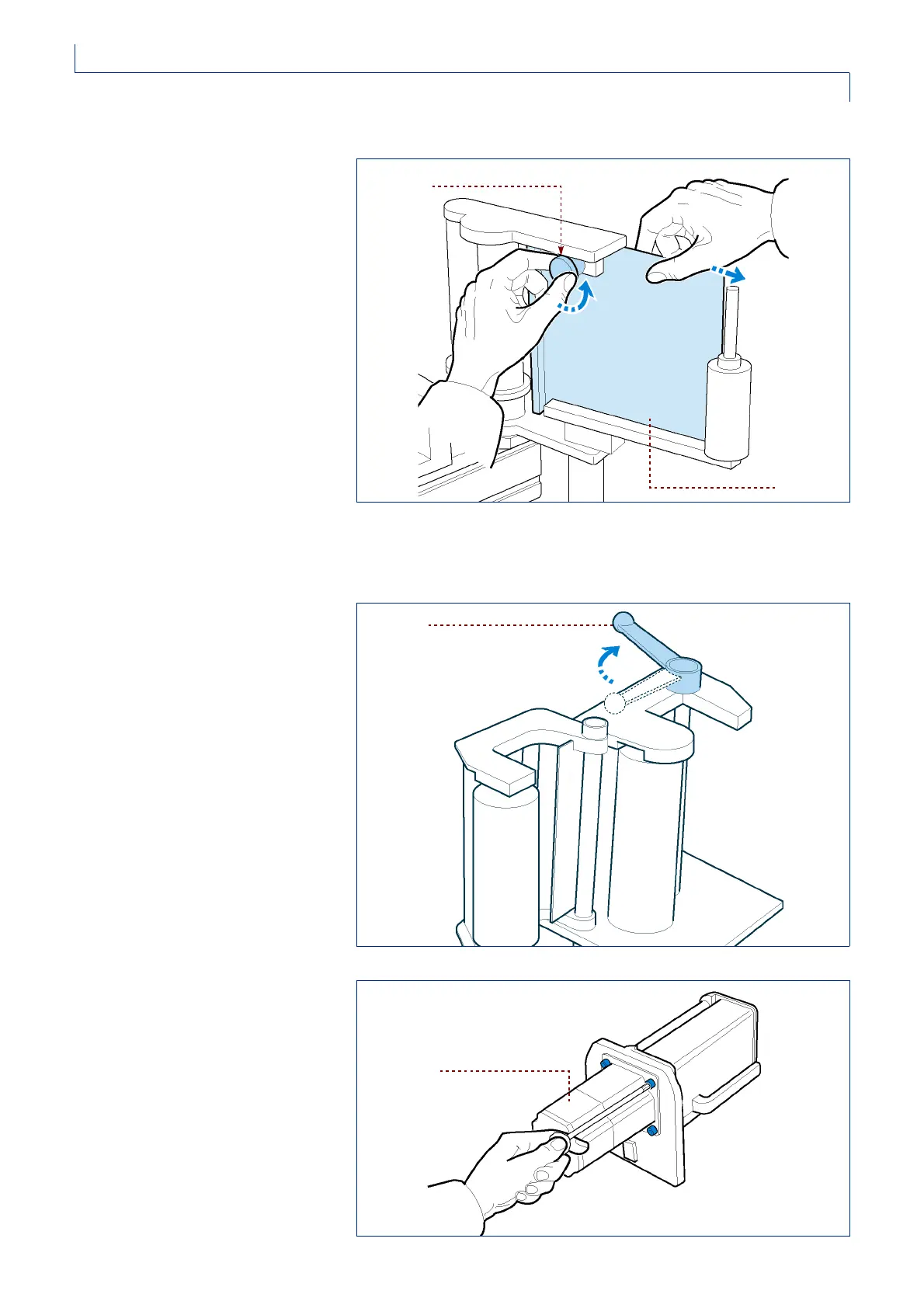

LABEL DETACHING BLADE - REPLACEMENT
Blade replacement might also become
necessary when a new bottle format is
used.
Carry out the following operations:
1 -loosen the locking knob and
remove the blade;
2 -Push the new label detaching blade
right down until it comes up against
the frame;
3 -when the blade has been replaced,
tighten the knob.
DRIVING UNIT MOTOR - REPLACEMENT
1 -Disconnect the motor cables and
take the unit onto the bench.
2 -Open the driving unit by releasing
the handle.
3-Unscrew the motor fastening
screws.
IDM-01_037_0.tif
knob
blade
IDM-41200600700.tif
handle
IDM-01_038_0.tif
motor
