Section 5
LABELING UNIT
- 7 -
English
F412050100.fmIDM
version
Module 40/60/90/120

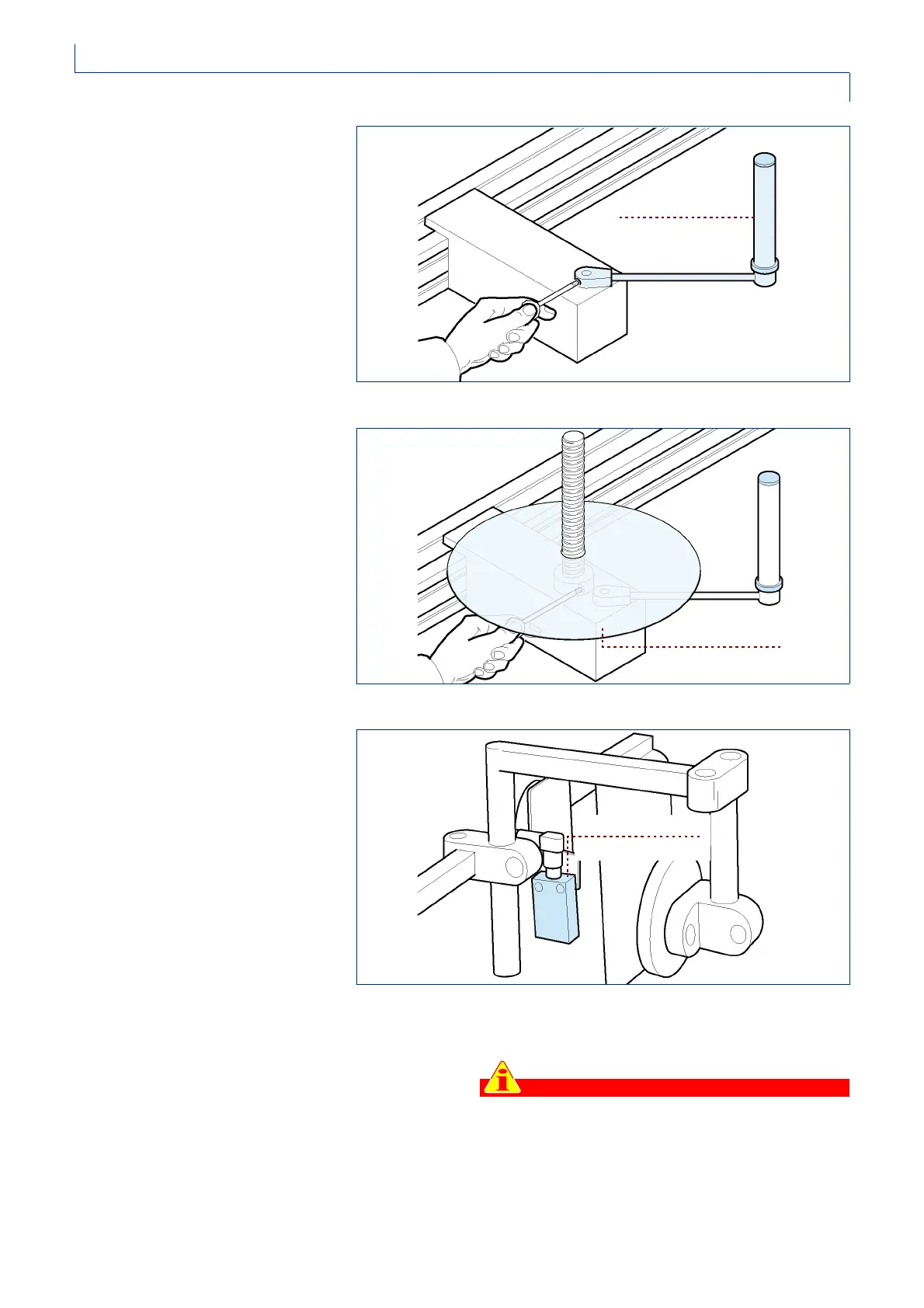

Reel carrier disk assembly
1 -Assemble the dandy rollers, if
they are disassembled.
2 -Assemble the reel carrier disks on
the winding and unwinding rollers.
START photocell assembly
1 -Install the Start photocell on the
carousel, according to the space
available; the photocell must be
able to read the jack of each
individual bottle. For power
connections, please refer to the
electric technical documentation
attached.
2 -Contact the Manufacturer’s
Service Department for any further
information.
Encoder assembly
The encoder provides the signal for synchronizing the
self-adhesive labeling units. One encoder can control
up to 4 units. In the case of a rotary labeling machine,
the encoder unit must be installed underneath the
base, making a size M8 hole as illustrated in the figure.
Refer to the tables GR-0015-C, P-00165-B and SK-
00130-A in the ASSEMBLY DRAWINGS document.
Important
If the primary diameter of the carousel gear differs
from the primary diameter of the plate centers,
construct the SK-0130-A gear with a
proportionately larger or smaller primary diameter.
IDM-01_007_0.tif
dandy roller
IDM-01_008_0.tif
reel carrier disk
IDM-01_009_0.tif
start photocell
