70

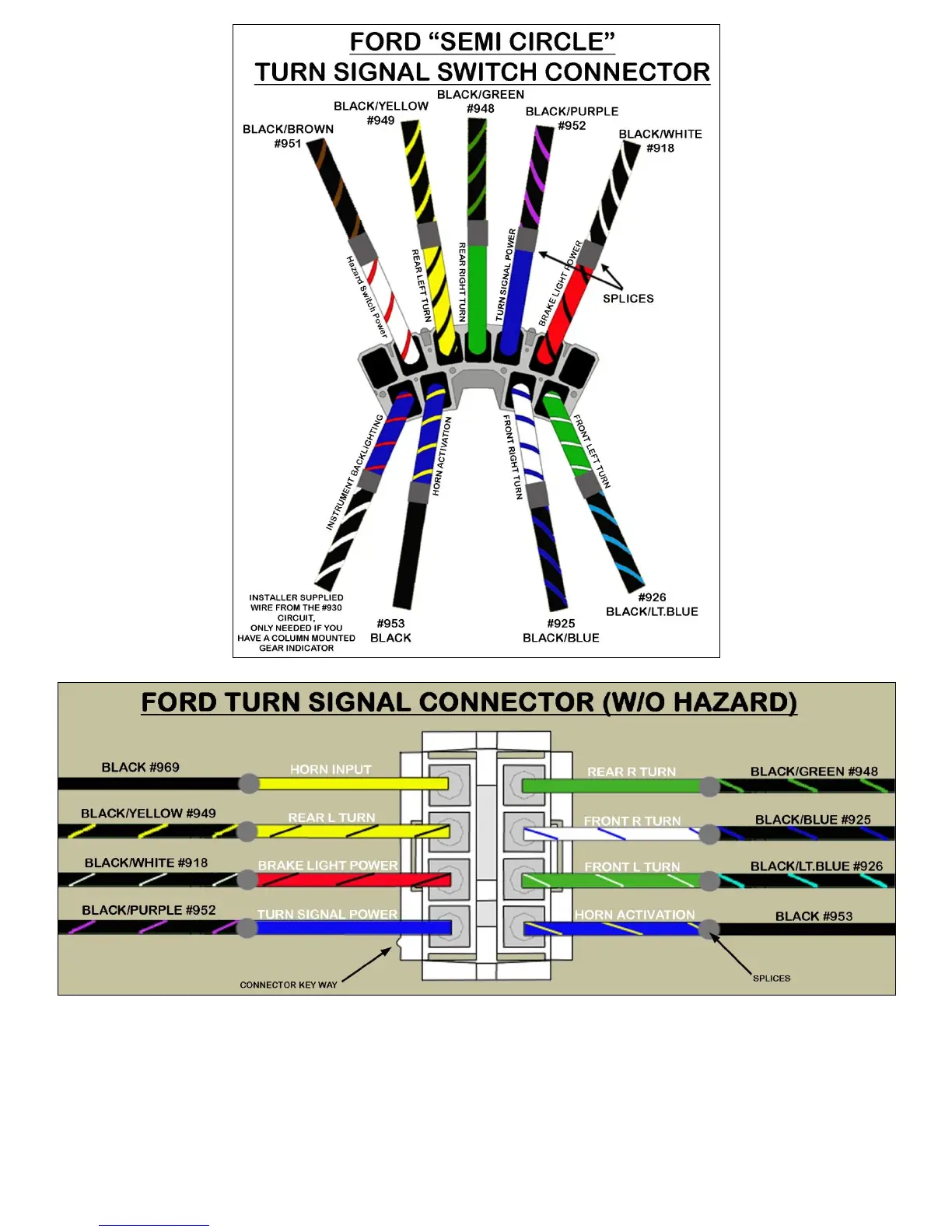

The diagrams above show splicing the wires from the 10309 to an installer
created pigtail from factory wiring.
