If using the 30120, kit in can be installed two different ways:
#1- This method takes no modifications to the 10309 chassis harness you are
installing or to the 30120 kit. This will make the flashers found on the fuse block of the
10309 nostalgia harness useless.
Connect the turn signal kit as the instructions provided with the
30120 indicate. Wires #951 & #952 of the 10309 chassis harness
will not be used and can be removed from the harness; they go to
the flashers found on the fuse block, which no longer have a
purpose
Using the fuse taps provided with the turn signal kit, switched
power can be sourced from the “WIPER/TURN” fuse and Battery
power for the flasher and hazard switch can be sourced from the
“TAIL LIGHTS/HAZARD” fuse. These fuses can be seen on page
16 of the first manual.
You cannot use #951 or #952 for these functions as they pass
through flashers and will provide interrupted power.

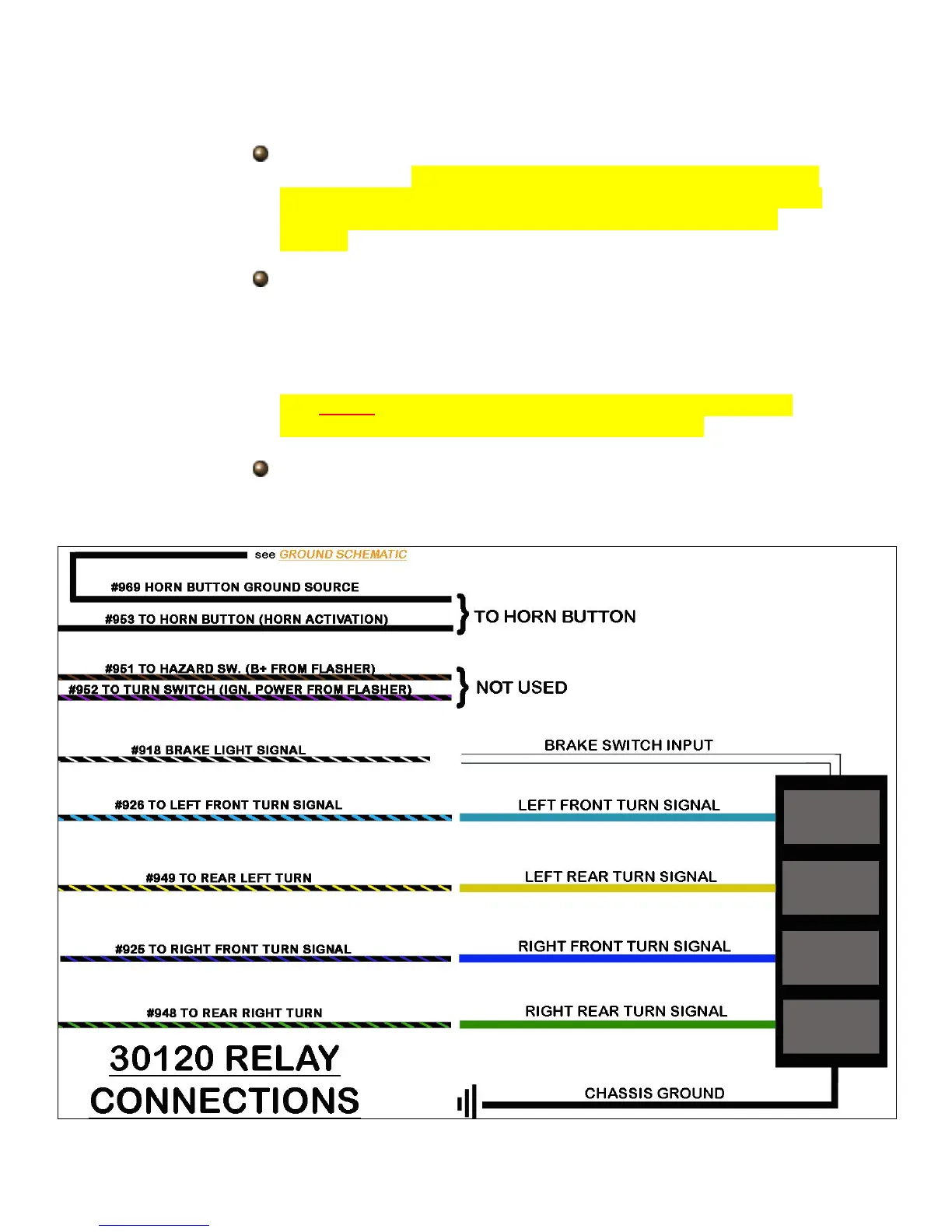

The turn signal wires of the 30120 Turn signal kit will connect to the
“TURN SIGNAL” section wires of the 10309 chassis harness as
shown below. Only connect #918 if you have integrated lights.
