#2- This method slightly modifies the 30120 turn signal/hazard switch kit and allows
you to use the hazard flasher and the #951 circuit of the 10309 Nostalgia harness.
Start by following the 30120 instructions by mounting the relays.
When you get to step #3 of the 30120 instructions, cut the purple
wire on the 30120 kit about 4”-6” away from the relays. This will
allow you to remove the flasher connector and red wire printed ”B+
CONSTANT SOURCE” from the 30120 kit.
Wire #951, the BLACK/BROWN wire, from the 10309 nostalgia
harness will now splice to the purple wire coming from the turn
signal relays, this will allow you to use the fuse block mounted
flasher instead of the inline flasher that comes pre-installed on the

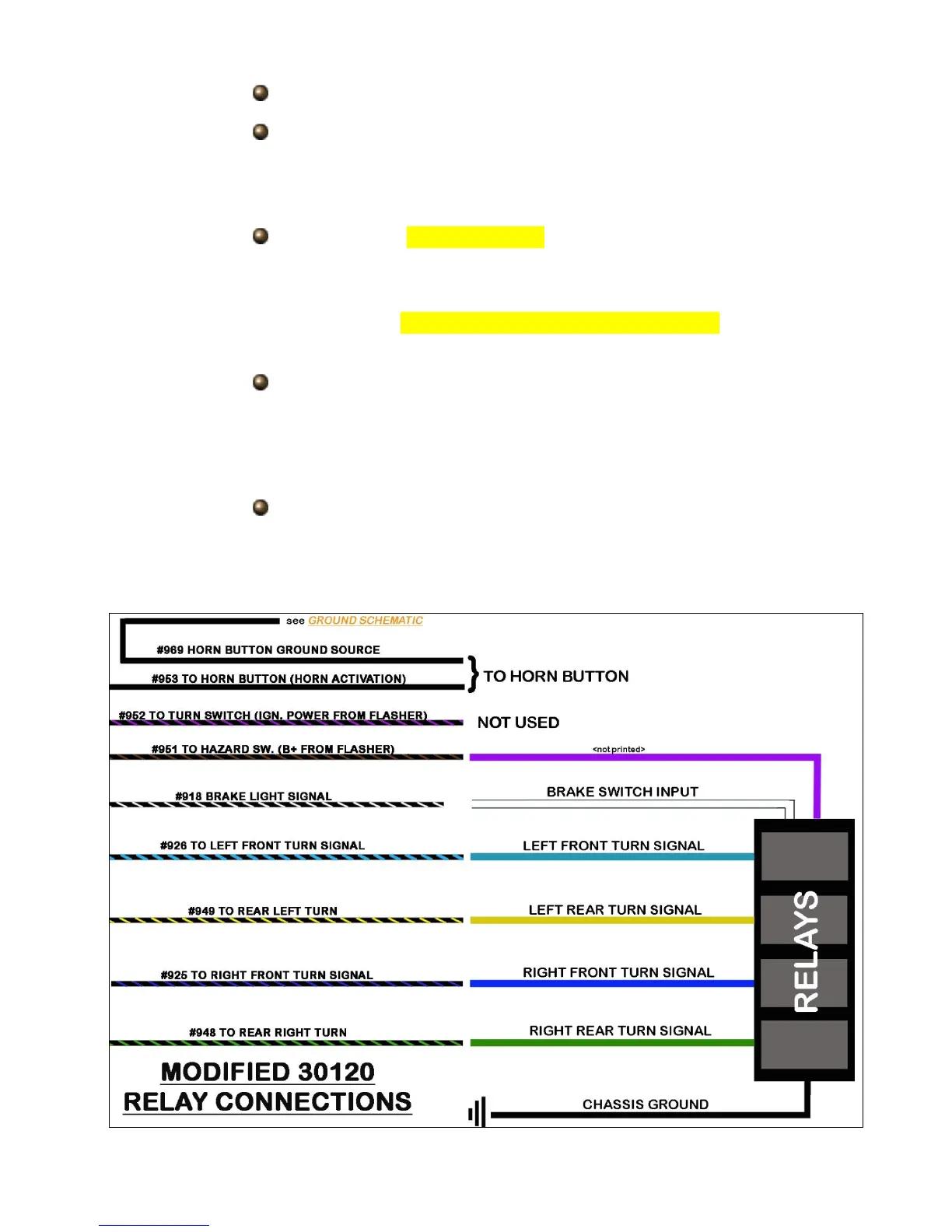

turn signal kit. The black/purple #952 will not be used. See the
diagram below.
Using the fuse taps provided with the turn signal kit, switched
power can be sourced from the “WIPER/TURN” fuse and Battery
power for the flasher and hazard switch can be sourced from the
“TAIL LIGHTS/HAZARD” fuse. These fuses can be seen on page
16 of the first manual.
The remainder of the turn signal kit will connect as it’s instructions
indicate. The turn signal wires of the 30120 Turn signal kit will
connect to the “TURN SIGNAL” section wires of the 10309 chassis
harness as shown below. Only connect #918 if you have integrated
lights.
