88

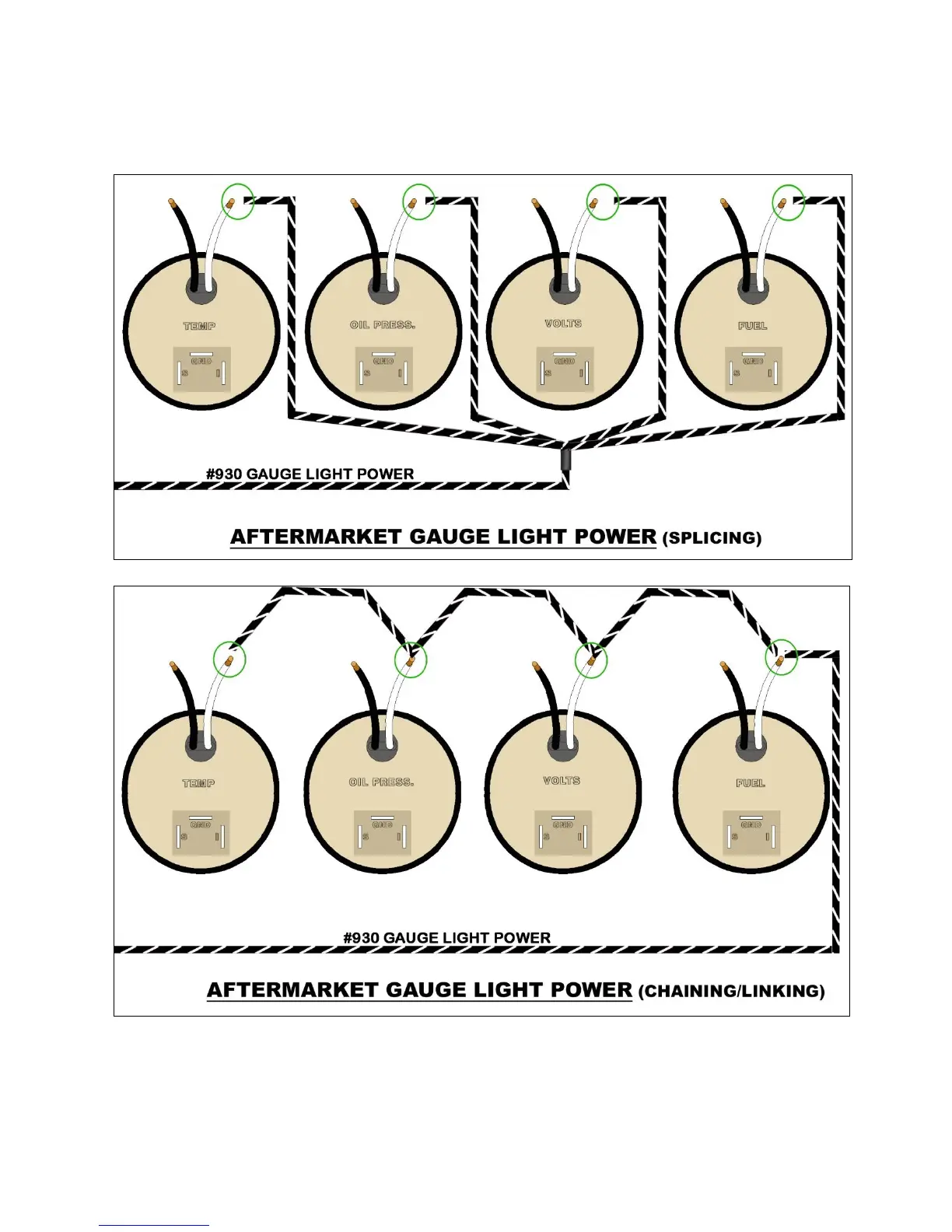

Gauge light power will be supported by the Black/White #930 wire. This wire will
connect to one of the leads for the gauge light, or to the gauge light tab found on
gauges with LED backlighting. To make these connections you can splice from this
#930 wire to all the gauges or chain/jumper it all together.
