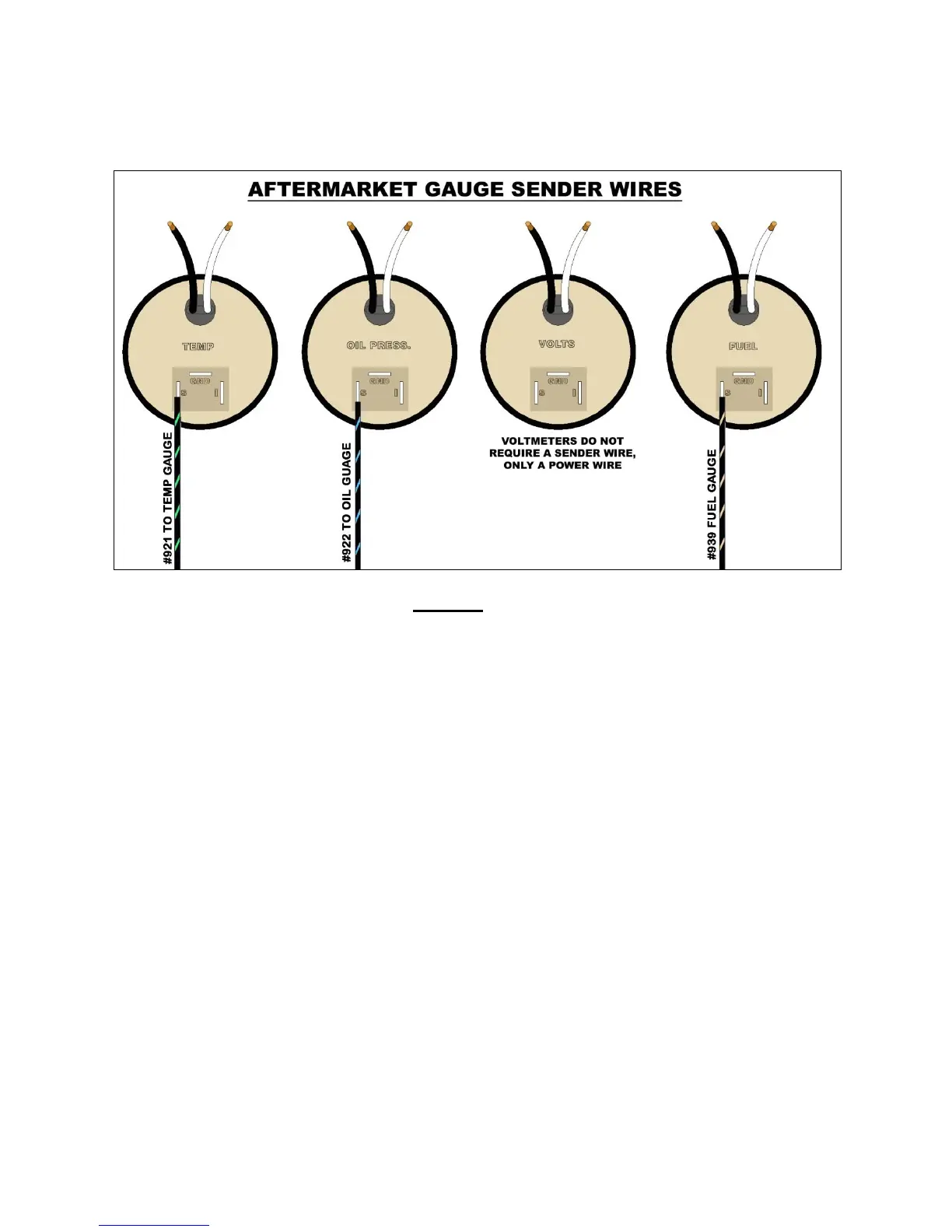

The last connections needing to be made will be the sending unit wires or signal
wires. These will be the wires which come from the temperature sending unit, oil
pressure sending unit, and fuel level sending unit. Not shown in the diagram, but also
provided in the Painless chassis harness is the Black/White #923 TACHOMETER
SIGNAL wire.
