Palas Fidas Frog - Device Overview

3Product description
10 3577-en-us_V1.1_08/17

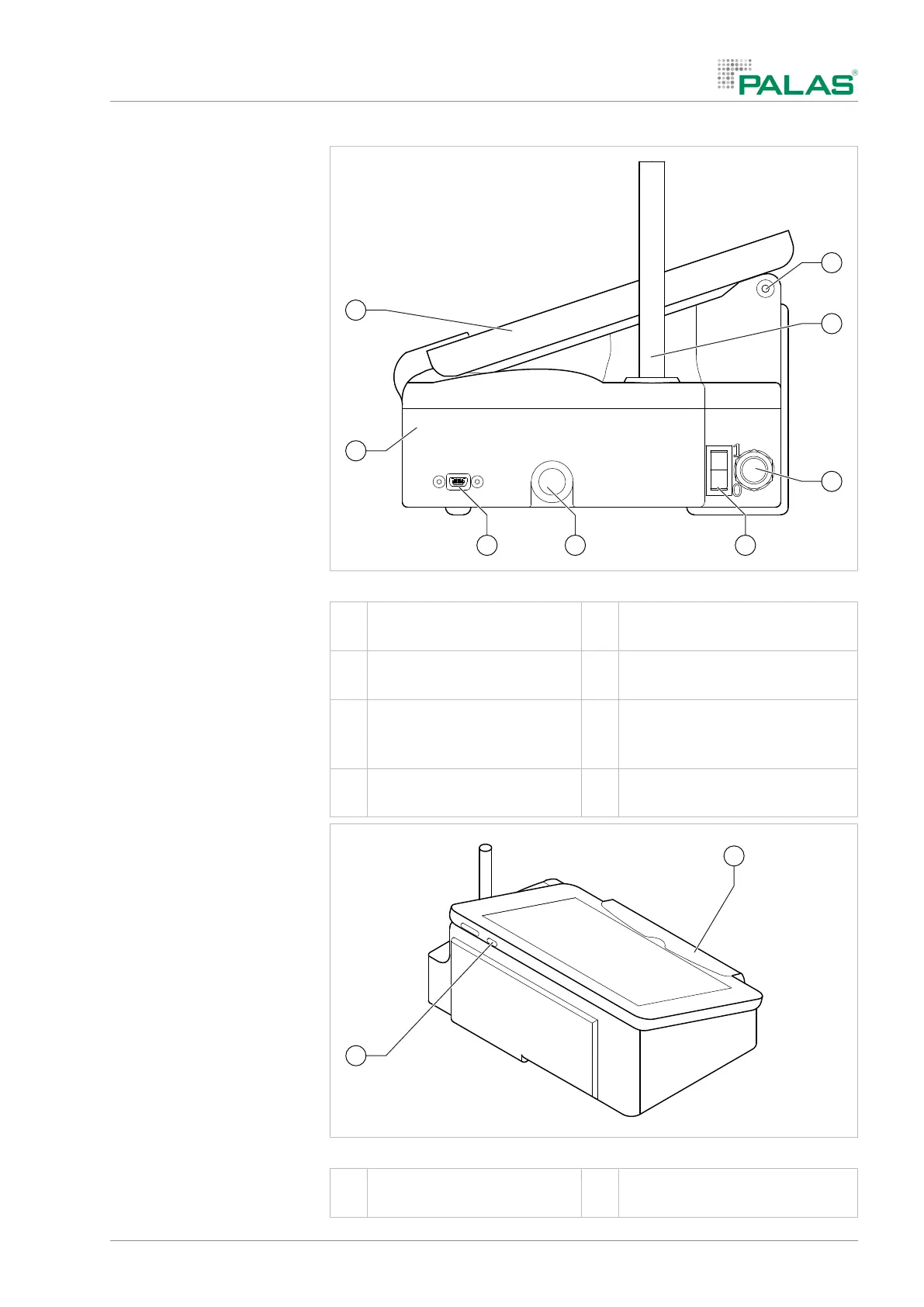

3.2 Device overview
1
2
3
456
7
8
Device overview (side view)
1 Control LED, measuring unit
on/off
2 Sample collection tube
3 Charging cable/mains cable
connection
4 Measuring unit on/off switch
5 Opening to insert the sample
collection tube for transporta-
tion and storage
6 Mini USB serial port
7 Measuring unit 8 Operating element (removable
tablet)
1
2
Device overview (rear view)
1 Docking/charging station for
operating element
2 Operating element switch (tablet)
on/off
