Palas Fidas Frog - Measuring Screen

4Overview of operating and display elements
3577-en-us_V1.1_08/17 15

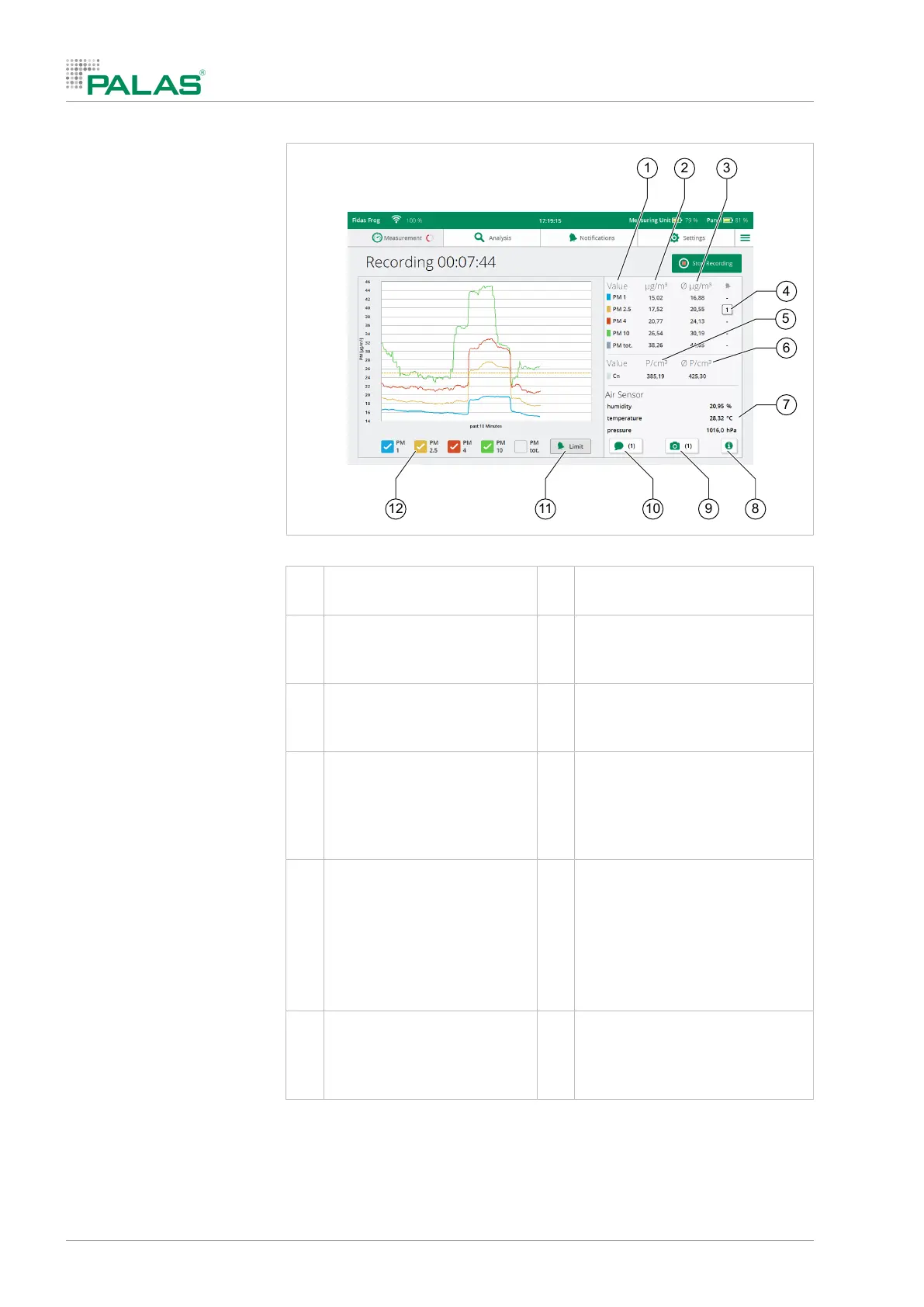

4.1.3 Measuring screen
1
4
6
7
89101112
32
5
Measuring screen
1 PM values (fractions) 2 Particle mass concentration
Current value
3 Particle mass concentration
Mean value since the start of
the measurement
4 Notification
Indicates exceeding the limit
value
5 Particle number concentra-
tion
Current value
6 Particle number concentration
Mean value since the start of the
measurement
7 Weather data
Weather data are not rele-
vant for the measurement.
They are displayed for infor-
mational purposes.
8 Information
General data for the measure-
ment, such as the start and dura-
tion of the measurement, estab-
lished limit values
9 Camera
• Procedure for taking pic-
tures related to the mea-
surement (brief instruc-
tion)
• Displays the pictures for
the measurement
10 Comments
• Comments can be entered for
the measurement
• Displays the pictures for the
measurement
11 Shows or hides the lines for
the limit values
12 Shows or hides the lines for the
measuring curves and, if applica-
ble, the corresponding limit val-
ues
