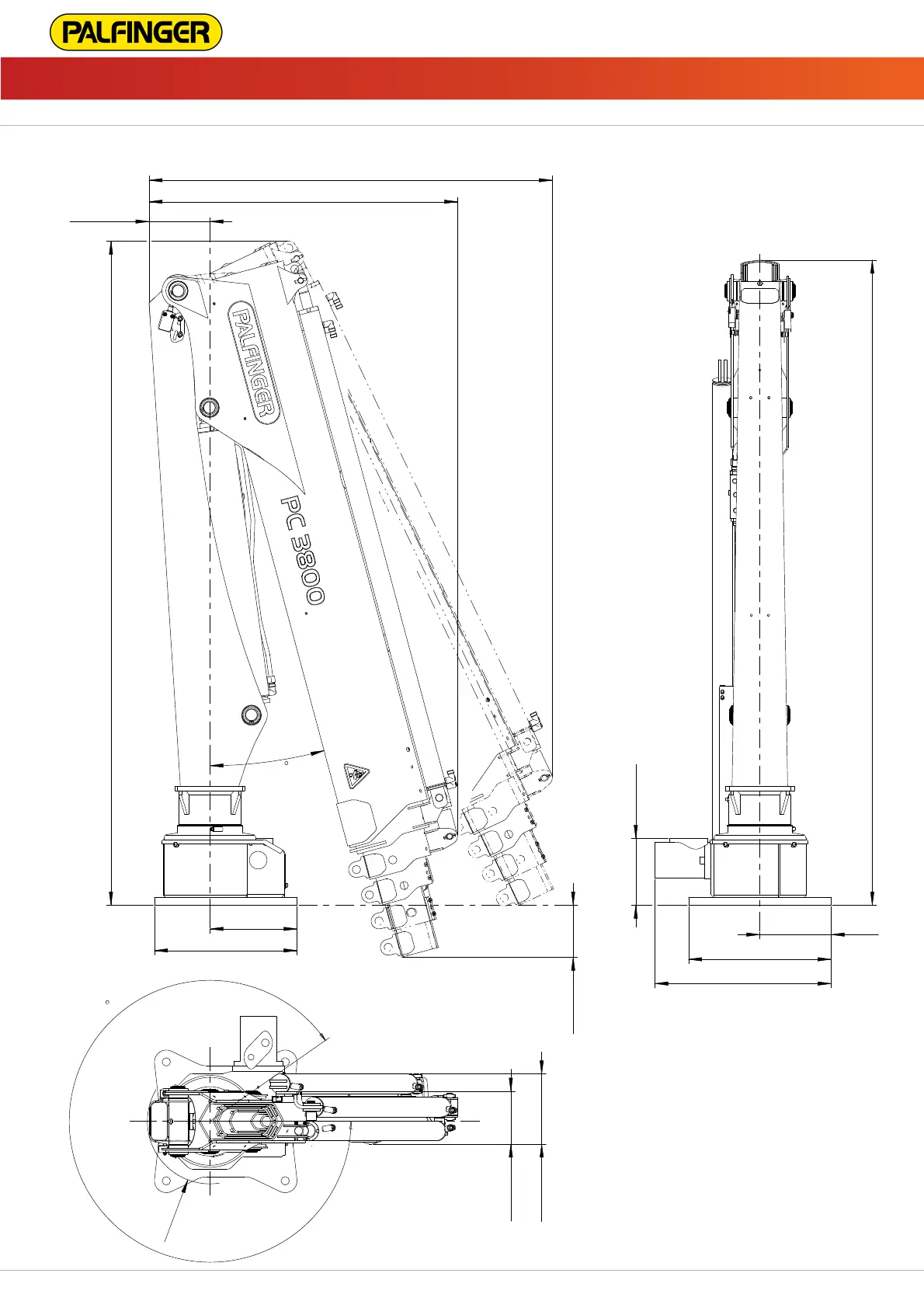

Palfinger PC 3800 - Transport Position Dimensions

1675 [65.94]
1018 [40.08] PC 3800 V2B
779 [30.65] PC 3800 A,V1A,B
153 [6.04]
360 [14.17]
220 [8.66]
min.
15
R158
[6.21]
169 [6.63]
180
[7.09]
360 [14.17]
445 [17.52]
131 [5.16]
1630 [64.17]
177 [6.95]
134 [5.28]
S026-STA_SKEL_LADE
Ansicht NEW_VIEW_1
Vereinfachte Darstellung: S025-STA
Snapshot/Explosion: S026-STA_ZUS
Ansicht NEW_VIEW_3
Vereinfachte Darstellung: S026-STA
Snapshot/Explosion: S026-STA_ZUS2
Ansicht NEW_VIEW_4
Vereinfachte Darstellung: S026-STA_ZUS_RKANSICHT
Snapshot/Explosion: S026-STA_ZUS_RKANSICHT
325
www.palfinger.com
PC 3800 JI010.02100
03/2015
Transport position
Subject to change, production tolerances have to be taken into account.
